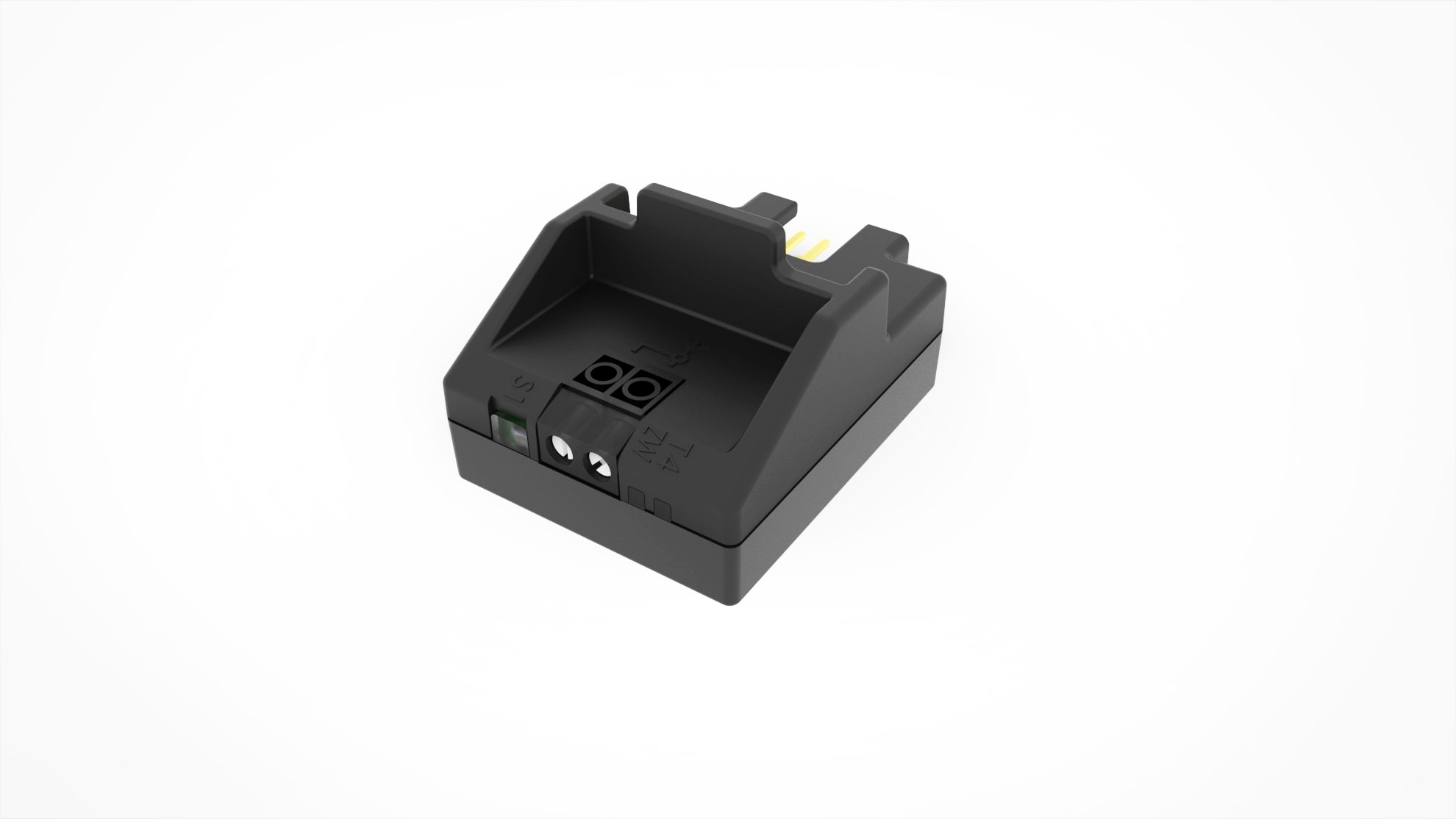

COMMAND_CLASS_CONFIGURATION_V4

Configuration V4

0x70

4

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_PROTECTION_V2

Protection V2

0x75

2

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_INDICATOR_V3

Indicator V3

0x87

3

COMMAND_CLASS_APPLICATION_STATUS

Application Status

0x22

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Firmware Update Meta-Data V5

0x7A

5

COMMAND_CLASS_SWITCH_MULTILEVEL_V4

Switch Multilevel V4

0x26

4

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association Group Information V3

0x59

3

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_BASIC_V2

Basic V2

0x20

2

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_VERSION_V3

Version V3

0x86

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

Manual_Primary_Lang

Product Manual

Communications Protocol

1

1

1

Lifeline

0x0001

Reports the device status to the Z-Wave gateway

31

Alarm configuration - 2nd slot

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. Default value [0x05, 0xFF, 0x00, 0x00](Water Alarm, any notification, no action). The 4 bytes must be converted to a single decimal value to be entered in the gateway sending the configuration parameter value. Example: Event: Home Security (0x07) Status: Motion Detected (0x08) Parameter: None (0x00) Action: Open (0x01) = 0x07080001 which is 117964801 decimal to be entered in the gateway.

2

4

0

4294967042

100597760

8

Where to find S2 DSK on product

Page 3 of 9 in the manual, point 4.2.03

2

Classic Exclusion

01. Set the Z-Wave gateway into remove mode (see the Z-Wave gateway’s manual)02. On the IBT4ZWAVE press and release the S1 button 3 times x3 S103. LEDs on the IBT4ZW AVE will start slow flashing alternately04. Wait for the removing process to end

5

Factory Reset Procedure

01. Press and hold the S1 button03. Wait 3 seconds04. LEDs will show adding and antenna status (Table 1 in manual) for 3 seconds05. LEDs will turn off for 3 seconds06. LEDs will show selected antenna (Table 2 in manual) for 3 seconds07. When both LEDs light up simultaneously, release the button08. Press and release the S1 button09. Both LEDs will flash once at the end of the procedure

1

Classic Inclusion

Install the external antenna before powering the device and adding to the Z-Wave network for the device to automatically detect and enable it (use only antennas and cables compliant with technical specification).01. Set the Z-Wave gateway into adding mode (see the Z-Wave gateway’s manual)02. On the IBT4ZWAVE press and release the S1 button 3 times x3 S103. LEDs on the IBT4ZW AVE will start slow flashing alter nately04. If you are adding in Security S2 Authenticated, input the underlined partof the DSK (label on the box) DSK: XXXXX-XXXXX-XXXXX-XXXXX XXXXX-XXXXX-XXXXX-XXXXX05. When the adding process ends, the LEDs on the IBT4ZWAVE will show adding and antenna status (Table 1 in manual)

Access Control

Barrier operation (open/close) force has been exceeded

Access Control

Barrier Safety beam obstacle status: Barrier safety beam obstacle

Access Control

Barrier control status: Barrier associated with non Z-Wave remote control

System

HW status: System hardware failure (manufacturer proprietary failure code provided)
