Product Recognition | |
|---|
Certification Number | ZC12-21090309 |
|---|

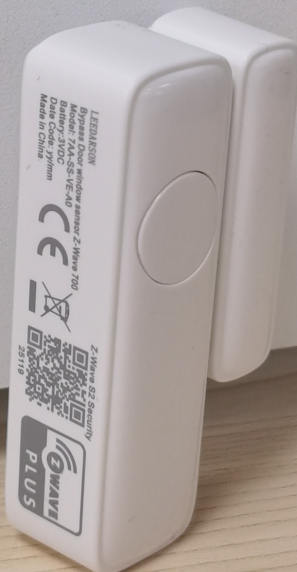

Name | Bypass Door Window Sensor Z-Wave 700 |
|---|
Short Description | Bypass Door Window Sensor Z-Wave ™ 700 |
|---|
Long Description | The Leedarson door window sensor is designed for use with scenes in home automation and security systems, the door window sensor lets you know when door or windows is opened and can trigger different actions in response to that open action (or close action). |
|---|
Brand | LEEDARSON |
|---|
Product Identifier | 7AA-SS-VE-A0 |
|---|
Product Line | Security |
|---|
OEM Version | HW: 1 FW: 1.33 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.12.2 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0300 |
|---|
Product Type ID | 0x0301 |
|---|
Product ID | 0x0041 |
|---|
User Icon | 0x0c06 |
|---|
Installer Icon | 0x0c06 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V4 | Multi-Channel Association V4 | | 0 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_English | Product Manual in English | | Manual_Primary_Lang | Product Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | New Group 1 is a Lifeline group | 2 | 5 | 0 | On/Off control | 0x7107 | New Group 2 is a On/Off control function |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | 7210Range | Set the range about magnetic field
Range:
0-the range of parameter 0x02 is 0x00000001-0x00004B00, the range of parameter 0x03 is 0x00000001-0x00002300.
1- the range of parameter 0x02 is 0x00000001-0x0002EE00, the range of parameter 0x03 is 0x00000001-0x00015E00.
| 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 1 | 0-the range of parameter 0x02 is 0x00000001-0x00004B00 and the range of parameter 0x03 is 0x00000001-0x00002300. 1- the range of parameter 0x02 is 0x00000001-0x0002EE00 and the range of parameter 0x03 is 0x00000001-0x00015E00. |
| 2 | 7210OP | 7210OP
Set the average magnetic field in ut
Range:
0x00000001-0x00004B00 or
0x00000001-0x0002EE00
| 2 | 4 | 1 | 19200 | 640 | From | To | Description |
|---|
1 | 19200 | the average magnetic field. 0x00000001 means that the magnetic field is 1 ut, 0x0002EE00 means that the magnetic field is 192000 ut |
| 3 | 7210PolHyst | Set the offset about magnetic field
Range:
0x00000001-0x00002300 or
0x00000001-0x00015E00
| 2 | 4 | 1 | 8960 | 200 | From | To | Description |
|---|
1 | 8960 | the offset of the magnetic field. 0x00000001 means that the magnetic field is 1 ut, 0x0002EE00 means that the magnetic field is 89600 ut |
| 10 | LowBatPrecent | This parameter defines a battery level as the “low battery”.
Range:
0x05-0x32
| 2 | 1 | 5 | 50 | 10 | From | To | Description |
|---|
5 | 50 | 0x0A defines the low battery level. 0x05 means that device will send a low level alarm report when the battery levle is less than 5%. 0x32 means that device will send a low level alarm report when the battery levle is less than 50%. |
| 254 | LockConfig | Enable/Disable configuration set
0 – Enable.
1 – Disable.
| 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 1 | parameter 0xFE disable/enable the configuration set function. value 0 means that any configuration set will be disabled, value 1 means that configuration set will be enbale,you can change the values of the configration parameters |
|
|
|---|
Texts | ID | Description | Value |
|---|
17 | Dynamic Capabilities | pls chekc the user manual on page 9 | 8 | Where to find S2 DSK on product | on the side of product | 1 | Classic Inclusion | 1. Power on your Door Sensor, set your Z-Wave controller into add/inclusion mode.
2. Trigger this action
3. LED will flash green during the inclusion, and then solid green for 2 seconds to indicate the inclusion is successful, otherwise the LED will solid red for 2 seconds in which you need to repeat the process form step 2 | 2 | Classic Exclusion | 1. Power on your Door Sensor, and let the Z-Wave primary controller into remove/exclusion mode.
2. Trigger this action.
3. LED will flash red during the exclusion, and then solid red for 2 seconds to indicate that the exclusion is successful, otherwise the LED will solid green for 2 seconds in which you need to repeat the process form step 2. | 4 | Wake-Up Procedure | On the network: Send Wake up notification, and LED will fast blink green during sending data. | 5 | Factory Reset Procedure | Reset Door Sensor to factory default.
LED will blink red faster and faster within 5 seconds and then keep solid red until the button is released. Device will reset itself to factory default by sending a “Device Reset Locally Notification” to gateway when the button is released. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | Door state: Window/door is open | Access Control | Door state: Window/door is closed | Home Security | (Refer to parameters): State idle | Home Security | Cover status: Tampering, product cover removed | Power Management | (Refer to parameters): State idle | Power Management | Battery maintenance status: Replace battery soon | Power Management | Battery maintenance status: Replace battery now |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
