Certification Number | ZC10-17015395 |
|---|

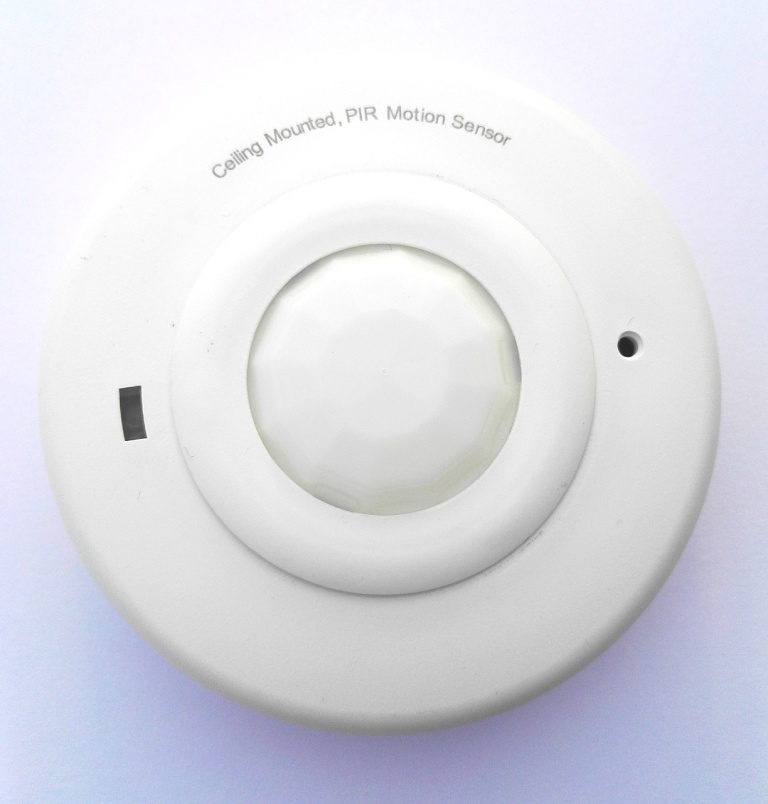

Name | Ceiling Mounted PIR Motion Sensor |
|---|
Short Description | It is a Ceiling Mounted PIR Motion Sensor. It can control association switch. |
|---|
Long Description | The PIR Motion Sensor ZWN-BPC is a Z-Wave enabled device and is fully compatible with other Z-Wave certified device from other manufacturers. With the ZWN-BDS to monitor the environment and provide hand-free lighting control, it can also trigger a Z-Wave enabled alarm when motion is detected and when there is movement within or across the detection of coverage, one triggering signal will be transmitted to all associated Z-Wave devices. |
|---|
Brand | Enerwave Green Automation |
|---|
Product Identifier | ZWN-BPC |
|---|
OEM Version | HW: 1 FW: 5.10 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ROUTING_NOFLIRS_NOMR |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x011A |
|---|
Product Type ID | 0x0601 |
|---|
Product ID | 0x0901 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Sensors | Value |
|---|
Motion/No Motion (Binary) |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 5 | 0 | Sensor Basic rep: Basic Report | 3 | 5 | 0 | Sensor Notifi rep: Notification Report | 4 | 5 | 0 | Sensor Basic set: Basic Set 0x00/0xFF | 1 | 1 | 0 | Z-Wave Plus Lifeline:
1 Battery Report
2. Notification Report
3. Device Reset Locally Notification
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | configure time | Configuration parameter can be used to adjust the delay time of sending basic set off command after motion sensor sends the basic set on when motion detected. Exmple, if the configure parameter is 3 , the nodes of association group 4 that have turn on ,will turn off after third times waking up. When the Wake_Up_Internal are 5 minutes ,the minimum time of turning on are 15 minutes. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 7 | n*WAKE_UP _INTERVAL (n:1-7) |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. When the controller is in add mode, press and hold the program button of ZWN-BPC for 2 second, and then the controller will verify the add. | 2 | Exclusion | 2. When the controller is in remove mode, press and hold the program button of ZWN-BPC for 2 second, and then the controller will remove it from the current Z-Wave network. | 5 | Factory Reset | 3. Once program button is pressed and hold for 10 second, the device will send a device reset locally notification to controller. Then clear all the module. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. | 4 | Device Wake-Up | Once short press the program button it will send singlecast wake up notification to controller devices. |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
0x02 |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
