Product Recognition | — |
|---|---|
Certification Number | ZC08-13040020 |

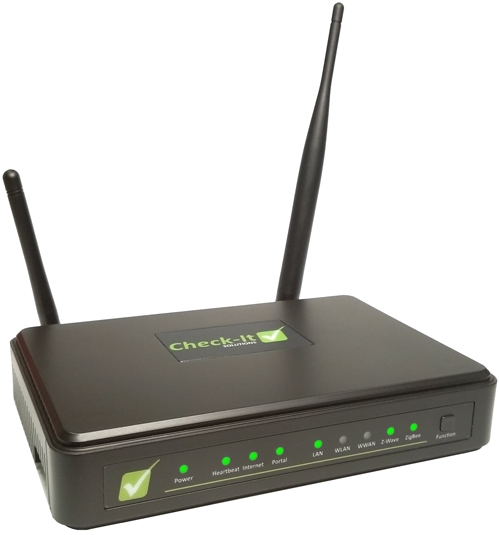

Name | Check-It CG-300 Controller |
Short Description | The CG-300 controller is an intelligent device within the Check-It Solutions Platform. The controller is a central point for all installed devices to be monitored and controlled. The CG-300 manages communication between installed devices and forwards necessary information to the secure hosted Check-It Solutions web portal. |
Long Description | The CG-300 controller is an intelligent device within the Check-It Solutions Platform. The controller is a central point for all installed devices to be monitored and controlled. The CG-300 manages communication between installed devices and forwards necessary information to the secure hosted Check-It Solutions web portal.
> All required software and communications in one device.
> Enterprise level controller with robust dual wireless performance (ZigBee™ & Z-Wave™).
> Communicate with industry standard BACnet & Modbus devices.
> Linux based operating system with integrated web server.
> Licensed Java™ technology from Oracle.
> Event-driven script execution.
> Flexible I/O scheduling.
> Visual indication for Power, LAN, WAN, Portal, Heartbeart, Zigbee, Z-Wave, Cellular.
> FCC & Industry Canada certified.
> Power efficient ~ 3 watts.
> (Optional) cellular data communications. |
Brand | Check-It |
Product Identifier | CG-300 |
OEM Version | Ver B |
Hardware Platform | ZM4101 |
Z-Wave Version | 6.02 |
Library Type | CONTROLLER_STATIC_NOSUC_NOREP |
Device Type | Not Z-Wave Plus |
Manufacturer ID | 0x0014 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | All Controllers, Gateway Controller |
Countries / Regions | United States of America |
Controlled Command Classes | |
Documents | |
Radio Range Z-Wave (m) | 40 |
