Certification Number | ZC12-20100128 |
|---|
Name | Chime+Siren |
|---|

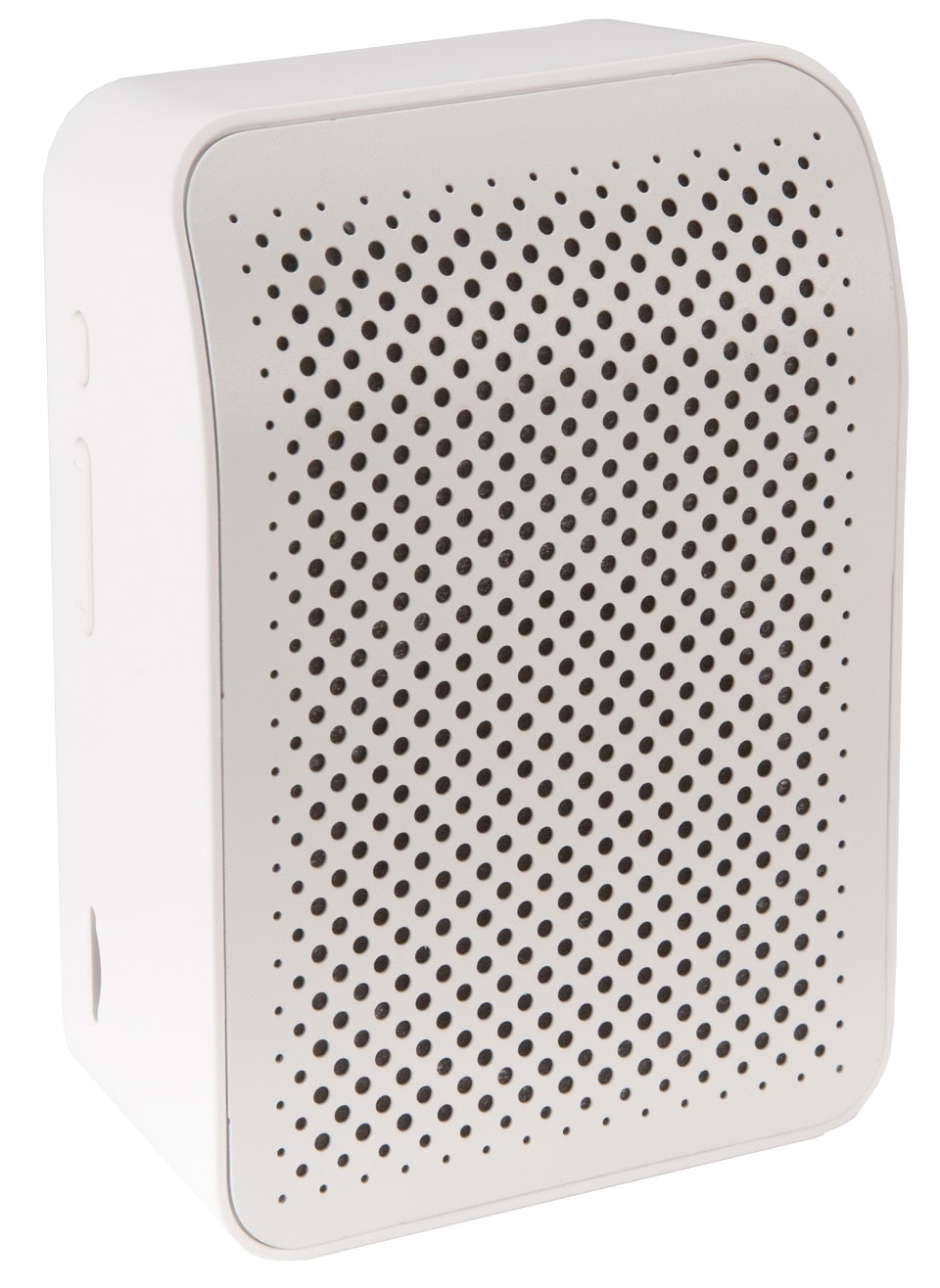

Short Description | The Ecolink Chime+Siren has 30 built in sound effects for alarms, notifications and doorbells. Load in your custom sounds via the microSD. |
|---|
Long Description | The Ecolink Chime+Sirenis a Z-Wave Plus enabled device designed to smoothly integrate into a Z-Wave Plus home automation network. This device will sound a siren or chime or doorbell on the automations created by the controller.
This easy to install Security siren has 30 different build in sound effects for different notifications and sirens.
It has a built in 24 hour battery back up in case of power outages or when used in a security system to prevent tampering to turn sirens off.
It has a microSD slot to allow custom sounds to be loaded onto the device. |
|---|
Brand | Ecolink |
|---|
Product Identifier | ISZW7-ECO |
|---|
Product Line | Z-Wave |
|---|
OEM Version | HW: 1 FW: 2.00:01.10 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.13.6 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Sound Switch DT |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x014A |
|---|
Product Type ID | 0x0007 |
|---|
Product ID | 0x3975 |
|---|
User Icon | 0x2202 |
|---|
Installer Icon | 0x2200 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices, Security Add-Ons, Security Systems |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SOUND_SWITCH | Sound Switch | 0x79 | 1 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_BATTERY_V2 | COMMAND_CLASS_BATTERY_V2 | | 0 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|

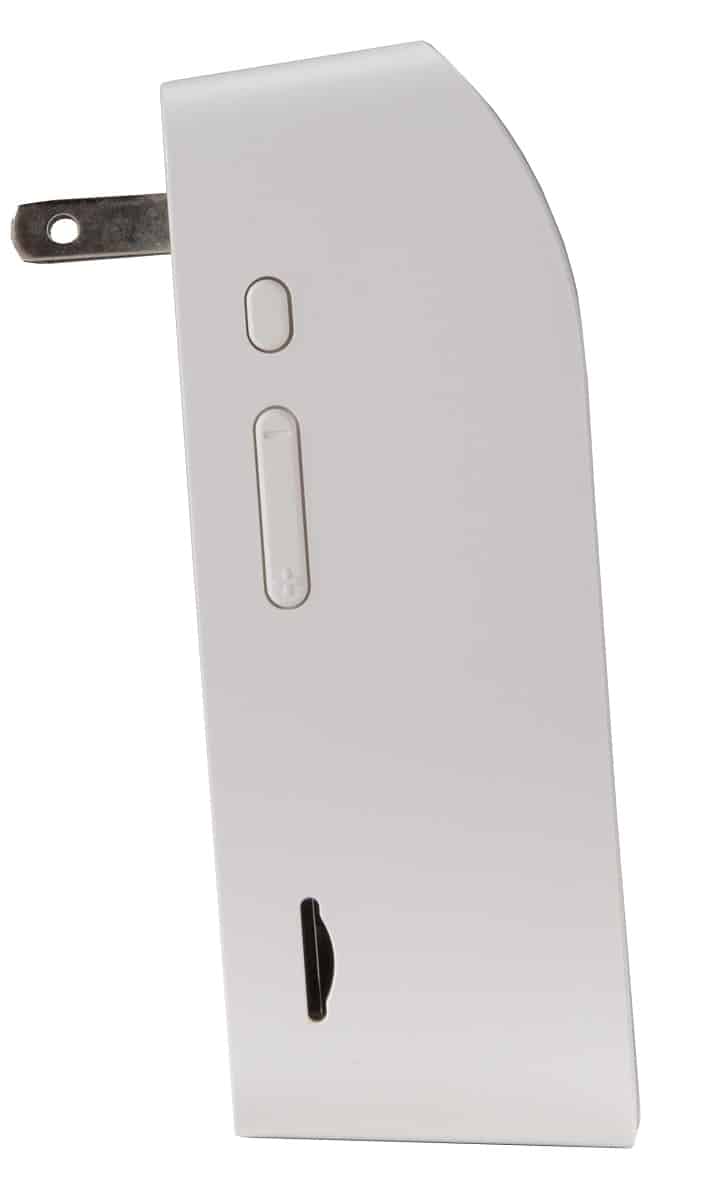

Image_Product_Supplemental_3 | Side Profile with volume control, test/learn, and microsd slot | | Adv_Manual | Advanced Information Product Manual | | Manual_Primary_Lang | Setup Guide | |
|
|---|
Features | |
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 1 | 8 | Lifeline | 0x3975 | This sensor has one Association group (Lifeline) with only one node for that group. Group one is a lifeline group who will receive unsolicited messages relating to AC and Battery power notifications, and Device Reset Locally notifications. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Flag Advanced | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Supervision Encapsulation | Encapsulate Unsolicited Notifications in Supervision Get requests. 0: Disabled 1: Enabled. | 3 | Yes | 1 | 0 | 1 | 1 | From | To | Description |
|---|
1 | 0 | enabled | 0 | 0 | disabled |
| 2 | Heartbeat Notification Timing | Seconds between automatic battery reports. | 2 | Yes | 4 | 120 | 86400 | 3600 | From | To | Description |
|---|
120 | 86400 | Seconds between automatic battery reports. |
| 4 | Sound Volume | Sound volume as a percentage for non-emergency sounds (See Configuration Parameter #6). 1 to 100, whereas 0 is Mute, and 255 is Restore last volume before Mute. | 2 | | 1 | 0 | 100 | 50 | From | To | Description |
|---|
0 | 100 | Sound volume as a percentage for non-emergency sounds |
| 1 | Default Sound | Map Basic Set of 0xFF to play the sound number set here. e.g. a 1 is Siren and a 5 is a Chime. | 2 | | 1 | 1 | 100 | 5 | From | To | Description |
|---|
1 | 100 | Different types of sounds |
| 6 | Emergency Sound Volume Adjustable | Enable Intrusion/Smoke/CO siren volume adjustable and mutable. 0 is Disabled (default). 1 is Enabled. | 3 | Yes | 1 | 0 | 1 | 0 | From | To | Description |
|---|
1 | 0 | enable alarm type sounds volume adjustments | 0 | 0 | disabled alarm type sounds volume adjustments |
|
|
|---|
Texts | ID | Description | Value |
|---|
4 | Wake-Up Procedure | the device is awake. It can receive commands all the time. | 8 | Where to find S2 DSK on product | Page 1 of advanced operational manual. Instruction set #2 on the product setup guide. | 1 | Classic Inclusion | Adding to a Z-Wave Network (Classic Inclusion Method)
Make sure the device has power. Press the Pair Button which is the smaller of the two buttons, and the device will enter classic inclusion mode which implements both classic inclusion with a Node Information Frame, and Network Wide Inclusion. During Classic Inclusion mode, the Green LED will blink two times every three seconds. When Classic inclusion times-out, the device will blink red and green. | 2 | Classic Exclusion | Removing a Sensor from a Z-Wave Network
To remove the device, place the controller into Remove or “Z-Wave Exclusion” mode. Press the smaller of the two buttons (Add/Test) following the same procedure to add for removal. Upon successful removal, the device’s red led will come on solid for 1 second. Note: Any Z-Wave Inclusion Controller can remove a Z-Wave device regardless of manufacturer or which network the device is currently added to. | 5 | Factory Reset Procedure | Factory Default
Please use this procedure only when the network primary controller is missing or otherwise inoperable.
To restore the device back to factory settings and remove it from any Z-Wave network. Hold the Pair button for 10 seconds. During the 10 seconds of continuing to hold the Add/Test button the green LED with flash, and after 10 seconds the red LED will come on solid for 1 second indicating that the factory default of the device has been successful, and the device is ready to add back into a Z-Wave network. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | Mains status: AC mains disconnected | Power Management | Mains status: AC mains re-connected | Power Management | Battery load status: Battery is charging | Power Management | Battery level status: Battery is fully charged | Power Management | Battery level status: Charge battery soon | Power Management | Battery level status: Charge battery now | System | SW status: System software failure (manufacturer proprietary failure code provided) |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
