Product Recognition
Certification Number	ZC10-17045551

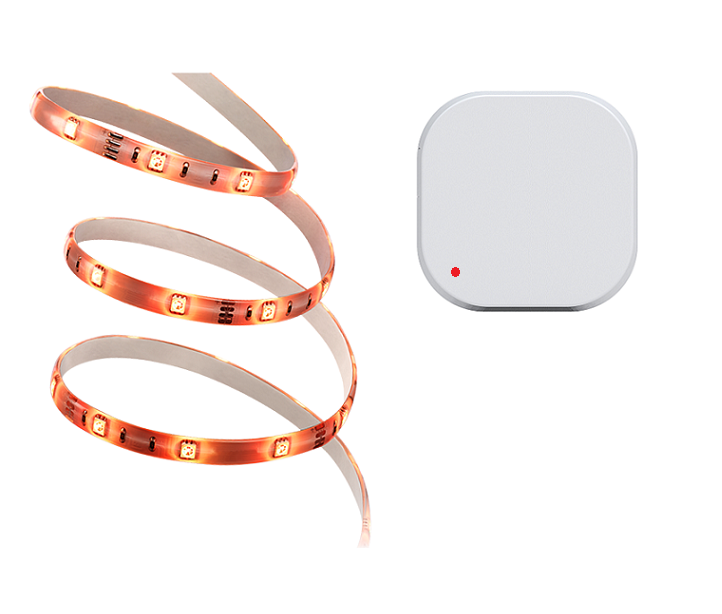

Name	Color Strip
Short Description	Oomi Color Strip is a low-cost Z-Wave LED Strip module which allows control (on/off/dim) with the use of Z-Wave.
Long Description	Oomi Color Strip is a multi-coloured LED Strip which allows control (on/off/dim/colour change) via wireless Z-Wave commands. The Color Strip can also communicate securely via AES 128 wireless Z-Wave commands and supports Over-The-Air (OTA) firmware upgrades.
Brand	Oomi
Product Identifier	FT121-A
OEM Version	HW: 121 FW: 1.01
Hardware Platform	ZM5101
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x016A
Product Type ID	0x0103
Product ID	0x0079
User Icon	0x0600
Installer Icon	0x0600
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 Switch Multilevel V2 0x26 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_SWITCH_COLOR Switch Color 0x33 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Oomi ColorStrip manual (FT121-A ) - 2.pdf
Features	Feature Values Firmware Updatable Value Updatable by Consumer by RF Switch Type Value Push Button Illuminated Z-Wave Scene Type Value Scene
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 The association group 1 is the Z-Wave Lifeline group. The Hail CC and Basic Report CC (configurable) can be sent to the associated nodes in association group 1. 2 5 0 In this group, the Basic Set, Switch Binary Set, Switch Multilevel Start Level Change, Switch Multilevel Stop Level Change, Switch Multilevel Set, Scene Activation Set commands would be sent to the associated nodes in association group 2 when the LED Strip receives the Basic Set, Switch Binary Set, Switch Multilevel Start Level Change, Switch Multilevel Stop Level Change, Switch Multilevel Set, Scene Activation Set commands from the main controller.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 40 Colorful mode configuration. Colorful mode configuration. 0 1 0 0 0 From To Description 3 3 Fade out and fade in (Red). 1 1 Rainbow mode. 2 2 Mutil color mode. 4 4 Fade out and fade in (Green). 5 5 Fade out and fade in (Blue). 252 Enable/disable Lock Configuration Enable/disable to lock Configuration parameters. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable 255 Reset the Color Strip Reset the Color Strip to factory default. 0 4 0 0 0 From To Description 0 0 Reset all configuration parameters to factory default settings 1431655765 1431655765 Reset the Color Strip to factory default. 80 To set whcih notification can be sent to the associated devices (Group 1) when the state of LED Bulb is changed. To set whcih notification can be sent to the associated devices (Group 1) when the state of LED strip is changed. 0 1 0 0 1 From To Description 3 3 Haill CC when pressing the Action Button to change its state 0 0 Nothing 1 1 Hail CC 2 2 Basic CC report. 112 Set the Dimmer mode. Set the Dimmer mode. 0 1 0 0 0 From To Description 0 0 Parabolic curve mode 1 1 Index curve mode 2 2 (Parabolic + Index)/2 mode 3 3 Linear mode
Texts	ID Description Value 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, press the Action Button on the LED Strip Controller. 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, press the Action Button on the LED Strip Controller. 5 Factory Reset Press and hold the Action Button on the LED Strip Controller for 20 seconds and then release it. Use this procedure only in the event that your primary network controller is missing or inoperable. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
Supports NWI	Yes
Supports Explorer Frames	Yes
