ZC10-18066148

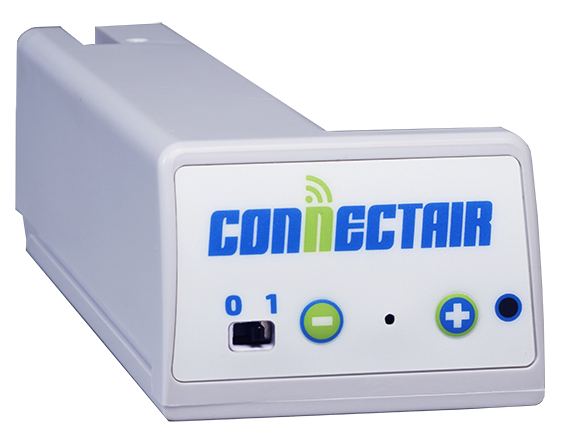

Connectair Module

Connects Convectair's compatible heaters to the Connectair ecosystem, in complete simplicity. The Connectair Module is currently compatible with ConvectAir's Allegro II models.

Control your Convectair heating With the Connectair Module integrated into your Convectair heater, adjust the comfort of your home according to your schedule and lifestyle, all at a distance and at all times. Once included in the ecosystem, the Connectair app and Controller allow you to control and make changes to your heating mode. Set your heaters to Comfort, Eco, Frost-protection or Standby mode, and then adjust the temperature setting as needed. It is also possible to locally change the set temperature of your heater by using the + and - buttons directly on the Connectair Module. Convectair compatible heaters The Connectair Module is currently compatible with Allegro II models. The Apéro (240V only) can also receive the information of the Module if it is connected by pilot wire to an Allegro II having the Module included. An open and flexible ecosystem The Connectair Module uses Z-Wave Plus technology, the most widely used wireless communication system in the world of connected objects. It is through this protocol that the Module communicates with the Connectair Controller. Secure Z-Wave Plus, the protocol used by Connectair is highly secure to protect communication between connected devices and the Controller. Moreover, Connectair uses the latest version of the Z-Wave library, the most secure on the market. The Connectair Module is equipped with a manual switch to prevent anyone from remotely shutting down the Convectair heaters. When turned on, this switch blocks the Standby mode. Inclusion The inclusion steps for the Module are simple and intuitive. In three clicks, your Module will be ready to be included into the ecosystem. Once included in the ecosystem, your heater will be controllable like the rest of the connected devices and subject to ecosystem features such as the scenarios. The Convectair warranty • 2 years against all manufacturing defects Due to our commitment to research and development, we reserve the right to change specifications without notice.

Connectair

7440-MC-FS

HW: 255 FW: 1.02:01.00

ZM5202

6.71.03

SLAVE_ENHANCED_232

Thermostat - HVAC

ROLE_TYPE_SLAVE_ALWAYS_ON

0x0369

0x0100

0x0101

0x1200

0x1200

US: 916.00MHz, 908.40MHz

Thermostats

United States of America

S2_UNAUTHENTICATED

Yes

Yes

40
