Product Recognition | |
|---|
Certification Number | ZC10-17045532 |
|---|

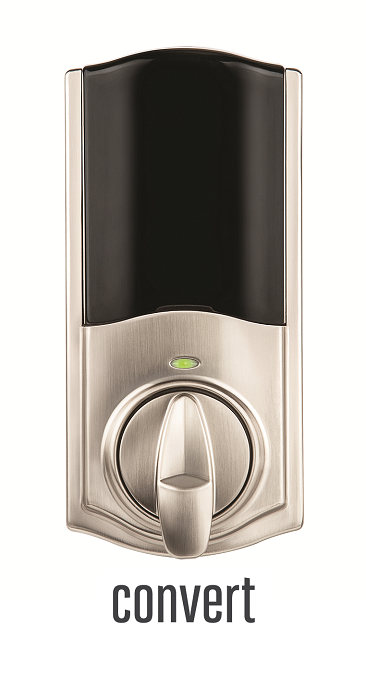

Name | Convert |
|---|
Short Description | Smart Lock Conversion Kit |
|---|
Long Description | Kwikset®, the leader in residential security, introduces the Smart Lock Convert Kit with Z-Wave.
Extend your smart home system to your current deadbolt, enabling your existing deadbolt to wirelessly communicate with your smart home or security system
Dramatically reduced, all-metal interior
Works with existing select single cylinder deadbolts |
|---|
Brand | Kwikset |
|---|
Product Identifier | 914C |
|---|
OEM Version | HW: 4 FW: 4.45:70.07 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.08 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0090 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0446 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 | COMMAND_CLASS_ANTITHEFT_V2 | Anti-Theft V2 | 0x5D | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Type | | Door Lock Type | Value |
|---|
Deadbolt Motor Attachment |
| Communications Protocol | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Battery Quantity | | Supported Notification Types | Value |
|---|
Access Control | Power Management |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 5 | 0 | This group will provide all Notification reports as described for the Lifeline. This group allows other controllers, other than the lifeline, to receive these types of unsolicited messages as well. | 1 | 1 | 0 | Z-Wave Plus Lifeline
Supports the following types of unsolicited messages:
Battery Report - sends periodic battery reports containing the battery percentage.
Door Lock Operation Report - upon power up, this message will be sent to allow the controller to sync up with the current lock status.
Notification Report - many notification types will be sent for status and alarms. The following notification types are supported: Access Control (V2) and Power Management (V2).
Device Reset Locally Notification - this message will be sent to notify the smart home controller that the lock is resetting back to factory defaults and will be leaving the network. |
|
|---|
Configuration Parameters | |
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Initiate the process to add the lock to your system at your smart home controller.
When prompted by your smart home system to add the lock, press button “A” on the lock interior one time. The red LED will illuminate when the lock enters Add Mode.
Please allow time for the controller to add the lock to your system. | 2 | Exclusion | Follow your smart home system’s instructions to remove the lock from the network. When prompted by the system, press button A” on the lock interior once. The red LED will illuminate when the lock enters Remove mode. | 5 | Factory Reset | A factory reset will delete all user codes associated with the lock and will remove itself from your smart home system.
Please only perform a factory reset when the primary controller is missing or inoperable.
To perform a factory reset, please perform the following:
1. Remove the battery pack
2. Press and HOLD the Program button while reinserting the battery pack.
3. Keep holding the button for 30 seconds until the lock beeps and the status LED flashes red.
4. Press the Program button once more. The status LED will flash green and red several times.
5. After a few seconds, the lock will initiate the door handing process. | 4 | Device Wake-Up | The electronic conversion kit remains asleep until an action occurs on the latch or a request is received from the RF side.
For the RF side, it will wake up every 1 second to check if there are any requests from your smart home controller. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle | Power Management | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
