Product Recognition
Certification Number	ZC10-16020006

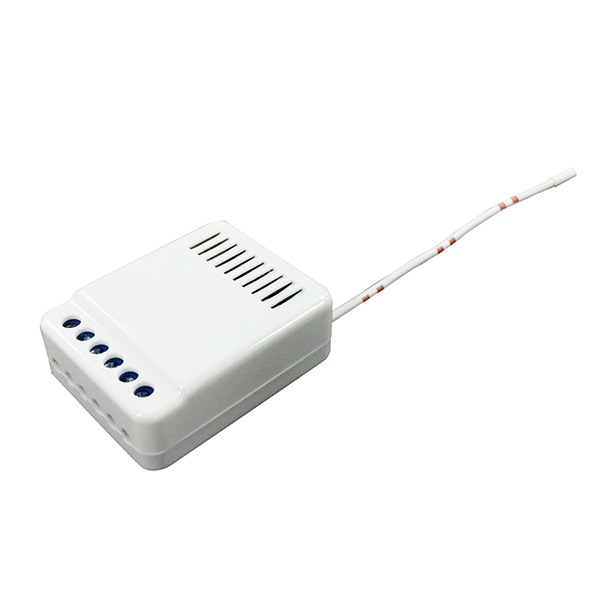

Name	Curtain Module
Short Description	This module will send open/close signal to the appliance that attached to this module by receiving Z-Wave™ signal from controller or manually switch. Our special design the curtain not only can be opened and closed but also can be stopped under the Multilevel Switch command on the controller. When the device is secure included into Z-Wave network, above communication will be encrypted. This module also acts as repeater (supporting FLiRS devices).
Long Description	* Size: 39.5x 50 x 19 mm * Open/Close; UP/DOWN USE * Working Voltage: DC 100V-230V * Relay Normal Output: 8A (max) * Negative Relay Output * Wired & Terminal Type available
Brand	Vision
Product Identifier	ZW4111EU-5
OEM Version	02
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Window Covering - Pos/End Aware
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0109
Product Type ID	0x2018
Product ID	0x1805
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ZW 4111-5 Curtain (Screw Terminal) 20151124.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 5 Factory Reset Press Program Switch and power on till 5 seconds, ZW4111 will send the “Device Reset Locally Notification” command and reset to the factory default. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.) 1 Inclusion 3. For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into“inclusion” mode, and following its instruction to add the ZW4111 to your controller. To get in the “inclusion” mode, press the program switch 3 times or outer switch 1 / switch 2 to be included. NOTE: The red LED will flash if ZW4111 has not been included before or the red LED will be OFF. 2 Exclusion For “Exclusion” from (removing from) a network: Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZW 4101 / ZW4111 from your controller. Press the program switch or outer switch 1 / switch 2 3 times to be excluded.
Supports NWI	Yes
Supports Explorer Frames	Yes
