Product Recognition | |
|---|---|
Certification Number | ZC12-21020179 |

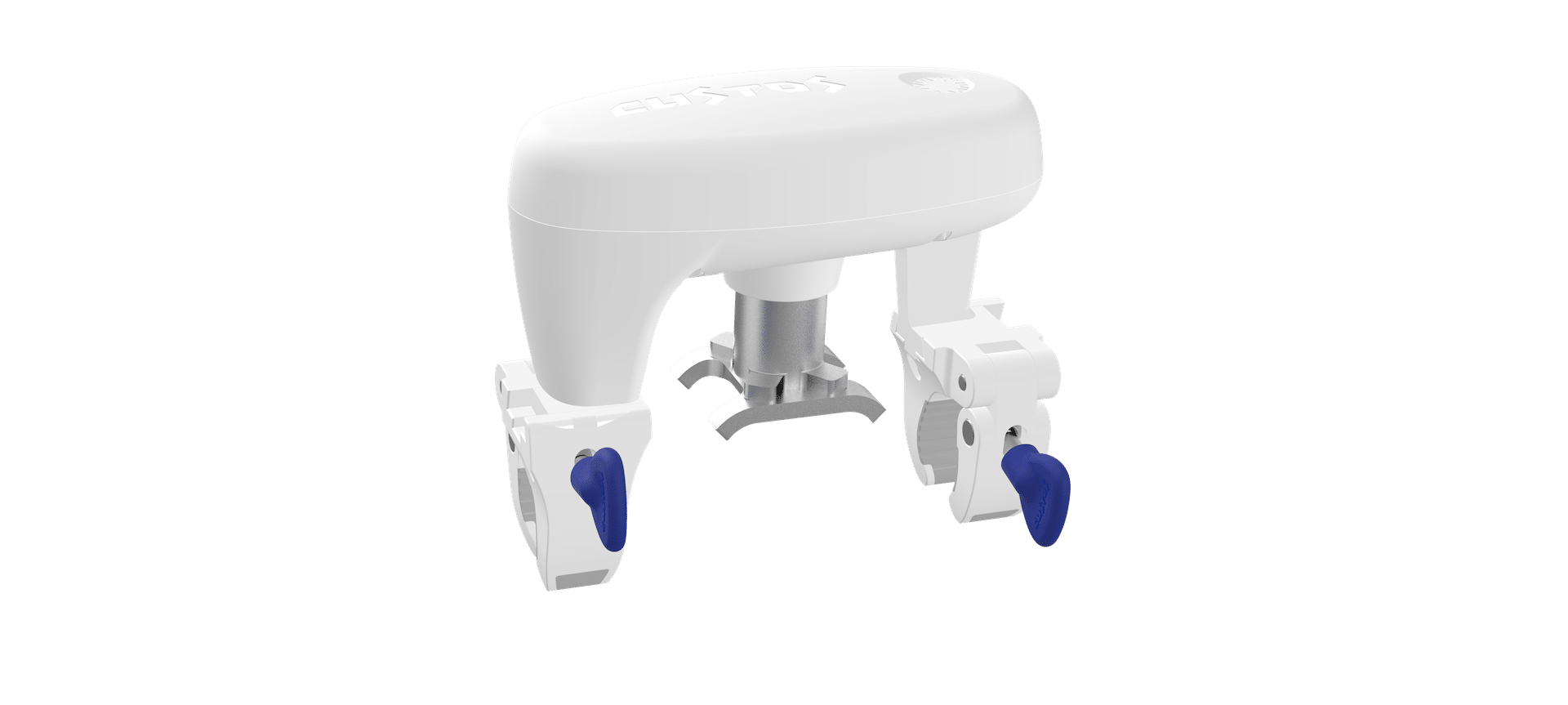

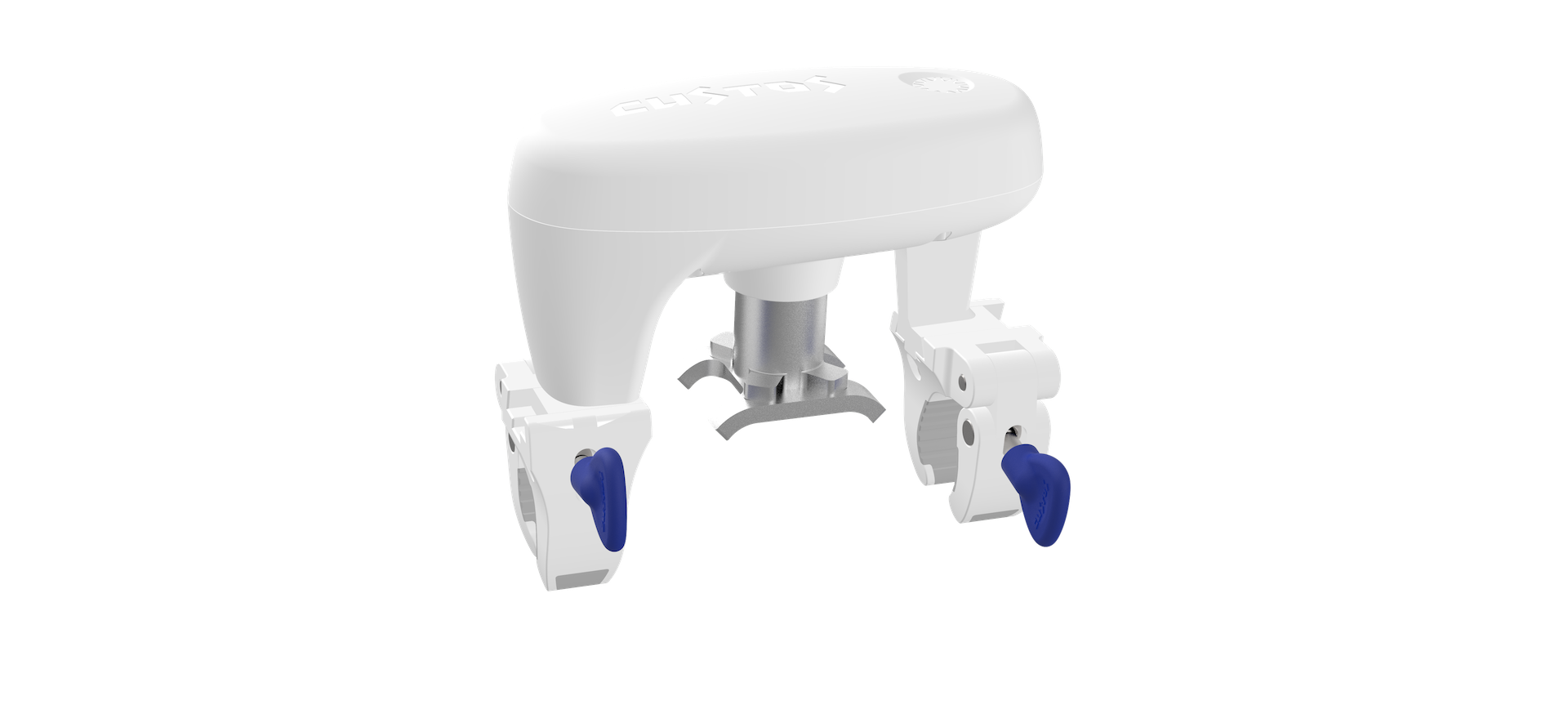

Name | Custos Ball Valve Servo |
Short Description | Custos Ball Valve Servo (BVS) is the most advance retrofit valve controller for real DIY |
Long Description | With patented mechanic design, Custos BVS can be installed by yourself on existing valve of your water main within 20 seconds without any tool, to provide fully automated shutoff against flooding. A super strong and advance mechanic combined with smart software algorithm allows the BVS to deal with even the toughest valve without compromising the integrity of your valve over the time.
Key features:
1. Hassle free bare hand install in 20 seconds
2. Outdoor proof, can be deployed on water main outside your house
3. Build-in local leak detection probe, can work standalone
4. Elbow friendly, adjustable clamp span can fit in smallest space or oversized valve up to 1.25 inches
5. Smart adaptive torque control and self calibration, real plug and play without any hassle for adjustment or calibration. |
Brand | Custos |
Product Identifier | BVSZWE |
Product Line | BVS |
OEM Version | HW: 3 FW: 3.03 |
Hardware Platform | ZGM130 |
Z-Wave Version | 7.13.2 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | Binary Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x0270 |
Product Type ID | 0x0101 |
Product ID | 0x000A |
User Icon | 0x1500 |
Installer Icon | 0x1500 |
Frequency Plans | EU: 869.85MHz, 868.40MHz |
Categories | Water Valves & Irrigation |
Countries / Regions | European Union |
Supported Command Classes | |
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported Notification Types | |
Supported Multilevel Sensors | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Supports SmartStart | Yes |
Radio Range Z-Wave (m) | 40 |
