| Product Recognition | |
|---|
| Certification Number | ZC10-16015008 |
|---|

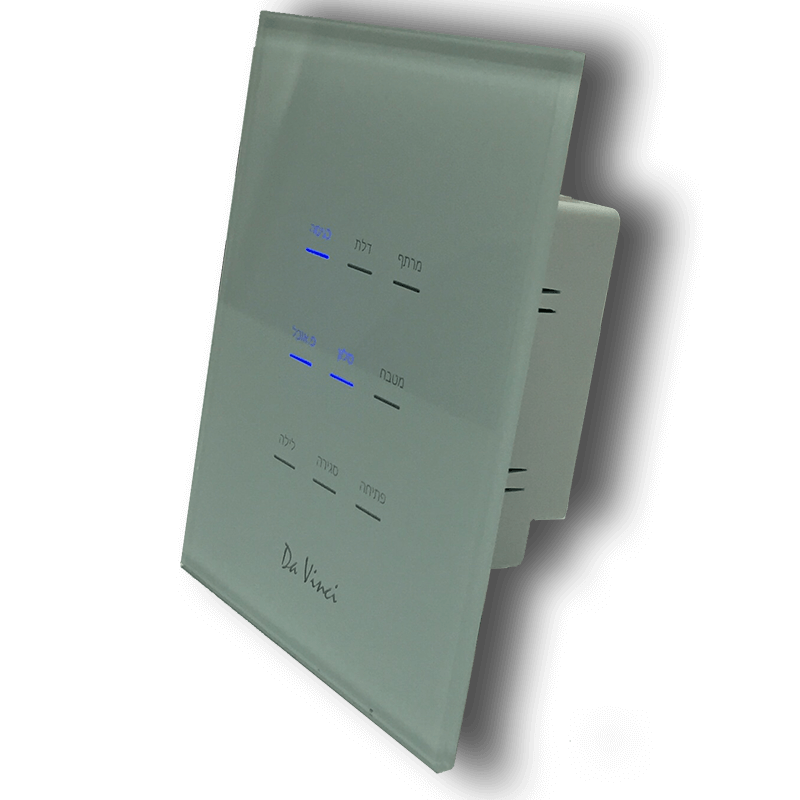

| Name | Da Vinci Wall Controller |
|---|
| Short Description | High voltage in wall controller |
|---|
| Long Description | The Da Vinci wall controller is a Multi Chanel Z-Wave device that contains up to 6 relays and up to 9 touch buttons that can be set to control either the relays or any other on/off (SWITCH_BINARY) Z-Wave device. |
|---|
| Brand | Contec - intelligent housing |
|---|
| Product Identifier | Da Vinci v3 |
|---|
| OEM Version | HW: 1 FW: 1.00 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | Wall Controller |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x025D |
|---|
| Product Type ID | 0x0100 |
|---|
| Product ID | 0x0100 |
|---|
| User Icon | 0x1600 |
|---|
| Installer Icon | 0x1600 |
|---|
| Frequency Plans | IL: 916.00MHz |
|---|
| Categories | All Lighting Devices, On/Off Switches/Devices, Lighting Accessories |
|---|
| Countries / Regions | Israel |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | | COMMAND_CLASS_CENTRAL_SCENE | Central Scene | 0x5B | 1 |
|
|---|
| Documents | | Category | Description | File |
|---|
| Manual_Primary_Lang | Product or Owner's Manual | Product.pdf |
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 17 | 5 | 0 | Sends a SWITCH_BINARY_REPORT command to all group members | | 1 | 5 | 0 | Z-Wave Plus Lifeline | | 2 | 5 | 0 | Sends a SWITCH_BINARY_SET command to all group members | | 3 | 5 | 0 | Sends a SWITCH_BINARY_REPORT command to all group members | | 4 | 5 | 0 | Sends a SWITCH_BINARY_SET command to all group members | | 5 | 5 | 0 | Sends a SWITCH_BINARY_REPORT command to all group members | | 6 | 5 | 0 | Sends a SWITCH_BINARY_SET command to all group members | | 7 | 5 | 0 | Sends a SWITCH_BINARY_REPORT command to all group members | | 8 | 5 | 0 | Sends a SWITCH_BINARY_SET command to all group members | | 9 | 5 | 0 | Sends a SWITCH_BINARY_REPORT command to all group members | | 10 | 5 | 0 | Sends a SWITCH_BINARY_SET command to all group members | | 11 | 5 | 0 | Sends a SWITCH_BINARY_REPORT command to all group members |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | Press button #1 for 5 seconds and release. | | 2 | Exclusion | Press button #1 for 5 seconds and release. | | 5 | Factory Reset | Double Press the following buttons in the
following order 8,1,3.
Use the reset procedure only when the primary controller is missing or inoperable. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
