Name

Da Vinci Wall Controller

Short Description

High voltage in wall controller

Long Description

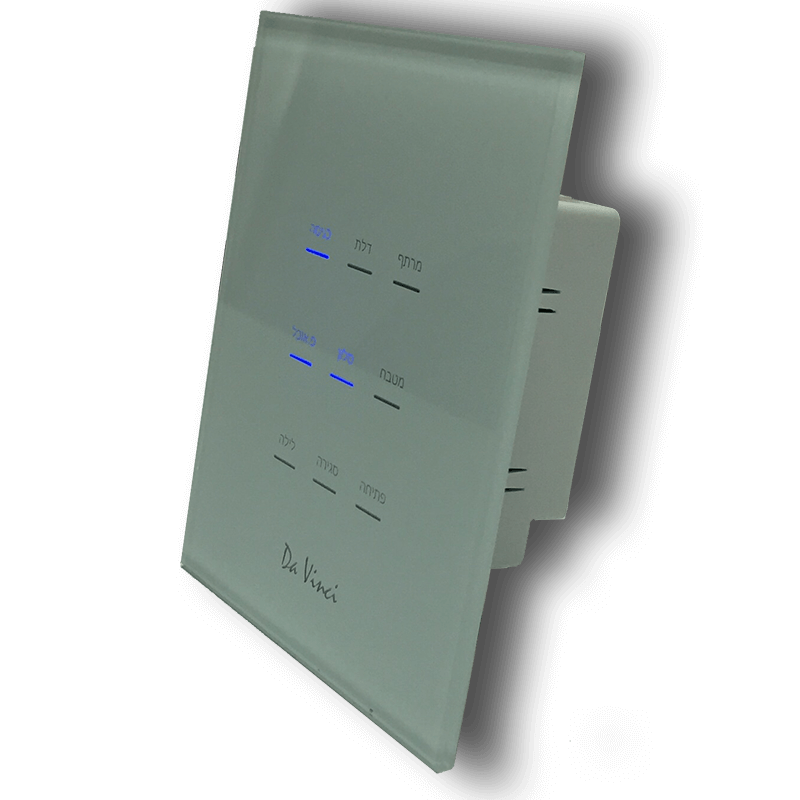

The Da Vinci wall controller is a Multi Chanel Z-Wave device that contains up to 6 relays and up to 9 touch buttons that can be set to control either the relays (On/Off switches and shutters) or any other on/off (SWITCH_BINARY) , shutter (MULTILEVEL_SWITCH) Z-Wave device.

Brand

Contec - intelligent housing

Product Identifier

Da Vinci v4

OEM Version

HW: 1 FW: 6.33:02.00

Hardware Platform

ZM5202

Z-Wave Version

6.51.08

Library Type

SLAVE_ENHANCED_232

Device Type

Wall Controller

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x025D

Product Type ID

0x0100

Product ID

0x0100

User Icon

0x1600

Installer Icon

0x1600

Frequency Plans

ANZ: 919.80MHz, 921.40MHz

Categories

Window Covering

Countries / Regions

Australia

Controlled Command Classes

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

EP 2 Type

End point 2 Type

From	To	Description
0	0	On/Off Switch
1	1	Blind up
2	2	Blind down

EP 2 Blind Duration

End point 2 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0

From	To	Description
3	127	Seconds

EP 2 Output

End point 2 Output – Relay number.

From	To	Description
0	0	Not used
1	6	Relay number

EP 3 Type

End point 3 Type

From	To	Description
0	0	On/Off Switch
2	2	Blind down
1	1	Blind up

EP 3 Partner Id

End point 3 partner id, Blind contain 2 end points (up/down) In case of type = Blind up/down: • Blind must contain Partner Id which is different than 0 and it must be unique In case of type = Switch: • Partner Id which is 0.

From	To	Description
1	9	End point Id

EP 3 Blind Duration

End point 3 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0

From	To	Description
3	127	Seconds

EP 5 Type

End point 5 Type

From	To	Description
0	0	On/Off Switch
1	1	Blind up
2	2	Blind down

EP 6 Blind Duration

End point 6 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0

From	To	Description
3	127	Seconds

EP 6 Output

End point 6 Output – Relay number.

From	To	Description
1	6	Relay number
0	0	Not used

EP 7 Type

End point 7 Type

From	To	Description
0	0	On/Off Switch
1	1	Blind up
2	2	Blind down

EP 1 Output

End point 1 Output – Relay number

From	To	Description
1	6	Relay number
0	0	Not used

EP 8 Blind Duration

End point 8 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0

From	To	Description
3	127	Seconds

EP 1 Type

End point 1 Type

From	To	Description
1	1	Blind up
2	2	Blind down
0	0	On/Off Switch

EP 1 Partner Id

End point 1 partner id, Blind contain 2 end points (up/down) In case of type = Blind up/down: • Blind must contain Partner Id which is different than 0 and it must be unique In case of type = Switch: • Partner Id which is 0.

From	To	Description
1	9	End point Id

EP 1 Blind Duration

End point 1 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0

From	To	Description
3	127	Seconds

EP 2 Partner Id

End point 2 partner id, Blind contain 2 end points (up/down) In case of type = Blind up/down: • Blind must contain Partner Id which is different than 0 and it must be unique In case of type = Switch: • Partner Id which is 0.

From	To	Description
1	9	End point Id
