Product Recognition | |
|---|---|
Certification Number | ZC10-18026026 |

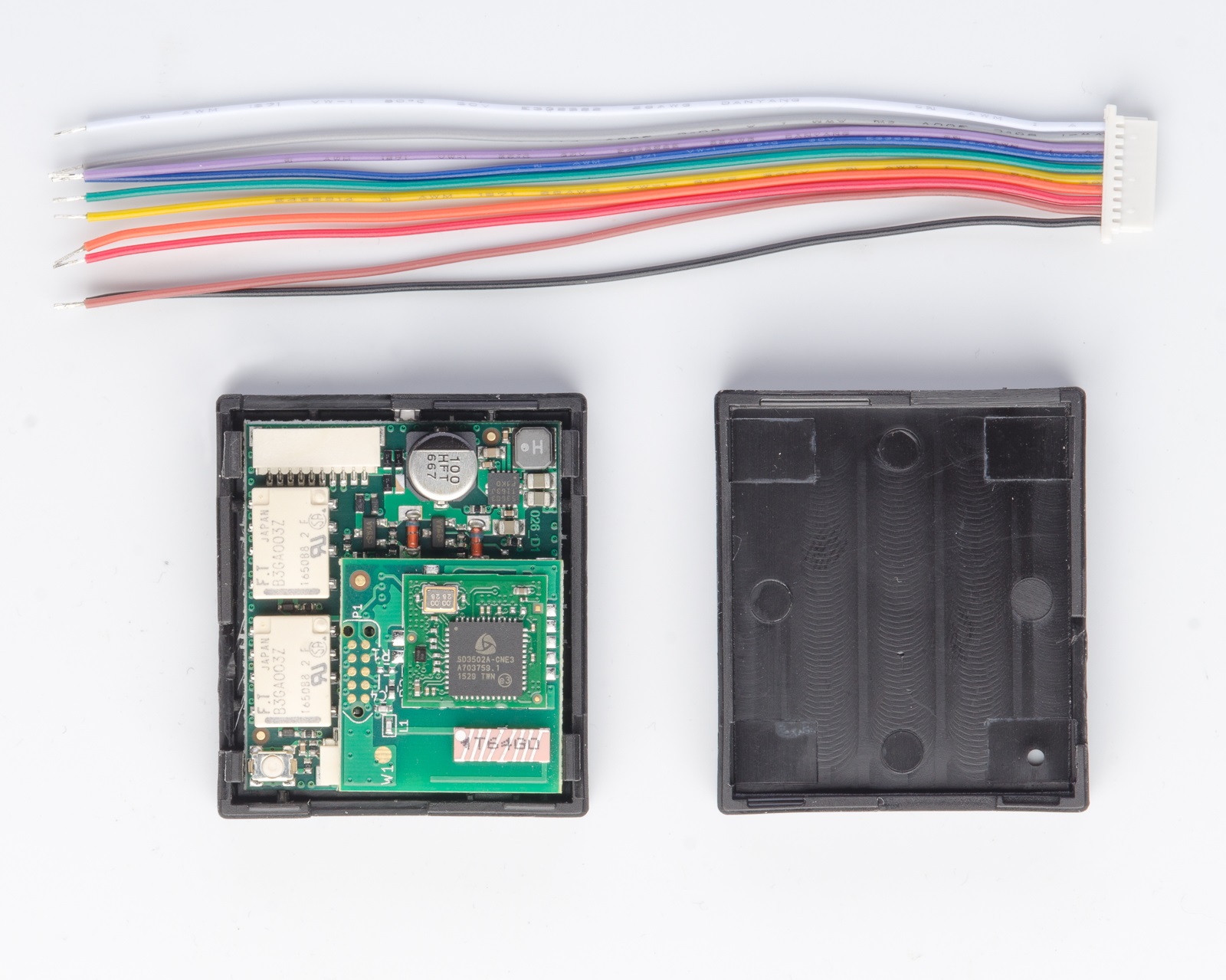

Name | Danalock Universal Module Version 3 |
Short Description | Operates garagedoors, doorstrikes, electromechanical or magnetic locks. |
Long Description | The Universal Model V3 supports:
- S0/S2 Z-Wave Security
- Can operate 3 outputs.
- Outputs can be delayed.
- Bluetooth Smart |
Brand | Danalock |
Product Identifier | UMV3-BTZE-EU |
OEM Version | HW: 2 FW: 1.03:00.06 |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.71.01 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | Door Lock - Keypad |
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
Manufacturer ID | 0x010E |
Product Type ID | 0x0009 |
Product ID | 0x0002 |
User Icon | 0x0300 |
Installer Icon | 0x0300 |
Frequency Plans | EU: 869.85MHz, 868.40MHz |
Categories | Locks |
Countries / Regions | European Union |
Supported Command Classes | |
S2 Classes | S2_ACCESS_CONTROL |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported Notification Types | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Is Flirs | Yes |
Radio Range Z-Wave (m) | 40 |
