Product Recognition | — |
|---|---|
Certification Number | ZC08-13120001 |

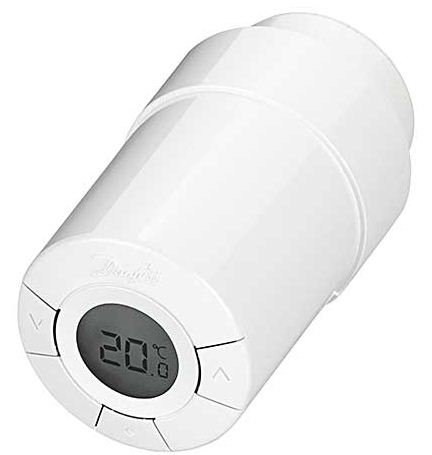

Name | Danfoss Living Connect Z Electronic radiator thermostat |
Long Description | living connect® is an Z-Wave controlled electronic radiator thermostat. It is controlled by either a Z-Wave compatible Controller or a central device called Danfoss LinkTM CC. The Danfoss LinkTM CC can also control hydronic and electrical floor heating and on/off switches in a building. living connect® uses Z-Wave wireless communication technology, is easy to install and is supplied with adapters for all thermostatic valves manufactured by Danfoss and most other radiator valve manufacturers.
living connect® is battery powered, compact and very easy to operate with only three buttons on the front.
Additionally the temperature can be set wirelessly to a certain setpoint. The device has a scheduler inside that allows to set up to 9 different setpoint for each day of a 7 day week. This means that energy saving is even achieved when the controlling device is offline or not working. Local buttons can always overwrite the scheduled setting. living connect® features an open-window function, which closes the valve if the temperature in the room is falling dramatically. |
Brand | Danfoss |
Product Identifier | 014G0013 |
OEM Version | v1.0 |
Hardware Platform | ZM3102 |
Z-Wave Version | 4.55.00 |
Library Type | SLAVE_ROUTING |
Device Type | Not Z-Wave Plus |
Manufacturer ID | 0x0002 |
Product Type ID | 0x0005 |
Product ID | 0x0004 |
Frequency Plans | EU: 869.85MHz, 868.40MHz |
Categories | Thermostats |
Countries / Regions | European Union |
Controlled Command Classes | |
Documents | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
