ZC10-16045052

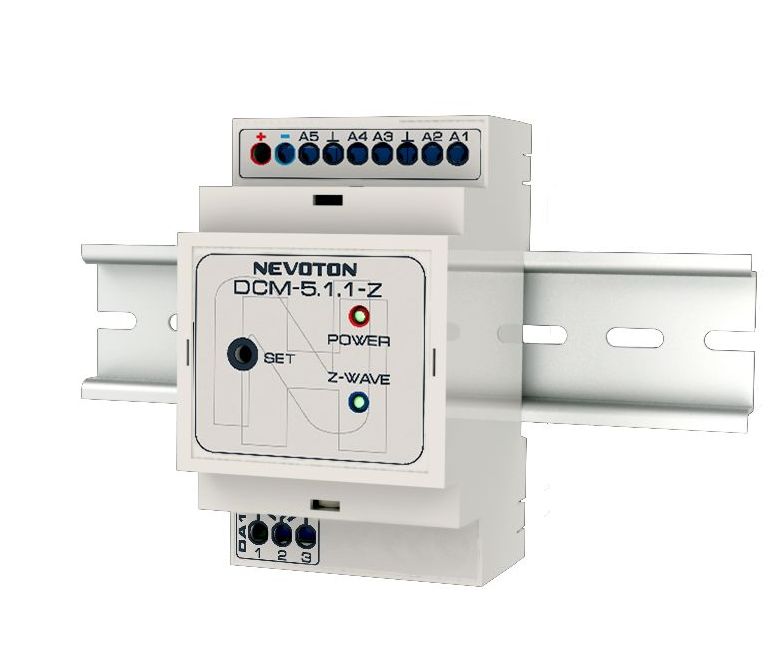

Data Collecting Module NEVOTON DCM-5.1.1-Z

NEVOTON DCM-5.1.1-Z - is a Z-Wave Input-Output module 5th channel which is intended for industrial and household sensors with electrical outputs of different types (e.g., 4-20 mA, 0-10V, dry contact, and thermocouples and thermistors).

NEVOTON DCM-5.1.1-Z - is a Z-Wave device which is intended for industrial and household sensors with electrical outputs of different types (e.g., 4-20 mA, 0-10V, dry contact, and thermocouples and thermistors). The data collecting module NEVOTON DCM-5.1.1-Z can manage with 5 sensors at the same time, as well as it is able to control one external device (has one switching relay). List of the types of respondents sensors corresponds to the modern equipment of industrial automation: 1. Platinum thermistor 50, 100, 500, 1000. Accuracy: 0,1°С, measurement error: above 0,1% 2. Copper thermistor 50, 100, 500, 1000. Accuracy: 0,1°С, measurement error: above 0,1% 3. Thermocouples: R,S,B,J,T,E,K,N,A,L,M types. Accuracy: 1°С, measurement error: above 0,1% 4. DC current signal 0..5 mA. Measurement error: above 0,1% 5. DC current signal 0..20 mA. Measurement error: above 0,1% 6. DC current signal 4..20 mA. Measurement error: above 0,1% 7. DC voltage signal 0..10 V. Measurement error: above 0,1% 8. DC voltage signal -50..+50 mV Measurement error: above 0,1% 9. DC voltage signal 0..1 V Measurement error: above 0,1% 10. Dry contact 11. Flap position sensor 0..900 Ohm 12. Flap position sensor 0..2000 Ohm

NEVOTON

DCM-5.1.1-Z

HW: 1 FW: 1.05

ZM5202

6.51.06

SLAVE_ENHANCED_232

On/Off Power Switch

ROLE_TYPE_SLAVE_ALWAYS_ON

0x0227

0x0100

0x0100

0x0700

0x0700

RU: 869.00MHz

Sensors, On/Off Switches/Devices

Russian Federation

Yes

Yes

40
