Product Recognition

Certification Number

ZC14-23020198

Name

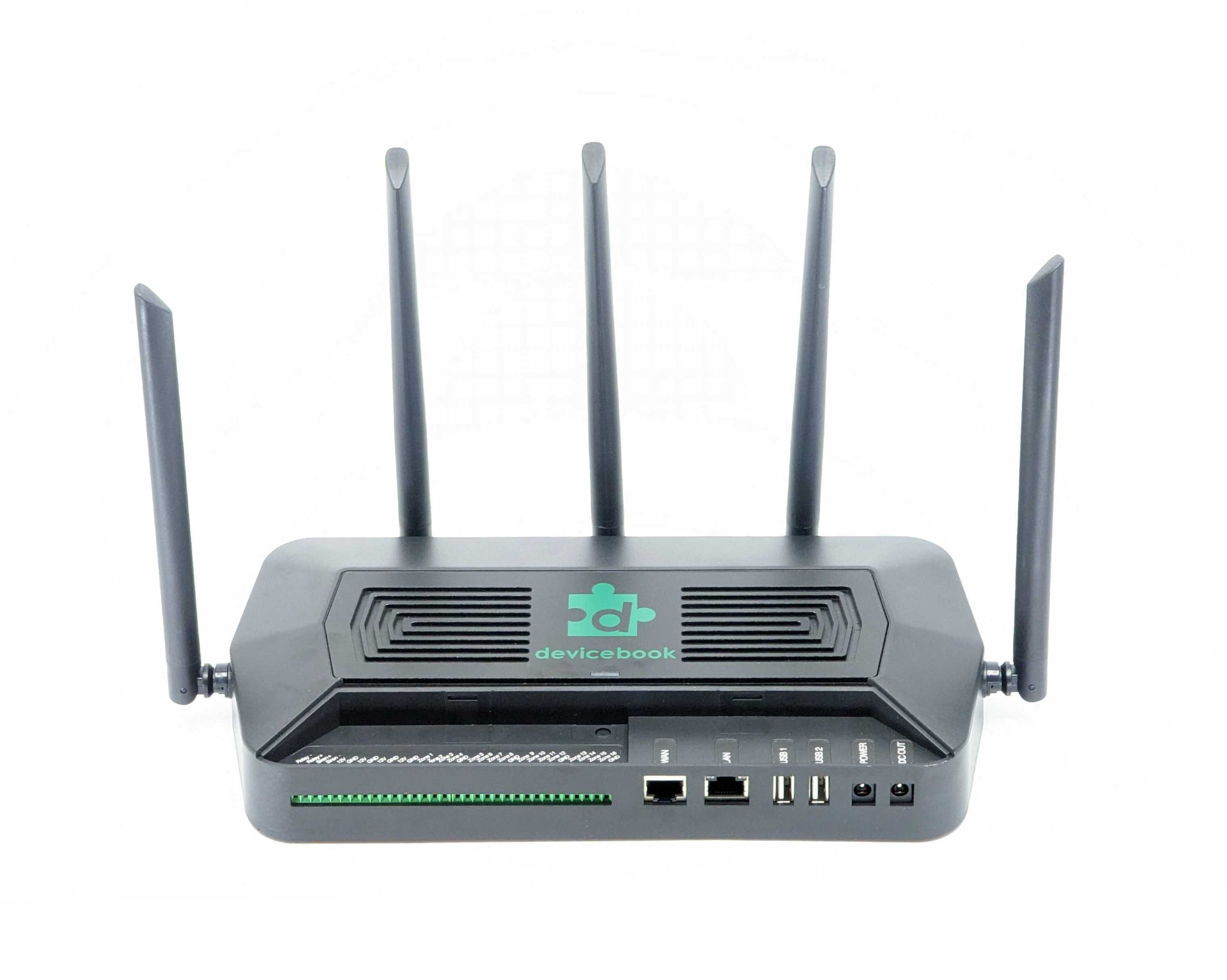

Devicebook Hub

Short Description

Devicebook Hub is a device that allows controlling of smart home devices using Z-Wave™ protocol along with other common smart home protocols

Long Description

Devicebook offers a powerful all-in-one smart home integration platform for homeowners, professional installers, and device manufacturers. Devicebook delivers smart home solutions for the entire home, from smart lighting, video surveillance to elderly care. Devicebook HUB supports all the common smart home protocols: Wifi, Z-Wave™, Matter, Bluetooth, Insteon, PoE, other wired devices and more. With Devicebook technology, homeowners no longer need to worry about device incompatibility, they can mix and match devices from different brands that suit their style and budget. Devicebook’s powerful AI engine automatically generates a customized app and automation that is tailored to the house layout and unique needs of the homeowners. Our future proof design allows homeowners to easily upgrade their smart home anytime.

Brand

Devicebook

Product Identifier

DH100

Product Line

Hub

OEM Version

HW: 01 FW: 07.18:07.18

Hardware Platform

EFR32ZG14

Z-Wave Version

7.18.3

Library Type

CONTROLLER_BRIDGE

Device Type

Gateway DT

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x045E

Product Type ID

0x0001

Product ID

0x0001

User Icon

0x0500

Installer Icon

0x0500

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

Gateway Controller

Countries / Regions

United States of America

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_ACCESS_CONTROL, S2_AUTHENTICATED, S2_UNAUTHENTICATED

Documents

Features

Association Groups

Texts

ID	Description	Value
10	Controller Replication	N/A
5	Factory Reset Procedure	If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. The steps to factory reset Devicebook Hub: 1. Go to Home/My Hubs. 2. Under the Z-Wave section of your hub card, click Manage Devices. 3. Enter your Z-Wave Device Management password. 4. Go to Network tab. 5. Under section Factory Reset Controller, click Reset button. 6. Once the spinner on the button stops spinning, the factory reset has completed. Note: Factory resetting the Z-Wave Controller only affects Z-Wave. No other protocols or functionalities of the Devicebook Hub are affected.
23	Controller Classic Inclusion	1. Go to Z-Wave Device Management page. 2. Click Add button. 3. Put your Z-Wave device into add/inclusion/learn mode. This is device specific and the details are described in the device's product manual. 4. If the added device is S2 Security enabled: 4.1. S2 keys display: You should typically grant all requested S2 keys. 4.2. PIN display: Enter the first 5 digits of the Device Specific Key DSK. This is typically present on the product packaging in full. Most devices also have a sticker with the first 5 digits. Example, the PIN code is the first 5 underlined digits: 5. Wait until the add succeeds. 6. The added device appears on the Device List.
24	Controller Classic Exclusion	1. Go to Z-Wave Device Management page. 2. Click Remove button. 3. Put your Z-Wave device into add/inclusion/learn mode. This is device specific and the details are described in the device's product manual. 4. Wait until the add succeeds. 5. The removed device disappears on the Device List.
11	Controller SmartStart Inclusion	1. Go to Z-Wave Device Management page. 2. Open SmartStart tab. 3. Click Add button. 4. Enter the added device's Device Specific Key DSK. You can find the DSK on the product packaging. It is an 8-segment sequence of numbers, as shown on this example: 5. Click Save button. 6. The newly added item appears on the SmartStart Devices list. 7. Power up the device. Typically this is done by pulling the battery tab. 8. As the device powers up, it will be automatically added to the Z-Wave network. This can take minutes.
25	Controller Provisioning List	1. Go to Z-Wave Device Management page. 2. Open SmartStart tab. 3. Click on item on the SmartStart Devices List. 4. Modify the information and click Save.

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
