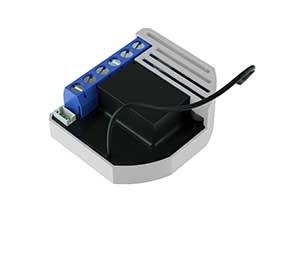

11 | Turn Load 1 (Q⬆) Off Automatically with Timer | If Load 1 (Q⬆) is ON, you can schedule it to turn OFF automatically after a period of time defined in this parameter. The timer is reset to zero each time the device receives an ON command, either remotely (from the gateway (hub) or associated device) or locally from the switch. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Auto OFF Disabled | 1 | 32535 | 1 - 32535 seconds (or milliseconds – see Parameter no. 15) Auto OFF timer enabled for a given amount of seconds (or milliseconds) |
|
100 | Enable / Disable Endpoint I2 or select the Notification Type and the Notification Event | Choose whether the Endpoint I2 is disabled (and not shown on the UI) or enabled (and displayed on the UI). By enabling this endpoint (setting it to be either a notification sensor or a binary sensor), the user also selects a Notification Type and a Notification Event for which notification reports will be sent (in case the endpoint is configured as a notification sensor). Endpoint device type selection: -notification sensor (1 - 6): GENERIC_TYPE_SENSOR_NOTIFICATION, SPECIFIC_TYPE_NOTIFICATION_SENSOR sensor binary (9): GENERIC_TYPE_SENSOR_BINARY, SPECIFIC_TYPE_NOT_USED Values (size is 1 byte dec): NOTE 1: After changing the values of the parameter, first exclude the device (without setting the parameters to their default values), then wait at least 30 seconds to re-include the device! NOTE 2: When the parameter is set to value 9 the notifications are sent for the Home Security notification type. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Endpoint, I2 disabled | 1 | 1 | Home Security; Motion Detection, unknown location | 2 | 2 | CO; Carbon Monoxide detected, unknown location | 3 | 3 | CO2; Carbon Dioxide detected, unknown location | 4 | 4 | Water Alarm; Water Leak detected, unknown location | 5 | 5 | Heat Alarm; Overheat detected, unknown location | 6 | 6 | Smoke Alarm; Smoke detected, unknown location | 9 | 9 | Sensor binary |
|
63 | Choose Normally Closed or Normally Open for Q⬆ Load | Set value determines the type of the device connected to the Q⬆ output. The output type can be normally open (NO) or normally closed (NC). | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | When switch/device is off the output is 0V (NO). | 1 | 1 | When switch/device is off the output is 230V (NC). |
|
101 | Enable / Disable Endpoint I3 or select the Notification Type and the Notification Event | Choose whether the Endpoint I3 is disabled (and not shown on the UI) or enabled (and displayed on the UI). By enabling this endpoint (setting it to be either a notification sensor or a binary sensor), the user also selects a Notification Type and a Notification Event for which notification reports will be sent (in case the endpoint is configured as a notification sensor). Endpoint device type selection: -notification sensor (1 - 6): GENERIC_TYPE_SENSOR_NOTIFICATION, SPECIFIC_TYPE_NOTIFICATION_SENSOR -sensor binary (9): GENERIC_TYPE_SENSOR_BINARY, SPECIFIC_TYPE_NOT_USED NOTE 1: After changing the values of the parameter, first exclude the device (without setting the parameters to their default values), wait at least 30 seconds and then re-include the device! NOTE 2: When the parameter is set to the value 9 the notifications are sent for the Home Security notification type. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 1 | Home Security; Motion Detection, unknown location | 2 | 2 | CO; Carbon Monoxide detected, unknown location | 3 | 3 | CO2; Carbon Dioxide detected, unknown location | 4 | 4 | Water Alarm; Water Leak detected, unknown location | 5 | 5 | Heat Alarm; Overheat detected, unknown location | 0 | 0 | Endpoint, I2 disabled | 6 | 6 | Smoke Alarm; Smoke detected, unknown location | 9 | 9 | Sensor binary |
|
110 | Temperature Sensor Offset Settings | Set value is added to or subtracted from the actual measured value to adjust the temperature report sent by an external sensor (sold separately). This parameter only applies to Celcius temperature unit (the Fahrenheit unit is currently not supported). | 0 | 2 | 0 | 0 | 32536 | From | To | Description |
|---|
1 | 100 | Where 1 stands for 0.1 and 100 stands for 10.00 degrees added to the actual measurement | 1001 | 1100 | Where 1001 stands for -0.1 degrees and 1100 stands for -10.0 degrees subtracted from the actual measurement | 32536 | 32536 | Offset is 0 degrees. |
|
2 | Input 2 contact type | With this parameter, input 2 contact type is defined. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | NO (normally open) input type | 1 | 1 | NC (normally close) input type |
|
3 | Input 3 contact type | With this parameter, input 3 contact type is defined. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | NO (normally open) input type | 1 | 1 | NC (normally close) input type |
|
120 | Temperature Sensor Reporting Threshold | If an external digital temperature sensor (sold separately) is connected to the device, it reports temperature readings based on the threshold defined in this parameter. This parameter only applies to the degrees temperature unit (the Fahrenheit unit is currently not supported). | 0 | 1 | 0 | 0 | 5 | From | To | Description |
|---|
0 | 0 | Reporting disabled | 1 | 127 | Where 1 stands for 0.1 and 127 stands for 12.7 degrees | 5 | 5 | 0.5 degrees Celsius |
|
1 | In-wall Switch Type for Load 1 (Q⬆) to control I1 | With this parameter, you can select between push-button (momentary) and on/off toggle switch types. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | on/off toggle switch | 0 | 0 | push-button (momentary) |
|
10 | Activate / deactivate ALL ON / ALL OFF Functionality | Devolo Relay device responds to commands ALL ON / ALL OF | 0 | 2 | 0 | 0 | 255 | From | To | Description |
|---|
1 | 1 | ALL ON not active, ALL OFF active | 2 | 2 | ALL ON active, ALL OFF not active | 255 | 255 | ALL ON active, ALL OFF active | 0 | 0 | ALL ON not active, ALL OFF not active |
|
42 | Watt Power Consumption Reporting Time Threshold for Q⬆ Load | Set value refers to the time interval with which power consumption in Watts is reported (0 – 32535 seconds). If 300 is entered (by default), energy consumption reports will be sent to the gateway (hub) every 300 seconds (or 5 minutes). | 0 | 2 | 0 | 0 | 300 | From | To | Description |
|---|
0 | 0 | Power consumption reporting disabled | 1 | 32535 | 1 - 32535 seconds. Power consumption reporting enabled. Report is sent according to time interval (value) set here. |
|
