| Product Recognition | |
|---|
| Certification Number | ZC08-14020002 |
|---|

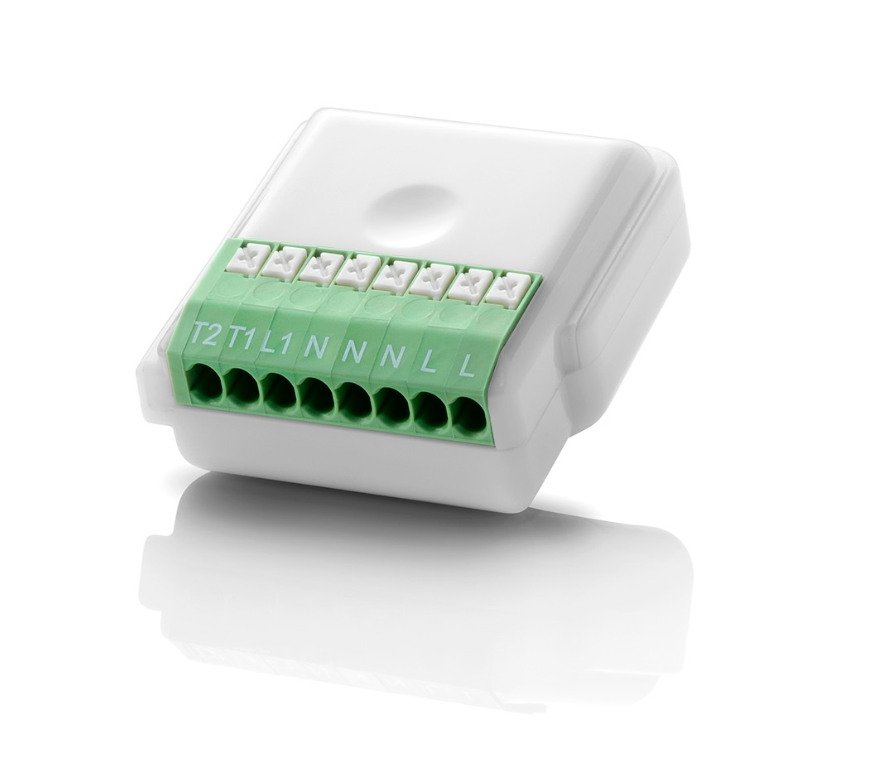

| Name | DiehlControls Dimmer Actuator |
|---|
| Long Description | The Dimmer Actuator is used for switching on, switching off or dimming one or more connected loads.
Further Highlights of the Dimmer Actuator are:
• The smallest z-wave dimmer actuator
• Measuring power and energy
• Usage as a switch, e.g., actuating a motor
• Remote controlling of further actuators / Z-Wave device
• Control via buttons and switches possible
• Easy configuration with tactile button
• Integrated signal LED
• VDE-approved |
|---|
| Brand | Diehlcontrols |
|---|
| Product Identifier | 766366 |
|---|
| OEM Version | v6.9 |
|---|
| Hardware Platform | ZM4102 |
|---|
| Z-Wave Version | 6.01.03 |
|---|
| Library Type | SLAVE_ENHANCED |
|---|
| Device Type | Central Controller |
|---|
| Manufacturer ID | 0x0103 |
|---|
| Product Type ID | 0x0002 |
|---|
| Product ID | 0x0002 |
|---|
| Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
| Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
| Countries / Regions | European Union |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_SWITCH_MULTILEVEL | Switch Multilevel | 0x26 | 1 | | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | | COMMAND_CLASS_SWITCH_MULTILEVEL_V2 | Switch Multilevel V2 | 0x26 | 2 |
|
|---|
| Documents | |
|---|
