Product Recognition | |
|---|
Certification Number | ZC10-19086733 |
|---|

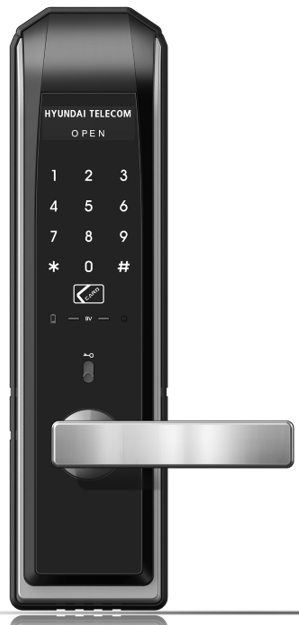

Name | DIGITAL DOOR LOCK |
|---|
Short Description | - Lock & Unlock Automatically |
|---|
Long Description | - Lock & Unlock Automatically
- Supports Z-Wave
- Touchscreen Keypad |
|---|
Brand | HYUNDAI TELECOM |
|---|
Product Identifier | HDL-5200SK |
|---|
OEM Version | HW: 1 FW: 1.00:01.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.81.05 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0374 |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0081 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_Other_Lang_1 | Product Manual Additional Language 1 | | Manual_English | Product Manual in English | | Adv_Manual | Advanced Information Product Manual | | Manual_Primary_Lang | Product Manual in English | | Installer_Guide | Installation Guide | |
|
|---|
Features | Feature | Values |
|---|
Door Lock Type | | Battery Type | | Color | | Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | Battery Report
Notification Report
Door Lock Operation Report
User Code Report
Device Reset locally notification |
|
|---|
Texts | ID | Description | Value |
|---|
2 | Classic Exclusion | 1. Set the controller in exclusion mode.
2. Open the battery cover of the indoor body and press the [REG 1] button.
3. Press the [3][6] button after pressing the [*] button. | 23 | Controller Classic Inclusion | 1. Set the controller in inclusion mode.
2. Open the battery cover of the indoor body and press the [REG 1] button.
3. Press the [1][4] button after pressing the [*] button. | 24 | Controller Classic Exclusion | 1. Set the controller in exclusion mode.
2. Open the battery cover of the indoor body and press the [REG 1] button.
3. Press the [3][6] button after pressing the [*] button. | 8 | Where to find S2 DSK on product | You can find the QR code and DSK on the product side. | 1 | Classic Inclusion | 1. Set the controller in inclusion mode.
2. Open the battery cover of the indoor body and press the [REG 1] button.
3. Press the [1][4] button after pressing the [*] button. | 4 | Wake-Up Procedure | Kaypad Touch, Button, Handle | 5 | Factory Reset Procedure | 1. Open the battery cover of the indoor body and press the [REG 1] button.
2. Press the [8][0] button after pressing the [*] button. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | Manual lock operation | Access Control | Manual unlock operation | Access Control | RF lock operation | Access Control | RF unlock operation | Access Control | Keypad lock operation | Access Control | Keypad unlock operation | Access Control | Auto lock locked operation | Access Control | Lock state: Lock jammed | Access Control | All user codes deleted | Access Control | Single user code deleted | Access Control | New user code added | Access Control | New user code not added due to duplicate code | Access Control | Door handle state: Window/door handle is open | Access Control | Door handle state: Window/door handle is closed | Emergency Alarm | Contact police | Emergency Alarm | Contact fire service |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
