Product Recognition | |
|---|
Certification Number | ZC10-20116997 |
|---|

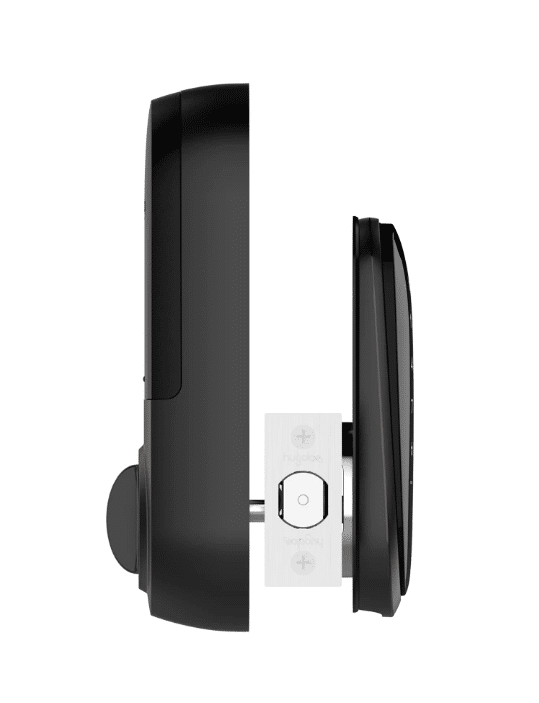

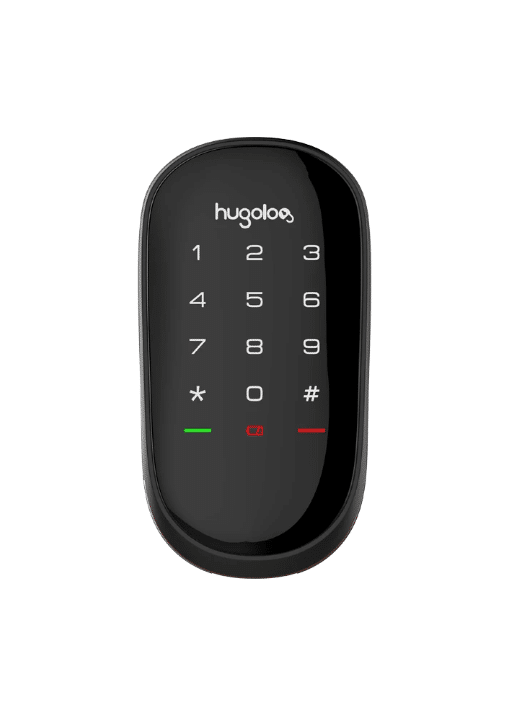

Name | Digital Mortise Door Lock |
|---|
Short Description | Z-Wave Controlled mortise Door Lock with key pad and finger print scanner. |
|---|
Long Description | This product supports Security 2 Command Class. While a Security S2 enabled Controller is needed in order to fully use the security feature.
This product can be operated in any Z-Wave network with other Z-Wave certified products from other manufacturers.
All mains operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
This product supports the Over The Air (OTA) feature for the product's firmware upgrade. |
|---|
Brand | Hugolog powered by KAADAS |
|---|
Product Identifier | HU04 |
|---|
Product Line | Z-Wave Plus Device |
|---|
OEM Version | HW: 3 FW: 1.01:02.00 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x021D |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0003 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_LANGUAGE | Language | 0x89 | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TIME | Time | 0x8A | 1 | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | HU04-Product Manual V1.0.pdf | | Manual_English | HU04-Product Manual V1.0.pdf | | Installer_Guide | HU04-Installer Manual V1.0.pdf | | Adv_Manual | HU04-Advanced Information Product Manual.pdf | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Battery Quantity | | Battery Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | Lifeline group. Battery Report: Issued when battery becomes low. Notification Report: Issued by Push nodes every time a new event is detected or when a state variable has changed state. Door Lock Operation Report: Issued by a node when it has completed a lock/unlock operation initiated locally. User Code Report: Issued when a user code has changes. Device Reset locally notification: Issued when Factory Reset is performed. |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | You can find the QR code and DSK on back side of module. | 1 | Classic Inclusion | Join a network: inclusion Z-Wave network and add the lock.
1.Follow the user guide of hub to enter inclusion mode.
2.Operate on lock following guide below:
3.Enter master mode(** + Master PIN Code + #), Wait for 2 Green Lights + 2 Beeps
4.Input “8+1+#” to enter “Inclusion mode” (2 Green Lights + 2 Beeps) | 2 | Classic Exclusion | Log off a network: Exclusion Z-Wave network and remove the lock
1.Follow the user guide of hub to enter exclusion mode.
2.Operate on lock following guide below:
3.Enter master mode(** + Master PIN Code + #), Wait for 2 Green Lights + 2 Beeps
4.Input “8+2+#” to enter “Exclusion mode”(2 Green Lights + 2 Beeps) | 4 | Wake-Up Procedure | Not Applicatable | 5 | Factory Reset Procedure | Factory reset:
1.Operations on lock
2.Open the door and keep the lock in "unlock" status
3.Open battery box and find the reset button.
4.Use a sharp thing to press and hold the reset button.
5.Keep holding the reset button for 5 seconds until hearing voice guide. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | Manual lock operation | Access Control | Manual unlock operation | Access Control | RF unlock operation | Access Control | Keypad unlock operation | Access Control | Lock state: Lock jammed | Access Control | All user codes deleted | Access Control | Single user code deleted | Access Control | New user code added | Access Control | New user code not added due to duplicate code | Access Control | Manually enter user access code exceeds code limit |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
