Product Recognition | |
|---|
Certification Number | ZC10-20036883 |
|---|

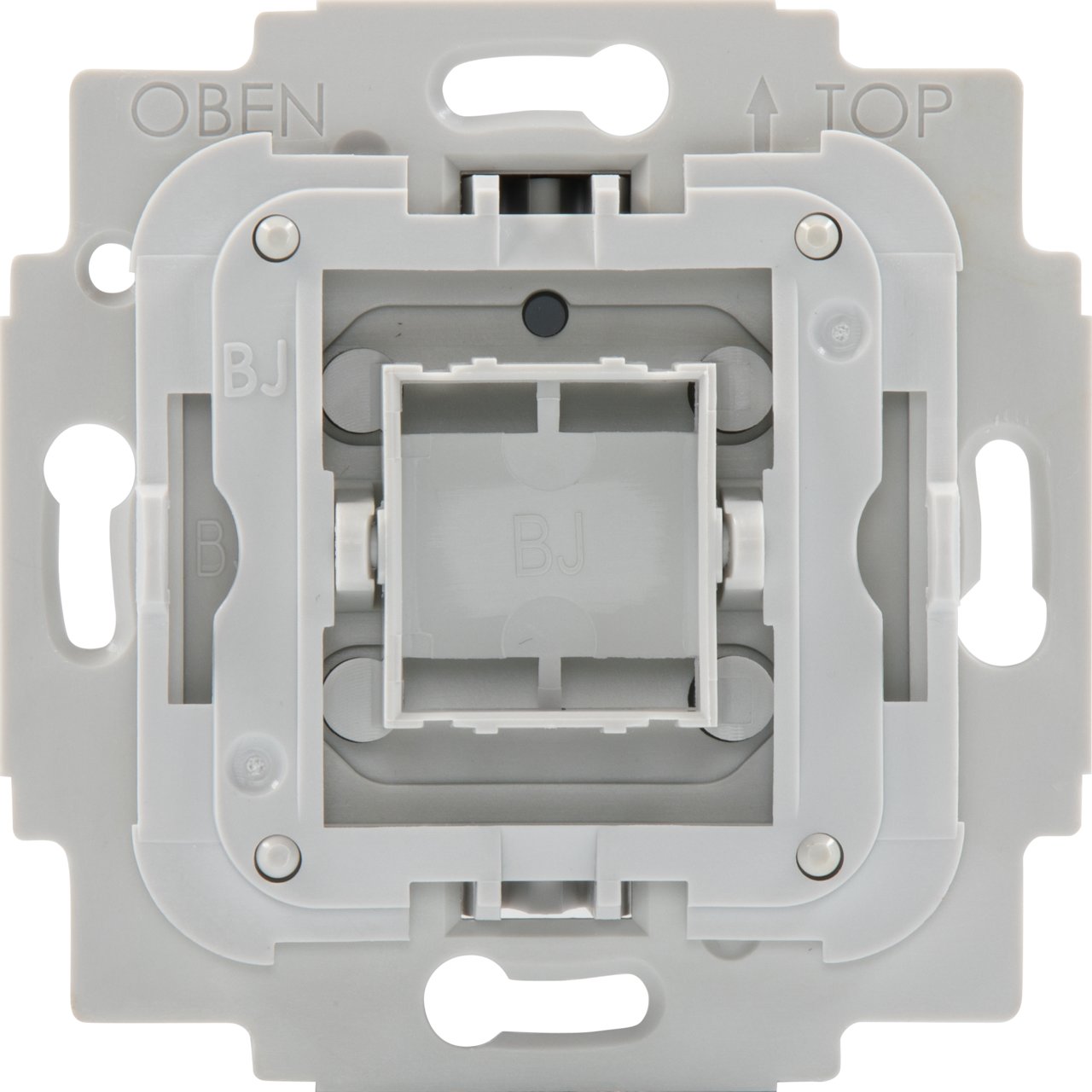

Name | Dimmer |
|---|
Short Description | The smart, wall mounted dimmer is suitable for controlling various light sources in a Z-Wave network and can also be operated manually by hand. |
|---|
Long Description | Designed as a drop-in replacement for your single wall switch or dimmer from leading brand manufacturers, TechniSat's Dimmer integrates your wall switch into the Smart Home future.
Featuring Z-Wave SmartStart and S2 security for easy installation and secure operation, yourdimmer can now be controlled from your Smart Home as well.
● Full manual operation
● can trigger central scenes via multiple button clicks
● Integrated 230 V auxiliary input for push button or toggle switch types, applicable in alternating switching and or intermediate switching circuits
● Short circuit and overload protection monitoring |
|---|
Brand | TechniSat |
|---|
Product Identifier | 0x00/9497 |
|---|
Product Line | Smart Home |
|---|
OEM Version | HW: 7 FW: 2.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.82.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0299 |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x1A92 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Energy Meters, All Lighting Devices, Dimming Lighting Devices, On/Off Switches/Devices, Lighting Accessories |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_METER_V4 | Meter V4 | 0x32 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Neutral Wire Required | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 1 | 0 | Lifeline | 0x0001 | The lifeline group reports the device's status. | 2 | 10 | 0 | Switch State | 0x2001 | Sends basic set commands to associated devices, according to the current state of the device. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Parameter 1 | Enable/disable central scene notifications for 2x-5x button presses. | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Setting this parameter to 0 will disable central scene notifications for multiple (2x-5x) button presses. | 1 | 1 | Setting this parameter to 1 will enable central scene notifications for multiple (2x-5x) button presses. |
| 2 | Parameter 2 | Interval of current wattage meter reports in 10 seconds increments. | 1 | 2 | 0 | 8640 | 3 | From | To | Description |
|---|
0 | 0 | Disable unsolicited meter reports of current wattage. | 3 | 8640 | Interval of current wattage meter unsolicited reports in 10s increments (30 seconds - 1 day) |
| 3 | Parameter 3 | Interval of active energy meter reports in minutes. | 1 | 2 | 0 | 30240 | 60 | From | To | Description |
|---|
0 | 0 | Disable unsolicited meter reports of active energy. | 10 | 30240 | Interval of active energy meter unsolicited reports in minutes (10 minutes - 3 weeks) |
| 4 | Parameter 4 | Operation mode of button T | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | T1 turns output L1 on, T2 turn output L1 off | 1 | 1 | T1 and T2 toggle output L1 |
| 5 | Parameter 5 | Configuration of switch type connected to extension connector S | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | a toggle switch type is connected to extension connector S | 1 | 1 | a push button switch type is connected to extension connector S |
| 6 | Parameter 6 | Central Scene mapping of extension input S | 1 | 1 | 1 | 3 | 1 | From | To | Description |
|---|
1 | 1 | map extension input S to central scene of T1 | 2 | 2 | map extension input S to central scene of T2 | 3 | 3 | map extension input S to own central scene |
| 7 | Parameter 7 | Dimming curve selection | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | select dimming curve 1 | 1 | 1 | select dimming curve 2 |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The Z-Wave QR-Code is located on the back of the product. | 1 | Classic Inclusion | 1. Install the TechniSat Dimmer.
2. After checking the correct installation, re-enable electrical power at the main fuse or circuit breaker.
3. Start the Z-Wave device add mode on your Z-Wave gateway, according to the gateway‘s manual.
4. Press T1 3x within 1 second.
5. The red status LED is on while the device is added to the Z-Wave network.
6. The green LED is on for 5 seconds after successfully adding the device. | 2 | Classic Exclusion | 1. Start the Z-Wave device remove mode on your Z-Wave gateway, according to the gateway‘s manual.
2. Press and hold T1 for more than 10 seconds.
3. The red status LED is on while the device is removed from the Z-Wave network.
4. The green LED is on for 5 seconds after successfully removing the device. | 5 | Factory Reset Procedure | Use this procedure only when the network primary controller is missing or otherwise inoperable.
1. Press and hold T2 for more than 20 seconds.
2. The LED will alternately flash red and green for 5 seconds after a successful reset. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | (Refer to parameters): State idle | Power Management | Over-load status: Over-load detected |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
