Product Recognition | |
|---|
Certification Number | ZC10-14080010 |
|---|

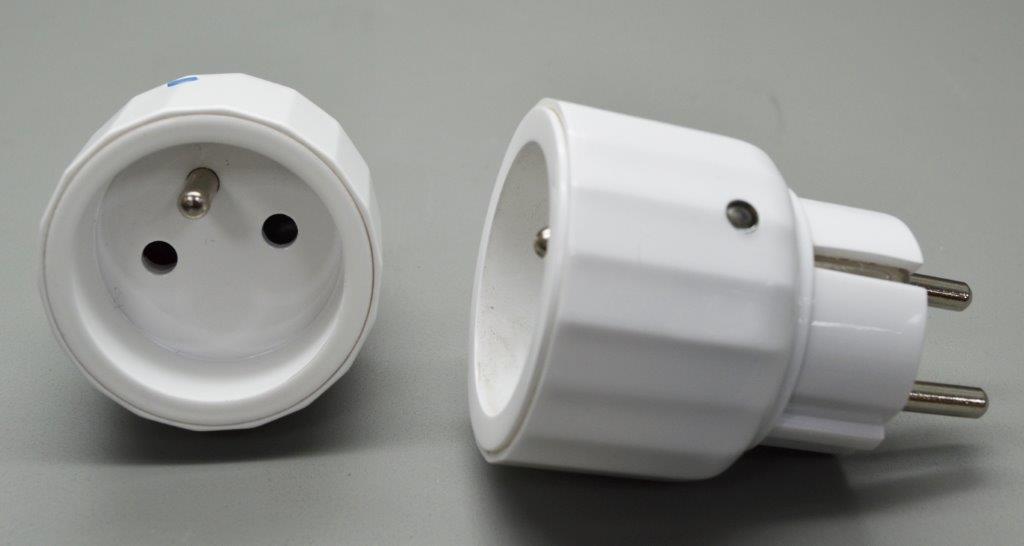

Name | Dimmer Plug |
|---|
Short Description | The AD147-6 is a mini dimmer plug |
|---|
Long Description | The mini Dimmer Plug is a Z-Wave enabled device which is fully compatible with any Z-Wave enabled network. Z-Wave enabled devices displaying the Z-Wave logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave enabled networks. Inclusion of this unit on other manufacturer’s Wireless Controller menu allows remote operation of the unit and the connected load.
The mini Dimmer Plug is designed to control the on/off status of lighting and appliances load in your house. The unit also provides dimmer function which is only applicable to light bulbs. At 220-240V voltage, this Dimmer Plug can support connected load of 6 - 250W. |
|---|
Brand | Everspring |
|---|
Product Identifier | AD147-6 |
|---|
OEM Version | 02 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.51.02 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0060 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0003 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | European Union |
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 4 | 0 | When the button on the unit or the wall switch is pressed, the unit will send a Basic Set command to the nodes of Group 2. When the unit is OFF, Basic Set Value = 0x00. When the unit is ON, Basic Set Value = 0xFF. | 1 | 1 | 0 | 1.When the unit is powered for the first time, the unit will send a Notification Report to the node of Group 1.
2. When setting the unit or changing the unit’s status, the unit will send a Multilevel Switch Report to the node of Group 1.
3. Device Reset: When performing Reset the unit will send Device Reset Locally Notification to the node of Group1.
4. The minimum interval time between two reports sent from this unit to the node of Group 1 is 3 seconds. Refer to Configuration parameter 2 for more information. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Basic Set Command value | Basic Set Command value. When the device sends a BASIC SET command, the value indicated here will be sent. | 0 | 2 | 0 | 0 | 255 | | 2 | The delaying time to report to Group 1 | The delaying time to report to Group 1. When a notification is sent to the nodes in Group 1, the send will take place after the delay period indicated with this value. | 0 | 1 | 0 | 0 | 3 | | 3 | Remember the last status | Remember the last status of the load. 1: remember, 0: do not remember | 0 | 1 | 0 | 0 | 1 | | 4 | Output mode setting: Dimming, On/Off | Output mode setting: Dimming, On/Off Note: When set to 1, the operation mode is not changed; only the light would be turned on with 100% brightness immediately. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | 0 (Dimmable) or 1 (On/Off) |
|
|
|---|
Texts | ID | Description | Value |
|---|
6 | Additional Special Features | NR | 2 | Exclusion | 1. Put the Z-Wave Controller into exclusion mode.
2. Press the link key three times within 1.5 seconds to put the unit into exclusion mode. (Please refer to the documentation for the location of the link key.) | 1 | Inclusion | 1. Put the Z-Wave Controller into inclusion mode.
2. Press the link key three times within 1.5 seconds to put the unit into inclusion mode. (Please refer to the documentation for the location of the link key.) | 4 | Device Wake-Up | NR | 3 | Learn Mode (adding another controller) | NR | 5 | Factory Reset | (This procedure should only be used when the network primary controller is inoperable.)
1. Press the link key three times within 1.5 seconds to put the unit into exclusion mode.
2. Within 1 second of step 1, press link key again and hold it until LED is off (about 5 seconds). (Please refer to the documentation for the location of the link key.)
3. Node ID is excluded. The device reverts to factory default state and will be in auto-inclusion mode for 4 minutes. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
