DIMMER SWITCH 700 – Z-Wave Alliance Product Catalog

Back to Listing

Product Recognition

Certification Number

ZC12-21030190

Name

DIMMER SWITCH 700

Short Description

Meet the new 700 Series Z-Wave Plus Dimmer with Direct 3-Way Solution, Multi-color LED indicator and Smart Bulb Mode.

Long Description

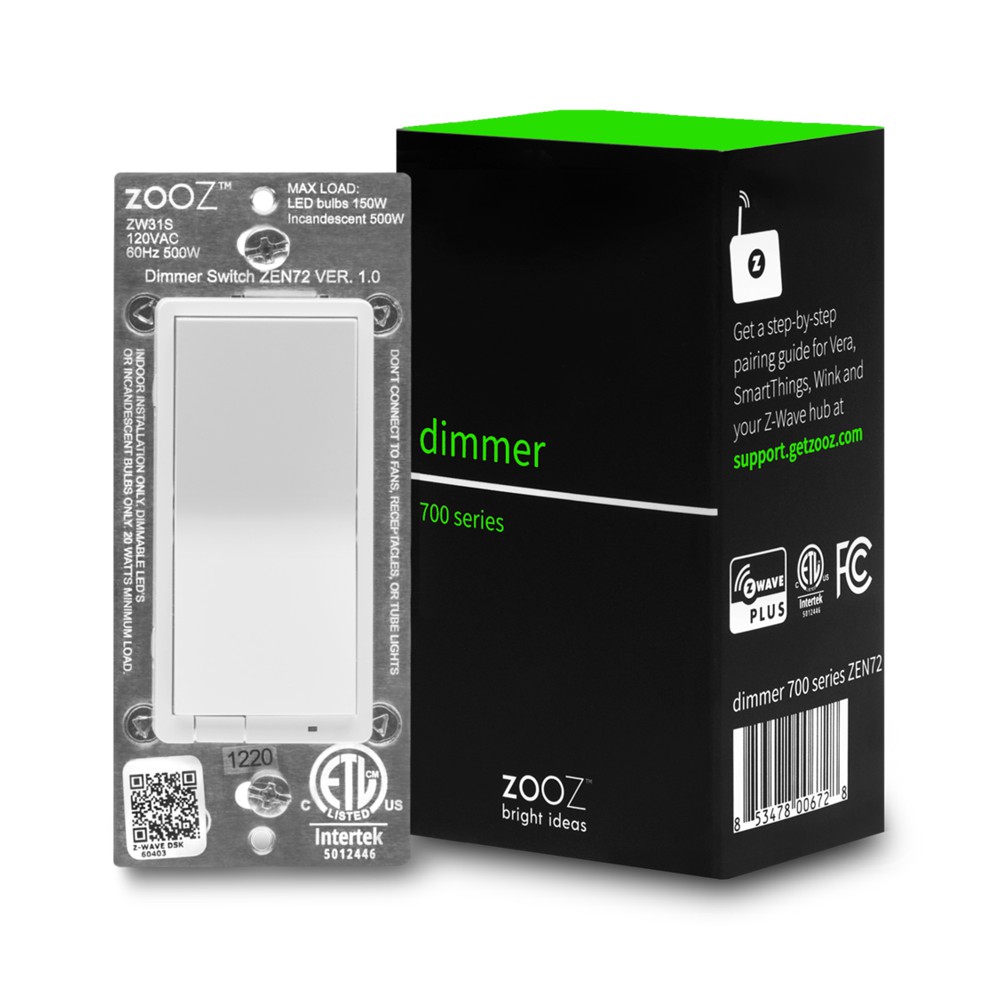

PRODUCT HIGHLIGHTS: - Manual or Z-Wave on/off and brightness control - NEW: 700 series Z-Wave chip for better range and faster control -Direct 3-Way: works with regular on/off switches in a 3-way - Scene control: trigger actions with multi-tap (select hubs only) - Smart bulb mode: disable relay and control the light via Z-Wave - Night light mode: press down when off to turn lights on to 20% - Adjustable LED indicator in 4 colors and 3 brightness levels - Built-in Z-Wave range test tool and signal repeater - Works with LED and incandescent bulbs (don’t use with tubes) SPECS: - Model Number: ZEN72 VER. 1.0 - Z-Wave Signal Frequency: 908.42 MHz - Power: 120 VAC, 60 Hz - Maximum Load: 150W LED bulbs, 960W Incandescent, 1800W -(15A) Resistive - Range: Up to 500 feet line of sight - Operating Temperature: 32-104° F (0-40° C) - Installation and Use: Indoor only

Brand

Zooz

Product Identifier

ZEN72

Product Line

Line A

OEM Version

HW: 1 FW: 1.00

Hardware Platform

ZGM130

Z-Wave Version

7.13.6

Library Type

SLAVE_ENHANCED_232

Device Type

Multilevel Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x027A

Product Type ID

0x7000

Product ID

0xA002

User Icon

0x0604

Installer Icon

0x0600

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

All Lighting Devices, Dimming Lighting Devices

Countries / Regions

United States of America

Supported Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

LED Indicator Control

Choose if you want the LED indicator to turn on when the switch (light) is on or off, or if you want it to remain on or off at all times.

From	To	Description
0	0	LED indicator is on when switch is off, LED indicator is off when switch is on (default)
1	1	LED indicator is on when switch is on, LED indicator is off when switch is off;
2	2	LED indicator is always OFF
3	3	LED indicator is always ON

Auto Turn-Off Timer

Use this parameter to enable or disable the auto turn-off timer function (the time after which you want the switch to automatically turn off once it has been turned on).

65535

From	To	Description
0	0	timer disabled (default)
1	65535	minutes

Maximum Brightness

Set the maximum brightness level (in %) for your dimmer. You won’t be able to add brightness to the light beyond the set value. Note: if Parameter 12 is set to value 0, Parameter 11 is automatically disabled.

From	To	Description
1	99	percent

On Off Status After Power Failure

Set the on off status for the switch after power failure.

From	To	Description
0	0	forced to OFF (regardless of state prior to power outage)
1	1	forced to ON (regardless of state prior to power outage)
2	2	remembers and restores on/off status after power failure (default)

Ramp Rate Control

Adjust the ramp rate for your dimmer (fade-in / fade-out effect for on / off operation). Values correspond to the number of seconds it take for the dimmer to reach full brightness or turn off when operated manually.

From	To	Description
1	99	seconds

Minimum Brightness

Set the minimum brightness level (in %) for your dimmer. You won’t be able to dim the light below the set value.

From	To	Description
1	99	percent

LED Indicator Color

Choose the color of the LED indicator.

From	To	Description
0	0	white
1	1	blue
2	2	green
3	3	red

On/Off Paddle Orientation

Choose if you want the upper paddle to turn the light on or turn the light off when tapped.

From	To	Description
0	0	Upper paddle turns the light on, lower paddle turns it off (default)
1	1	Upper paddle turns the light off, lower paddle turns it on
2	2	Any paddle turns light on/off.

Auto Turn-On Timer

Use this parameter to enable or disable the auto turn-on timer function (the time after which you want the switch to automatically turn on once it has been turned off).

65535

From	To	Description
0	0	timer disabled
1	65535	minutes

LED Indicator Brightness

Choose the LED indicator's brightness level.

From	To	Description
0	0	bright (100%)
1	1	medium (60%)
2	2	low (30%)

Single Tap Behavior

Choose what you'd like the dimmer to do when you tap the upper paddle once.

From	To	Description
0	0	the light will turn on to the last brightness level (default)
1	1	the light will turn on to the custom brightness level set in parameter 18
2	2	the light will turn on to the maximum brightness level set in Parameter 11
3	3	the light will turn on to full brightness

Texts

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes
