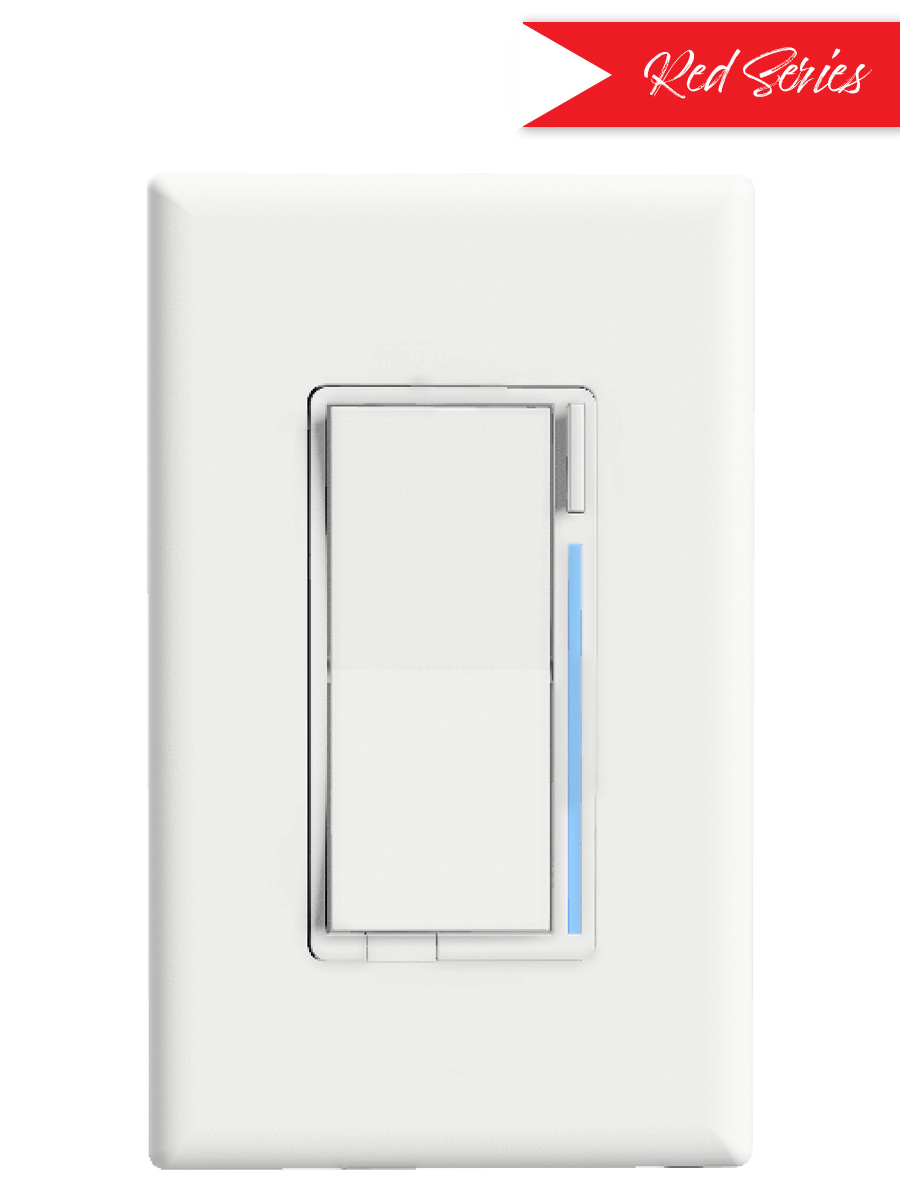

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Firmware Update Meta-Data V4

0x7A

4

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_PROTECTION_V2

Protection V2

0x75

2

COMMAND_CLASS_APPLICATION_STATUS

Application Status

0x22

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_SWITCH_MULTILEVEL_V2

Switch Multilevel V2

0x26

2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_METER_V3

Meter V3

0x32

3

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_CENTRAL_SCENE_V3

Central Scene V3

0x5B

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_SWITCH_MULTILEVEL_V2

Switch Multilevel V2

0x26

2

Manual_Primary_Lang

Product or Owner's Manual

Supported Meter Type

Switch Load Capacity Watts

Z-Wave Scene Type

Firmware Updatable

2

5

0

Basic Set

3

5

0

Switch Multilevel Set Group 3 can be used to keep the, "master" switch in sync with the "slave switches"

4

5

0

SWITCH_MULTILEVEL_START_LEVEL_CHANGE; SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE Group 4 is so that an accessory switch can control multiple bulbs / dimmers with level change

1

5

0

1. Central Scene Notification 2. Basic Report 3. Multilevel Report 4. Application Status 5. Device Reset Locally

2

Dimming Speed (Z-Wave)

How fast or slow the light turns dim when you adjust the switch remotely (ie: dimming from 10-20%, 80-60%, etc). Example of how the values work: 0 = Instant On, 1 = 1 second, 100 = 100 seconds. Entering the value of 101 = Keeps the switch in sync with Parameter 1.

0

1

0

0

101

3

Ramp Rate

How fast or slow the light turns on when you press the switch 1x to bring from On to Off or Off to On. Example of how the values work: 0 = Instant On, 1 = 1 second, 100 = 100 seconds. Entering the value of 101 = Keeps the switch in sync with Parameter 1.

0

1

0

0

101

4

Ramp Rate (Z-Wave)

How fast or slow the light turns on when you bring your switch from On to Off or Off to On remotely. Example of how the values work: 0 = Instant On, 1 = 1 second, 100 = 100 seconds. Entering the value of 101 = Keeps the switch in sync with Parameter 1.

0

1

0

0

101

5

Minimum Dim Level

Minimum level the light switch will dim to (great for fixing flickering bulbs). Example of how the values work: 1= 1%, 2 = 2%, 45 = 45%. This parameter can be set without a HUB from the Configuration Button.

0

1

0

0

1

6

Maximum Dim Level

Maximum level the light switch will dim to. Example of how the values work: 55 = 55%, 56 = 56%, 100 = 100%. This parameter can be set without a HUB from the Configuration Button.

0

1

0

0

100

7

Invert Switch

Inverts the switch (Tap Down = On, Tap Up = Off). Example of how the values work: 0 = Disabled, 1 = Enabled. This parameter can be set without a HUB from the Configuration Button.

0

1

0

0

0

8

Auto Off Timer

Automatically turns the switch off after x amount of seconds. Example of how the values work: 0 = Disabled, 1 = 1 second, 32767 = 32767 seconds.

0

2

0

0

0

11

Power On State

When power is restored, the switch reverts to either On, Off, or Last Level. Example of how the values work: 0 = Off, 1-100 = Specific % On, 101 = Returns to Level before Power Outage. This parameter can be set without a HUB from the Configuration Button.

0

1

0

0

0

17

LED Indicator Timeout

Changes the amount of time the RGB Bar shows the Dim level if the LED Bar has been disabled. Example of how the values work: 0 = Always off, 1 = 1 second after level is adjusted, 10 = 10 seconds after level is adjusted.

0

1

0

0

3

1

Dimming Speed

How fast or slow the light turns on when you hold the switch (ie: dimming from 10-20%, 80-60%, etc). Example of how the values work: 0 - Instant On, 1 = 1 second, 100 = 100 seconds. This parameter can be set without a HUB from the Configuration Button. Finally, if you are using a, "dumb" switch in a 3-Way setting, this parameter will not work if you manually press the dumb switch (it will only work if you press the smart switch).

0

1

0

0

3

9

Default Level (Local)

Default dim level for the switch when pressed locally (at the switch). This is useful if you'd like your switch to turn on to a certain level when manually pressing the switch during certain times. For example, you could have your switch turn on to 10% brightness during the hours of 10pm - 6am when you manually press it. Example of how the values work: 0 = Switch will return to level it was prior to being off, 1 = 1%, 100 = 100%. This parameter can be set without a HUB from the Configuration Button.

0

1

0

0

0

10

Default Level (Z-Wave)

Default dim level for the switch when powered on via a Z-Wave command. This is useful if you'd like your switch to turn on to a certain level when remotely controlling the switch during certain times. For example, you could have your switch only turn on to 10% brightness during the hours of 10pm - 6am when you remotely control it. Example of how the values work: 0 = Switch will return to level it was prior to being off, 1 = 1%, 100 = 100%. This parameter can be set without a HUB from the Configuration Button.

0

1

0

0

0

1

Inclusion

There are two ways to include your dimmer. The primary is via, ""Auto Inclusion"". With the 120V Power turned off (or the Air-Gap pulled out), start the inclusion process on your HUB. Next, flip your breaker on (or push the Air-Gap switch in) and your switch should automatically include to your network. If that doesn't work, start the inclusion process again on your HUB and tap the Configuration Button three (3) times. Please Note: If this still does not work, you can check to see if your switch is within Z-Wave Range by holding down the Configuration Button for 5-10 seconds (if it's not within range, the LED Bar will indicate Red and if it is within Range, the LED Bar will indicate Green). If your switch indicates Red, please move the switch closer to the HUB. If your switch indicates Green, please try running an Exclusion to reset your switch.

2

Exclusion

To Exclude your dimmer, put your HUB in exclusion mode and press the Configuration Button three (3) times.

6

Additional Special Features Procedure

Configuration/Favorites Button: This switch allows for ultimate customization via the Configuration Button (rather than via a Z-Wave HUB) such as changing the dimming speed, minimum/maximum dim level, invert switch, default dim level (local & Z-Wave), the power on state, LED Indicator Color, LED Indicator Intensity, and LED Indicator Intensity (When Off). In addition, the config button doubles as a favorites button allowing you to create your favorite scene (Z-Wave Central Scene) and press the config/favorite button to activate it. LED Bar Notifications: The LED Bar will alert you when an action has taken place (ie: Door is unlocked after 10pm, your switch will light up Red or your alarm panel is armed, it can flash green, etc). Central Scene Control: Allows up to 11 different scenes to be added to your switch (10x on the Paddles, 1x on the Config/Favorites Button). A use-case would be: Double Tap down on the switch to activate a bedtime scene that turns off all smart lights, locks the doors, and sets the temperature to 68. Smart Bulb Compatible: The internal relay can be disabled allowing for full control of Smart Bulbs (Z-Wave bulbs preferred for maximum control). This fixes the issue of when someone flips a switch and turns off power to your smart bulb (causing it to go offline). Now, you can disable the internal relay and send a scene command to turn on/off your bulb. Or directly associate the switch to the bulb to dim up/down and send a scene command to change the colors. OTA (Over-the-Air) Enabled: As with all our devices, the dimmer allows you to receive our latest firmware updates (NOTE: Please make sure your HUB supports this).

5

Factory Reset Procedure

You may factory reset the switch by holding down the Config Button for twenty (20) or more seconds. The LED Bar will turn Red and blink three (3) times to confirm. However, we recommend using a certified Z-Wave controller to remove the device from your network for factory resetting the switch. Only use either of these procedures in the event that the network primary controller is missing or otherwise inoperable.

Electric meter

Import

Electric Meter Consumption
