Dimmer Wall Switch – Z-Wave Alliance Product Catalog

Back to Listing

Product Recognition

Certification Number

ZC10-19066525

Name

Dimmer Wall Switch

Short Description

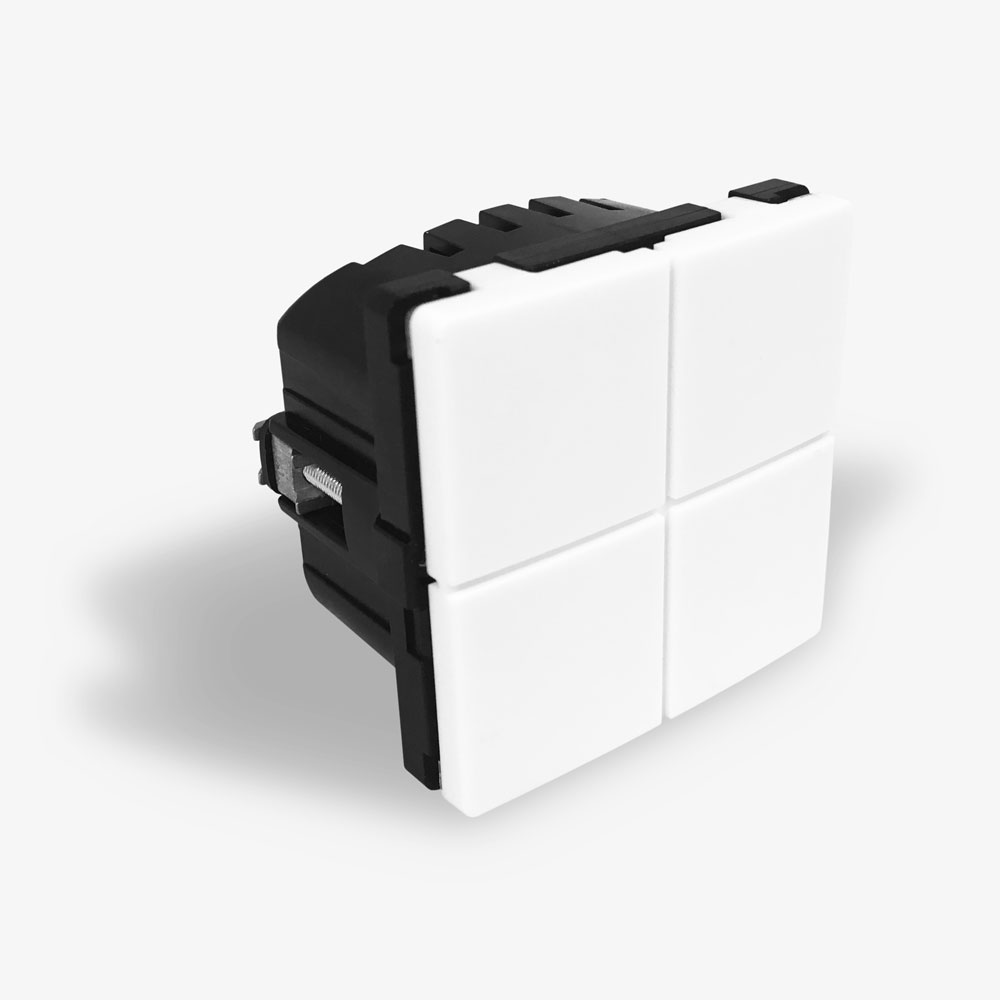

MATRIX ZDB5100 is a dimmer wall switch module with four backlit pushbuttons. MATRIX is designed to fit into 1-module FUGA® wall boxes (Danish standard).

Long Description

The front is elegantly designed with a diffused backlight in each of the four pushbuttons. The pushbuttons can light up in all colors which can be used to show the status of a lamp, as orientation light during nighttime, visual alarm and much more. Each pushbutton is a tactile switch designed that can hold up to four functions and control either a wired lamp or other Z-Wave devices, e.g. other light dimmers, roller shutters and power outlets. The light dimmer can dim all dimmable light sources from 0-250 W. MATRIX ZDB5100 is designed to fit into all FUGA® compatible wall boxes and cover frames.

Brand

Logic Group A/S

Product Identifier

ZDB5100

OEM Version

HW: 2 FW: 1.01

Hardware Platform

ZM5101

Z-Wave Version

6.71.03

Library Type

SLAVE_ENHANCED_232

Device Type

Wall Controller

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0234

Product Type ID

0x0003

Product ID

0x0121

User Icon

0x1600

Installer Icon

0x1600

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

All Lighting Devices, Dimming Lighting Devices

Countries / Regions

European Union

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Operating pushbutton(s) for dimmer

This parameter specifies which pushbutton(s) that shall be used to control the built-in dimmer. The parameter is a bitmask, so each of the values can be added together in order to have several pushbuttons to operate the dimmer.

From	To	Description
2	2	Pushbutton 2 controls the dimmer.
4	4	Pushbutton 3 controls the dimmer.
8	8	Pushbutton 4 controls the dimmer.
1	1	Pushbutton 1 controls the dimmer.
0	0	No local operation of the dimmer.

Timer value for pushbutton 1

This parameter specifies the time used in previous configuration parameter. This parameter is only applicable if previous parameter has value 1 or 2.

43200

300

From	To	Description
0	43200	Specifies the time in seconds. Default is 300 = 5 minutes.

OFF indication RGB-saturation for pushbutton 1

This parameter specifies the saturation levels for the red, green and blue LEDs, when OFF status is indicated. (Default is the OFF-state indicated as a low white light on 5%). Byte 1: Colour saturation, red. Byte 2: Colour saturation, green. Byte 3: Colour saturation, blue. Byte 4: LED control.

255

From	To	Description
0	255	Byte 3: Specifies the saturation for the blue LEDs. (Default is 47)
0	255	Byte 4: LED indicator control; see the application note about this parameter. (Default is 0)
0	255	Byte 1: Specifies the saturation for the red LEDs. (Default is 47)
0	255	Byte 2: Specifies the saturation for the green LEDs. (Default is 47)

Pushbutton 2 functionality

This parameter specifies the functionality of pushbutton 2.

From	To	Description
0	0	Standard toggle-function, the state is switched between on and off, dimming up and down.
1	1	Automatic turn off after the time has expired (staircase lighting function), the time is specified in the next configuration parameter.
2	2	Automatic turn on after the time has expired, the time is specified in the next configuration parameter.
3	3	Always turn off or dim down. Using this parameter, the pushbutton can only send ‘off’ or ‘dim down’ commands. Use this in pair with another pushbutton with value 4 (see chapter 2.6 in the manual)
4	4	Always turn on or dim up. Using this parameter, the pushbutton can only send ‘on’ or ‘dim up’ commands. Use this in pair with another pushbutton with value 3 (see chapter 2.6 in the manual)

Timer value for pushbutton 2

This parameter specifies the time used in previous configuration parameter. This parameter is only applicable if previous parameter has value 1 or 2.

43200

300

From	To	Description
0	0	Enhanced LED control is disabled
0	43200	Specifies the time in seconds. Default is 300 = 5 minutes
1	1	Enhanced LED control is enabled

OFF indication RGB-saturation for pushbutton 2

255

From	To	Description
0	255	Byte 4: LED indicator control; see the application note about this parameter (Default is 0)
0	255	Byte 2: Specifies the saturation for the green LEDs (Default is 47)
0	255	Byte 3: Specifies the saturation for the blue LEDs (Default is 47)
0	255	Byte 1: Specifies the saturation for the red LEDs (Default is 47)

Timer value for pushbutton 4

This parameter specifies the time used in previous configuration parameter. This parameter is only applicable if previous parameter has value 1 or 2.

43200

300

From	To	Description
0	43200	Specifies the time in seconds. Default is 300 = 5 minutes

Multi-Level Switch Set values for pushbutton 4

Byte 1: Enable / Disable. Byte 2: Upper switch value. Byte 3: Lower switch value. Byte 4: Not used – must be set to 0.

255

From	To	Description
0	0	Byte 4: Not used – must be set to 0.
0	99	Byte 2: When single pressing the pushbutton for ON, a Multilevel Switch Set with this value will be send to devices in association group 4
0	0	Byte 1: Disabled – A single activation of the pushbutton will not send commands to devices in association group 4.
0	99	Byte 3: When single pressing the pushbutton for OFF, a Multilevel Switch Set with this value will be send to devices in association group 4. (Default = 0)
1	1	Byte 1: Enabled – A single activation will send commands to devices in association group 4. Devices will receive commands with the values set in Byte 2 and 3 (Default).
255	255	Byte 2: When single pressing the pushbutton for ON, a Multilevel Switch Set with this value will be send to devices in association group 4. (Default)

Binary Switch Set support for pushbutton 4

This parameter specifies how received Binary Switch Set commands are handled.

From	To	Description
0	0	Binary Switch Set only controls the pushbutton indicator LEDs, ON/OFF
1	1	Binary Switch Set controls the internal switch status and the pushbutton indicator LEDs
2	2	Binary Switch Set is handled as if the user had activated the pushbutton, including transmission of commands via the association groups

Pushbutton 4 LED indication

This parameter specifies how the LED indication is controlled.

From	To	Description
0	0	Internal LED control is disabled, only external commands control the indication.
1	1	The LED indication follows the switch status
2	2	The LED indication follows the switch status – with inverted functionality
3	3	Same as 1
4	4	Same as 2
5	5	The LED indication follows the status of the internal dimmer, ON or OFF
6	6	The LED indication follows the status of the internal dimmer with inverted functionality, ON or OFF
7	7	The LED indicator is ON for 5 seconds when the pushbutton is activated

Colour commands for pushbutton 4 LED indication

This parameter specifies how Command Class Switch Color commands are handled.

From	To	Description
0	0	Direct control; the LED indication shows the received colour immediately, until the pushbutton is activated
1	1	Colour command sets the colour for OFF indication
2	2	Colour command sets the colour for ON indication

ON indication RGB-saturation for pushbutton 4

This parameter specifies the saturation levels for the red, green and blue LEDs, when ON status is indicated. (Default is the ON-state indicated by a 50% blue colour). Byte 1: Colour saturation, red. Byte 2: Colour saturation, green. Byte 3: Colour saturation, blue. Byte 4: LED control.

255

From	To	Description
0	255	Byte 1: Specifies the saturation for the red LEDs. (Default is 0)
0	255	Byte 2: Specifies the saturation for the green LEDs. (Default is 0)
0	255	Byte 3: Specifies the saturation for the blue LEDs. (Default is 127)
0	255	Byte 4: LED indicator control; see the application note about this parameter. (Default is 0)

OFF indication RGB-saturation for pushbutton 4

255

From	To	Description
0	255	Byte 1: Specifies the saturation for the red LEDs. (Default is 47)
0	255	Byte 2: Specifies the saturation for the green LEDs. (Default is 47)
0	255	Byte 4: LED indicator control; see the application note about this parameter. (Default is 0)
0	255	Byte 3: Specifies the saturation for the blue LEDs. (Default is 47)

Duration of on/off

This parameter specifies the duration when turning the light on or off.

255

From	To	Description
0	0	Immediately
1	127	Time in seconds
128	255	Time in minutes (minus 127) from 1 – 128 minutes, where 128 is 1 minute

Dimmer mode

The dimmer can work in three different modes: on/off, leading edge or trailing edge.

From	To	Description
0	0	No dimming, only on/off (0/100%).
1	1	Trailing edge dimming
2	2	Leading edge dimming

Dimmer minimum level

This parameter specifies the actual level of the dimmer output when set to 0%.

From	To	Description
0	99	Corresponds to 0 – 99%

Dimmer maximum level

This parameter specifies the actual level of the dimmer output when set to 99%.

From	To	Description
0	99	Corresponds to 0 – 99%

Central Scene notifications

This parameter can be used for disabling Central Scene notifications.

From	To	Description
0	0	Notifications are disabled
1	1	Notifications are enabled

Double-activation functionality

This parameter specifies the reaction when double-activating the pushbuttons.

From	To	Description
0	0	Double-activation disabled
1	1	Double-activation sets light to 100%

Triple-activation of pushbutton 1

This parameter can be used for disabling the Z-Wave network add/remove process when triple-activating pushbutton 1. If disabled, the triple-activation functionality can be used as a Central Scene notification.

From	To	Description
0	0	Triple-activation of pushbutton 1, does not start the add/remove process.
1	1	Triple-activation of pushbutton 1, starts the add/remove process

Pushbutton debounce timer

Pushbutton input debounce time in 0.01 seconds resolution.

255

From	To	Description
0	255	0 – 2.55 seconds. Default is 5, which equals to a debounce-filter on 50 milliseconds (0.05 seconds)

Duration of dimming

This parameter specifies the duration of a full regulation of the light from 0% to 100%. A regulation of the light with 1% will take 1/100 of the specified duration. This is used when a pushbutton is held-down for controlling the dimming, and when the dimming is fulfilled from other Z-Wave devices.

255

From	To	Description
0	0	Immediately
1	127	Duration in seconds.
128	255	Duration in minutes (minus 127) from 1 – 128 minutes, where 128 is 1 minute
