Certification Number	ZC10-17035480

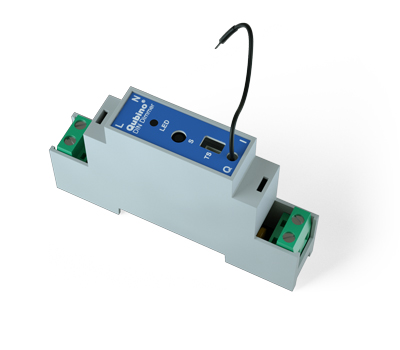

Name	DIN Dimmer
Short Description	DIN Dimmer is a DIN rail mounted dimmer for light bulbs. You can control it either remotely through the Z-Wave network or through wall switches. It also measures power consumption and supports the connection of a digital temperature sensor.
Long Description	DIN Dimmer is a DIN rail mounted dimmer for light bulbs. You can control it either remotely through the Z-Wave network or through wall switches. It also measures power consumption and supports the connection of a digital temperature sensor.
Brand	QUBINO
Product Identifier	ZMNHSD1
OEM Version	HW: 2 FW: 2.02:02.02
Hardware Platform	ZM5202
Z-Wave Version	6.51.07
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0159
Product Type ID	0x0001
Product ID	0x0052
User Icon	0x1C00
Installer Icon	0x1C00
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_SENSOR_MULTILEVEL_V7 Sensor Multilevel V7 0x31 7 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_METER_V4 Meter V4 0x32 4 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2 Association Group Information V2 0x59 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Qubino_DIN Dimmer PLUS extended manual_eng_2.3.pdf
Features	Feature Values Switch Type Value Push Button Color Value Light Blue Sensors Value Air Temperature
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Lifeline group (reserved for communication with the main controller)
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 5 Working mode With this parameter is possible to change the module presentation on the user interface NOTE: After parameter change, first exclude module (without setting parameters to default value) then wait at least 30s and then re include the module! 0 1 0 0 0 From To Description 0 0 0 0 Dimmer mode 1 1 Switch mode 1 Input switch type Available configuration parameters (data type is 1 Byte DEC): • default value 0 • 0 - mono-stable switch type (push button) • 1 - bi-stable switch type 0 1 0 0 0 From To Description 1 1 Bi-stable switch type 0 0 Mono-stable switch type (push button) 10 Activate / deactivate functions ALL ON / ALL OFF DIN Dimmer module responds to commands ALL ON / ALL OFF that may be sent by the main controller or by other controller belonging to the system. 0 2 0 0 255 From To Description 0 0 ALL ON is not active, ALL OFF is not active 1 1 ALL ON is not active, ALL OFF active 2 2 ALL ON active, ALL OFF is not active 255 255 ALL ON active, ALL OFF active 11 Automatic turning off output after set time Turns off the output after set time. 0 2 0 0 0 From To Description 0 0 Auto OFF disabled 1 32536 = 1second - 32536 seconds Auto OFF enabled with define time, step is 1 second 42 Power reporting in Watts by time interval Set value means time interval (0 – 32767) in seconds, when power report is send. Reporting enabled. Power report is send with time interval set by entered value. Please note, that too fast reporting can cause too much Z-Wave traffic resulting in Z-Wave poor response. 0 2 0 0 0 From To Description 0 0 Reporting disabled 1 32767 = 1 second - 32767 seconds. Reporting enabled. Power report is send with time interval set by entered value. Please note, that too fast reporting can cause too much Z-Wave traffic resulting in Z-Wave poor response 60 Minimum dimming value The minimum level may not be higher than the maximum level! 1% min. dimming value is defined by Z-Wave multilevel device class. When the switch type is selected as Bi-stable, it is not possible to dim the value between min and max. If Switch_multilevel_set is set to the value “0”, the output is turned OFF. If Switch_multilevel_set is set to the value “1”, the output is set to the minimum diming value. 0 1 0 0 1 From To Description 1 1 = 1% (minimum dimming value) 1 98 = 1% - 98%, step is 1%. Minimum dimming values is set by entered value. 61 Maximum dimming value The maximum level may not be lower than the minimum level! 99% max. dimming value is defined by Z-Wave multilevel device class. When the switch type is selected as Bi-stable, it is not possible to dim the value between min and max. 0 1 0 0 99 From To Description 99 99 = 99% (Maximum dimming value) 2 99 = 2% - 99%, step is 1%. Maximum dimming values is set by entered value 65 Dimming time (soft on/off) Set value means time of moving the DIN Dimmer between min. and max. dimming values by short press of push button I or controlled through UI (BasicSet). 0 2 0 0 100 From To Description 100 100 = 1s 50 255 = 500 mseconds - 2550 mseconds (2,55s), step is 10 mseconds 66 Dimming time when key pressed Time of moving the DIN Dimmer between min. and max dimming values by continues hold of push button I or associated device. 0 2 0 0 3 From To Description 3 3 = 3s 1 255 1 second - 255 seconds 68 Dimming duration This parameter is used with association group 3. The Duration field MUST specify the time that the transition should take from the current value to the new target value. A supporting device SHOULD respect the specified Duration value. 0 1 0 0 0 From To Description 0 0 Dimming duration according to parameter 66 1 127 From 1 to 127 seconds 110 Temperature sensor offset settings Set value is added or subtracted to actual measured value by sensor. Available configuration parameters (data type is 2 Byte DEC): • default value = 32536 • 32536 = offset is 0.0C • 1 - 100 = value from 0.1 °C to 10.0 °C is added to actual measured temperature. • 1001 - 1100 = value from -0.1 °C to -10.0 °C is subtracted to actual measured temperature. 0 2 0 0 32536 From To Description 1001 1100 Value from -0.1 degrees Celsius to 10.0 degrees Celsius to -10.0 degrees Celsius to 10.0 degrees Celsius is subtracted to actual measured temperature 32536 32536 Offset is 0.0 degrees Celsius 1 100 Value from 0.1 degrees Celsius to 10.0 degrees Celsius is added to actual measured temperature 120 Digital temperature sensor reporting Digital temperature sensor reporting If digital temperature sensor is connected, module reports measured temperature on temperature change defined by this parameter. Available configuration parameters (data type is 1 Byte DEC): • default value 5 = 0,5°C change • 0 = reporting disabled • 1- 127 = 0,1°C - 12,7°C, step is 0,1°C 0 1 0 0 5 From To Description 1 127 = 0,1 degrees Celsius - 12,7 degrees Celsius, step is 0,1 degrees Celsius 5 5 0,5 degrees Celsius change 0 0 Reporting disabled 67 Ignore start level This parameter is used with association group 3.A receiving device SHOULD respect the start level if the Ignore Start Level bit is 0. A receiving device MUST ignore the start level if the Ignore Start Level bit is 1. 0 1 0 0 0 From To Description 0 0 Respect start level 1 1 Ignore start level
Texts	ID Description Value 2 Exclusion • Connect module to power supply • bring module within maximum 1 meter (3 feet) of the main controller, • enable add/remove mode on main controller, • press push button I1 five times within 3s (5 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply or • press service button S (only applicable for 24 V SELV supply voltage) for more than 6 second. By this function all parameters of the module are set to default values and own ID is deleted. If push button I1 is pressed three times within 3s (or service button S is pressed more than 2 and less than 6 seconds) module is excluded, but configuration parameters are not set to default values. NOTE 1: If the module is included with parameter 1 value 3, 4 or 5 and module reset is done, wait at least 30s before next inclusion. NOTE 2: Please use this procedure only when the network primary controller is missing or otherwise inoperable. 1 Inclusion • Connect module to power supply (with temperature sensor connected - if purchased), • enable add/remove mode on main controller • auto-inclusion (works for about 5 seconds after connected to power supply) or • press service button S for more than 2 second or • press push button I1 three times within 3s (3 times change switch state within 3 seconds). NOTE1: For auto-inclusion procedure, first set main controller into inclusion mode and then connect module to power supply. NOTE2: When connecting temperature sensor to module that has already been included, you have to exclude module first. Switch off power supply, connect the sensor and re-include the module. 5 Factory Reset • Press push button I1 five times within 3s (5 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply or • press service button S (only applicable for 24 V SELV supply voltage) for more than 6 second. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature
Supports NWI	Yes
Supports Explorer Frames	Yes
