Product Recognition | |
|---|
Certification Number | ZC10-20036871 |
|---|
Name | Display QB3 |
|---|

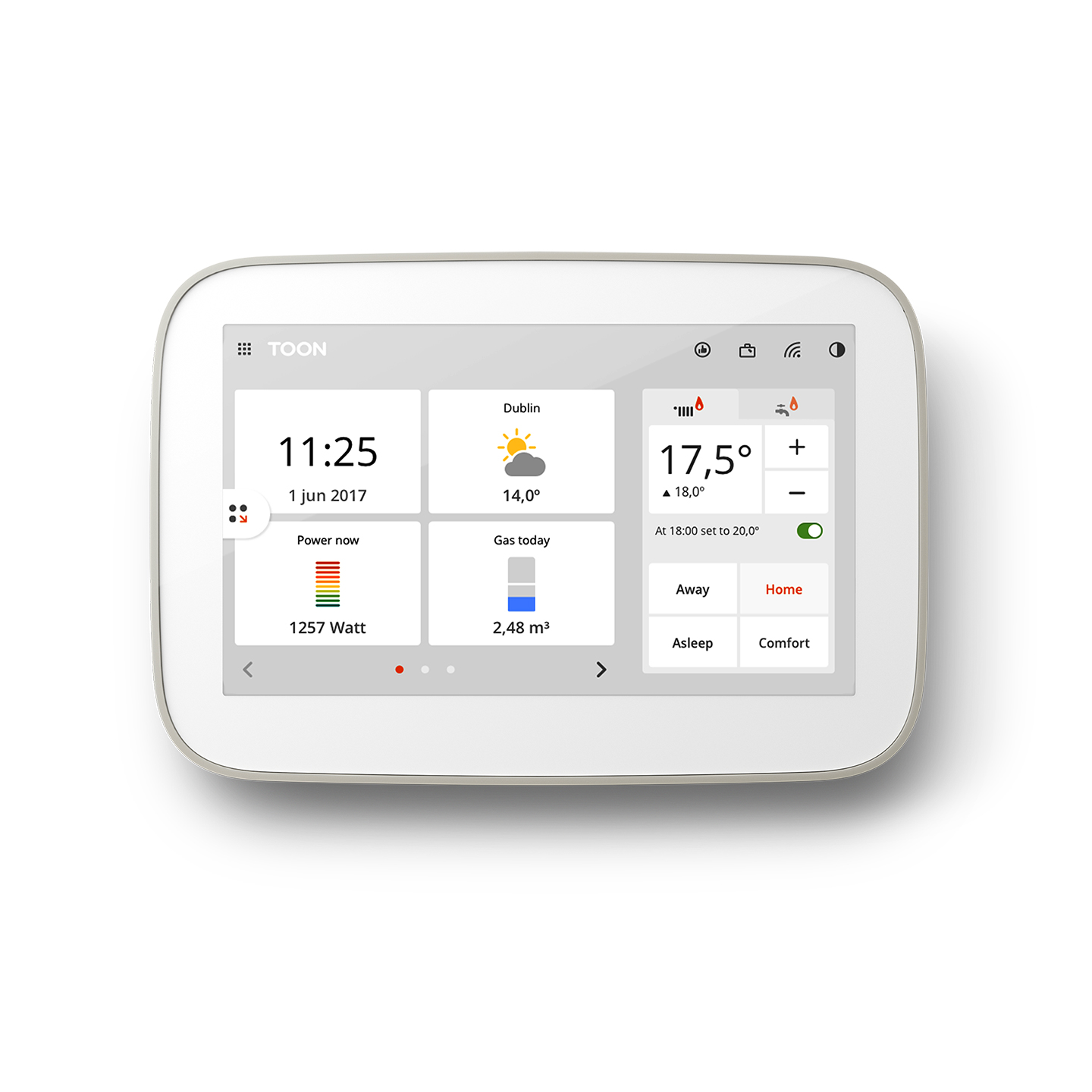

Short Description | Quby‘s latest generation display goes beyond controlling domotics and home temperature. The high-resolution display connects to Z-Wave enabled energy and gas meters for efficiency insights. It also has built-in light, proximity, air quality and humidity sensors. |
|---|
Long Description | Quby’s latest generation display and app serve as the ultimate remote for the home: controlling the heating system, various home domotics (smart plugs, smoke detectors, connected lights and more) and providing insights into the home’s energy efficiency and environment.
Behind the high-resolution (1024x600) glass screen with capacitive touch, a fast processor and 512 MB RAM memory enable fast operational speed and information processing.
With the Z-Wave 500 chip, Quby’s display solution can cooperate perfectly with all kinds of domotics, tablets and phones.
The humidity sensor easily detects too dry or too moist air. Together with the air quality sensor (VOC), Quby’s display can guarantee healthy air quality in homes. Presence and light sensors help the display’s screen to adapt to someone approaching the display, or light changes in the room.
The bedrock of Quby’s display solution remains insight and control. Insight into energy, water and gas usage, into the usage of individual appliances and into air quality. Z-Wave enables the display to connect to smart meters and smart plugs, so energy insights can be provided to the user.
To sum it up; Quby’s latest generation display gives users full control over their efficiency, lights, smart plugs, security and various domotics. Now, that’s smart. |
|---|
Brand | Quby |
|---|
Product Identifier | QB3.X |
|---|
Product Line | Display |
|---|
OEM Version | HW: 2 FW: 6.07:07.11:02.03 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.81.06 |
|---|
Library Type | CONTROLLER_BRIDGE |
|---|
Device Type | Gateway |
|---|
Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
|---|
Manufacturer ID | 0x0130 |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0003 |
|---|
User Icon | 0x0500 |
|---|
Installer Icon | 0x0500 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Controllers, Gateway Controller |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_NETWORK_MANAGEMENT_INSTALLATION_MAINTENANCE_V2 | Network Management Installation and Maintenance V2 | 0x67 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_INCLUSION_CONTROLLER | Inclusion Controller | 0x74 | 1 | COMMAND_CLASS_ASSOCIATION_V3 | Association V3 | | 0 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V4 | Multi-Channel Association V4 | | 0 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TIME | Time | 0x8A | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NETWORK_MANAGEMENT_INCLUSION_VERSION_3 | Network Management Inclusion V3 | 0x34 | 0 | COMMAND_CLASS_NETWORK_MANAGEMENT_PROXY_V2 | Network Management Proxy V2 | 0x52 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_NETWORK_MANAGEMENT_BASIC_V2 | Network Management Basic V2 | 0x4D | 2 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CMD | Multi-Command | 0x8F | 1 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_ASSOCIATION_V3 | Association V3 | | 0 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V4 | Multi-Channel Association V4 | | 0 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL | Sensor Multilevel | 0x31 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_METER_TBL_PUSH | Meter Table Push | 0x3E | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_THERMOSTAT_SETPOINT | Thermostat Setpoint | 0x43 | 1 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_METER_TBL_CONFIG | Meter Table Config | 0x3C | 1 | COMMAND_CLASS_METER_TBL_MONITOR | Meter Table Monitor | 0x3D | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_METER_V4 | Meter V4 | 0x32 | 4 | COMMAND_CLASS_MULTI_CMD | Multi-Command | 0x8F | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 1 | 0 | Lifeline | Lifeline, only used for Device Reset Locally Notification. |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | On the graphical user interface only. | 1 | Classic Inclusion | To start learn mode, go to the 'Network functionality' tab and press either the 'Classic' or 'NWI'
button, under the 'Learn Mode' header. This will open up a learn mode popup.
Press the 'Start' button to start the learn mode. The dialog will show this device's DSK, which can be
used to include the device securely into an existing Z-Wave network. Enter the first 5 digits of the
DSK on the including node.
Learn mode can be used to add this device into another Z-Wave network. It can also be used to
receive network information from another controller
When learn mode has completed, the dialog will be updated to show the status. Press the 'Close'
button to close the dialog. | 2 | Classic Exclusion | To exclude a device from the network, go to the 'Network functionality' tab and press the 'Exclude'
button. This will open up the 'Exclude Device' popup.
Press the 'Start' button to start the exclusion process. Next press the exclusion button (or use
another way to start the learn mode) on the to-be-excluded node.
When the exclusion process has completed successfully, the dialog will show which node has been
excluded. Press the 'Close' button to close the dialog. | 5 | Factory Reset Procedure | The Z-Wave functionality of the device can be reset to factory defaults by using the 'Factory Reset'
button on the 'Network functionality' tab. Pressing this button will open the Factory Reset dialog.
If you press the 'Reset' button in the dialog, all Z-Wave functionality will be reset to factory defaults.
All information about included devices will be lost. A new HomeID will be generated following a
successful factory reset. Please use this procedure only when the network primary controller is
missing or otherwise inoperable. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption | Electric meter | Export | Electric Meter Production | Gas meter | Import | Gas Meter Consumption | Gas meter | Export | Gas Meter Production | Water meter | Import | Water Meter Consumption | Water meter | Export | Water Meter Production | Heating meter | Import | Heating Meter Consumption | Heating meter | Export | Heating Meter Production |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
