Product Recognition | |
|---|
Certification Number | ZC10-17105815 |
|---|

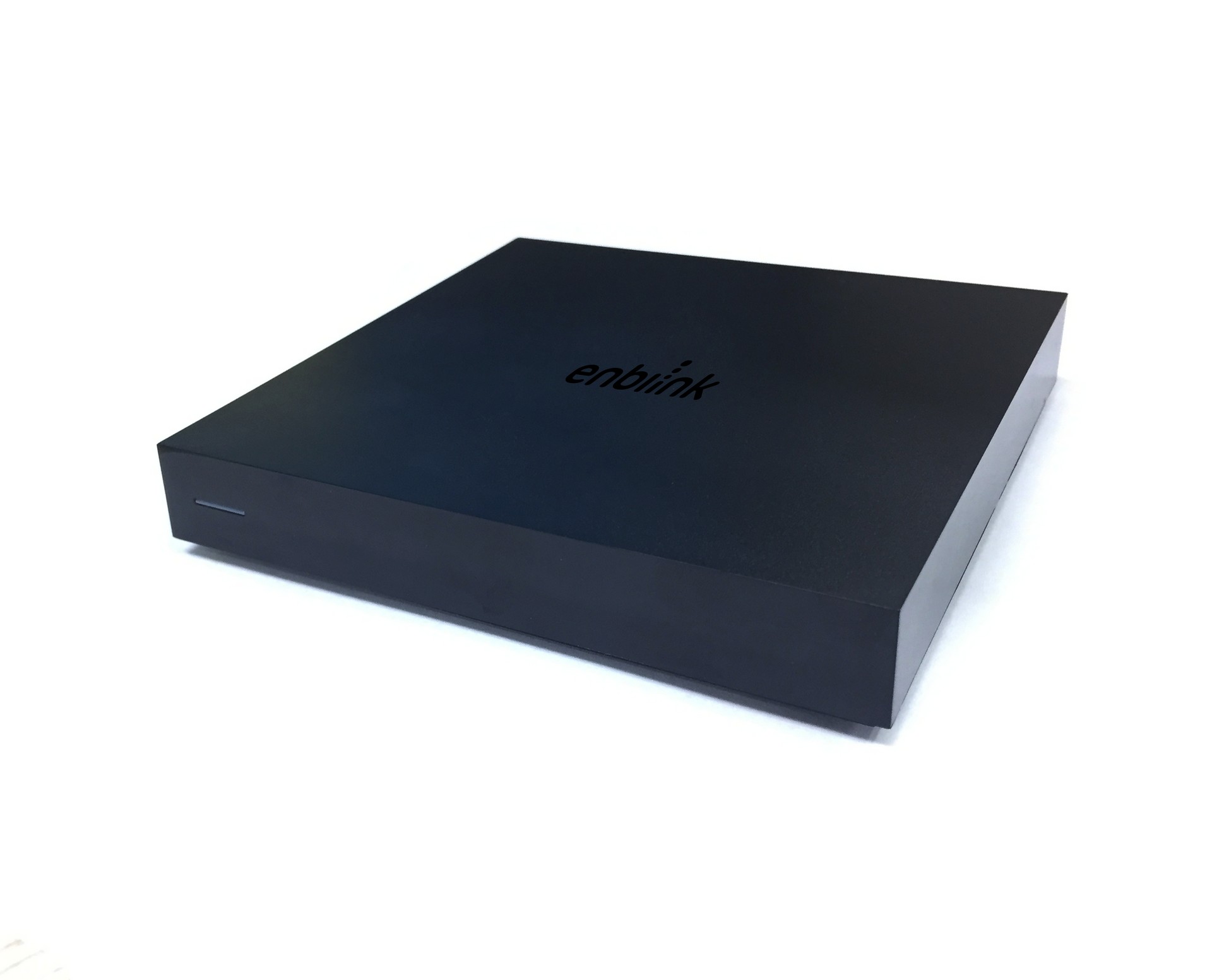

Name | DKC1001 |
|---|
Short Description | DKC1001 is a versatile Z-Wave gateway equipped with Wi-Fi, Ethernet and Blutooth LE. |
|---|
Long Description | DKC1001 is a versatile Z-Wave gateway equipped with Wi-Fi, Ethernet and Blutooth LE.
It gives full control of connected Z-Wave devices.
Wi-Fi and Ethernet can be used for uplink connection while BLE is for configuration. |
|---|
Brand | Enblink |
|---|
Product Identifier | DKC1001 |
|---|
OEM Version | HW: 1 FW: 4.62:01.05 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.61.01 |
|---|
Library Type | CONTROLLER_STATIC |
|---|
Device Type | Central Controller |
|---|
Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
|---|
Manufacturer ID | 0x014d |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0004 |
|---|
User Icon | 0x0100 |
|---|
Installer Icon | 0x0100 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | All Controllers, Gateway Controller |
|---|
Countries / Regions | Republic of Korea |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SWITCH_BINARY_V2 | Switch Binary V2 | 0x25 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_SENSOR_MULTILEVEL_V10 | Sensor Multilevel V10 | 0x31 | 10 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_DOOR_LOCK_V3 | Door Lock V3 | 0x62 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_METER_V4 | Meter V4 | 0x32 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Manufacturer |
| Communications Connections | Value |
|---|
Ethernet (Wired) | Ethernet (Wireless/WiFi) | USB (Universal Serial Bus) |
| Sensors | Value |
|---|
Motion/No Motion (Binary) | Air Temperature | Luminance | Moisture | Humidity | Open/Closed (Binary) | Smoke Density | Heat | Freeze | Vibration/Shock (Binary) | Ultraviolet Index | Heart Rate | General Purpose | Power | Velocity | Direction | Atmospheric Pressure | Barometric Pressure | Solar Radiation | Dew Point | Rain Rate | Tide Level | Weight | Voltage | Current | Air Flow | Tank Capacity | Distance | Rotation | Water Temperature | Soil Temperature | Seismic Intensity | Seismic Magnitude | Loudness | Time | Formaldehyde CH2O Level | Radon Concentration | Methane Density | Volatile Organic Compound | Soil Humidity | Soil Reactivity | Soil Salinity | Blood Pressure | Muscle Mass | Fat Mass | Bone Mass | Total Body Water | Basic Metabolic Rate | Body Mass Index | Acceleration X-Axis | Acceleration Y-Axis | Acceleration Z-Axis | Water Flow | Water Pressure | RF Signal Strength | Particulate Matter | Respiratory Rate | Electrical Resistivity | Electrical Conductivity | Carbon Dioxide | Carbon Monoxide | Frequency | Target Temperature |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Texts | ID | Description | Value |
|---|
23 | Controller Inclusion | Tap ""ADD"" button in controller functions menu | 24 | Controller Exclusion | Tap ""REMOVE"" button in controller functions menu | 3 | Learn Mode (adding another controller) | Tap ""LEARN"" button in controller functions menu | 5 | Factory Reset | Tap ""RESET"" button in controller functions menu
If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
