| Certification Number | ZC10-16095213 |
|---|
| Name | Dome On/Off Plug-In Switch |
|---|
| Short Description | Dome™ Z-Wave On/Off Plug-In Switch with Energy Monitoring, Miniature, Z-Wave Extender |
|---|

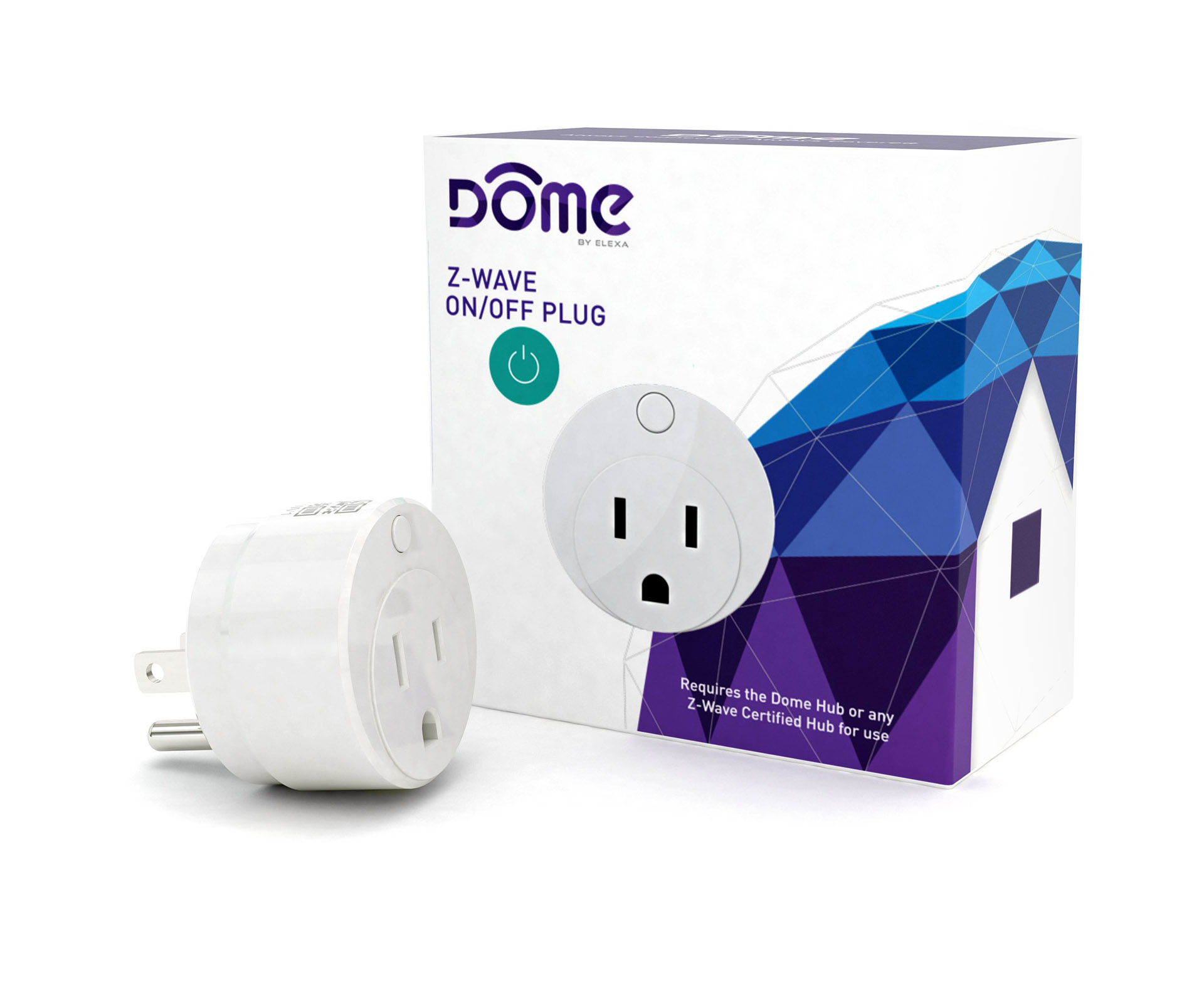

| Long Description | The Dome™ Home Automation DMOF1 On/Off Plug is designed to give you control over small appliances from your smart device wherever you are. Conserve energy and save money always knowing how much power is used by every monitored appliance. Plug in your lamp and have it turn on/off on demand or according to preset schedule (Z-Wave Certified Hub required). Also great for humidifiers, dehumidifiers, air conditioners, space heaters, fans and holiday lights. It never blocks the other side of your duplex receptacle with the ergonomic design. Extra-long Z-Wave wireless range (up to 150 ft) allows you to place it where it’s needed without worrying if the signal is reaching your Z-Wave Hub. It also acts as a Z-Wave range extender. Dome™ DMOF1 On/Off Plug comes with a 1-year limited warranty. Measurements in inches: 1.625 x 1.625 x 2. Dome™ Home Automation system gives your family peace of mind and security you can count on. With Dome™, you’re always connected and always covered.
• Used to turn On/Off lamps and small appliances for up to 13 Amps (1,560 Watts). Monitors energy consumption of attached device and shuts down in case of overload with build-in protection circuit
• Ergonomic design allows it to only occupy single side of electrical duplex leaving the second outlet fully accessible. It doubles as Z-Wave signal extender
• Up to 150-foot range. Operating Temperature: 32°F - 112°F
• Z-Wave Plus Certified. Requires a Z-Wave Certified Hub to operate
• Tested to work with SmartThings, Vera, Staples Connect, HomeSeer, Nexia, Piper, URC, Harmony. Not supported by Wink, DSC, ADT Pulse, 2Gig, Napco, Interlogix, Honeywell (Dome is not associated with listed brands) |
|---|
| Brand | Dome |
|---|
| Product Identifier | DMOF1 |
|---|
| OEM Version | HW: 65 FW: 3.70 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | On/Off Power Switch |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x021F |
|---|
| Product Type ID | 0x0003 |
|---|
| Product ID | 0x1087 |
|---|
| User Icon | 0x0700 |
|---|
| Installer Icon | 0x0700 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | Energy Meters, All Lighting Devices, On/Off Switches/Devices |
|---|
| Countries / Regions | United States of America |
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Color | | | Switch Load Capacity Watts | | | Supported Meter Type | | | Switch Type | | Value |
|---|
| Push Button with Indicator |
|
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Group 1 is the “Lifeline” group, which can hold five devices. The On/Off Plug-In Switch sends this group a Notification Report and Binary Switch Report whenever it is turned on or off. It also sends a Meter Report incrementally based on time (see Param 2,) or when a
relative change in power usage is detected (see Param 6.) Finally, the On/Off Plug-In Switch sends this group a Device Reset Locally notification to remove itself from the Z-Wave network. | | 2 | 5 | 0 | The On/Off Plug-In Switch sends a BASIC_SET(FF) command to Association Group 2 to directly trigger devices (like a siren, chime, etc.) when the current passes above the level set in Parameter 3. When the current drops below the level again, a BASIC_SET(00) command is sent to reset the device (e.g. turn off the siren.) This Group can hold five devices. | | 3 | 5 | 0 | The On/Off Plug-In Switch sends Notification Reports to Group 3, and it can hold five devices. |
|
|---|
| Configuration Parameters | | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
| 10 | Enable/Disable BUTTON | If this parameter is enabled, the user can turn the device on or off using the BUTTON. | 0 | 1 | 0 | 0 | 150 | | From | To | Description |
|---|
| 0 | 0 | Disable Button | | 1 | 1 | Enable Button |
| | 1 | Enable/Disable METER_REPORT | This parameter enables/disables the METER_REPORT function, which sends periodic reports to Group1 members with information on line voltage, current load, and power & energy consumption. Also see Param 2 & 6. | 0 | 1 | 0 | 0 | 1 | | From | To | Description |
|---|
| 0 | 0 | Disable Meter Functionality | | 1 | 1 | Enable Meter Functionality |
| | 2 | METER_REPORT Interval | This parameter sets the amount of time between each successive METER_REPORT signal sent to Group 1 (also see Param 1 & 6.) | 0 | 2 | 0 | 0 | 300 | | From | To | Description |
|---|
| 1 | 65535 | in seconds |
| | 5 | Enable/Disable Indicator LED | This parameter enables or disables the indicator LED. | 0 | 1 | 0 | 0 | 1 | | From | To | Description |
|---|
| 0 | 0 | Disable LED | | 1 | 1 | Enable LED |
| | 6 | Current change METER_REPORT level | In addition to sending a METER_REPORT to Group 1 in the time interval set by Param 2, the On/Off Plug-In Switch also sends a METER_REPORT when it detects a relative change in current flow. This parameter sets this minimum current change amount, in percent, at which point the On/Off Plug-In Switch will send a METER_REPORT to Group 1. Also see Param 1 & 2. | 0 | 1 | 0 | 0 | 5 | | From | To | Description |
|---|
| 1 | 100 | in percent change in amps |
| | 8 | Enable/Disable Timer Function | If this parameter is enabled, whenever the On/Off Plug-In Switch is turned on, it will automatically turn off after a set amount of time (set in Param 9.) | 0 | 1 | 0 | 0 | 0 | | From | To | Description |
|---|
| 0 | 0 | Disable Timer Functionality | | 1 | 1 | Enable Timer Functionality |
| | 9 | Set Timer Time Interval | Sets the time interval before the On/Off Plug-In Switch automatically shuts off. See Param 8. | 0 | 2 | 0 | 0 | 150 | | From | To | Description |
|---|
| 1 | 65535 | in Minutes |
| | 7 | Remember On/Off Status | This parameter sets whether or not the On/Off Plug-In Switch will remember if it was turned on or off when it was last plugged in. If enabled, whenever the device is rebooted (plugged in and out of the main outlet,) it will resume its state from before the reboot. If disabled, it will turn on everytime the device is rebooted. | 0 | 1 | 0 | 0 | 1 | | From | To | Description |
|---|
| 0 | 0 | Do not Remember On/Off Status | | 1 | 1 | Remember On/Off Status |
|
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | Follow the instructions for your Z-Wave certified Controller to enter inclusion mode.
When prompted by the Controller:
1. For proper inclusion, bring the On/Off Plug-In Switch to within 10 feet of your Controller and plug it in. After inclusion, the device can be moved to any desired location.
2. Press the Connect Button quickly 3 times in a row.
The LED Indicator will flash five times indicating inclusion. | | 2 | Exclusion | Follow the instructions for your Z-Wave certified Controller to enter exclusion mode.When prompted by the Controller:
1. Plug in the On/Off Plug-In Switch within range of your Z-Wave Controller.
2. Press the Connect Button quickly 3 times in a row.
The LED Indicator will flash five times indicating exclusion/disconnection. | | 5 | Factory Reset | To disconnect from the Z-Wave Network and restore factory default settings:
1. Plug in the On/Off Plug-In Switch.
2. Hold the Connect Button for 10 seconds until the LED Indicator blinks once, then release the button.
Only do this if the controller is disconnected or otherwise unreachable! |
|
|---|
| Supported / Controlled Meter Types | | Meter Type | Rate Type | Description |
|---|
| Electric meter | Import | Electric Meter Consumption |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
