Product Recognition
Certification Number	ZC10-17015372

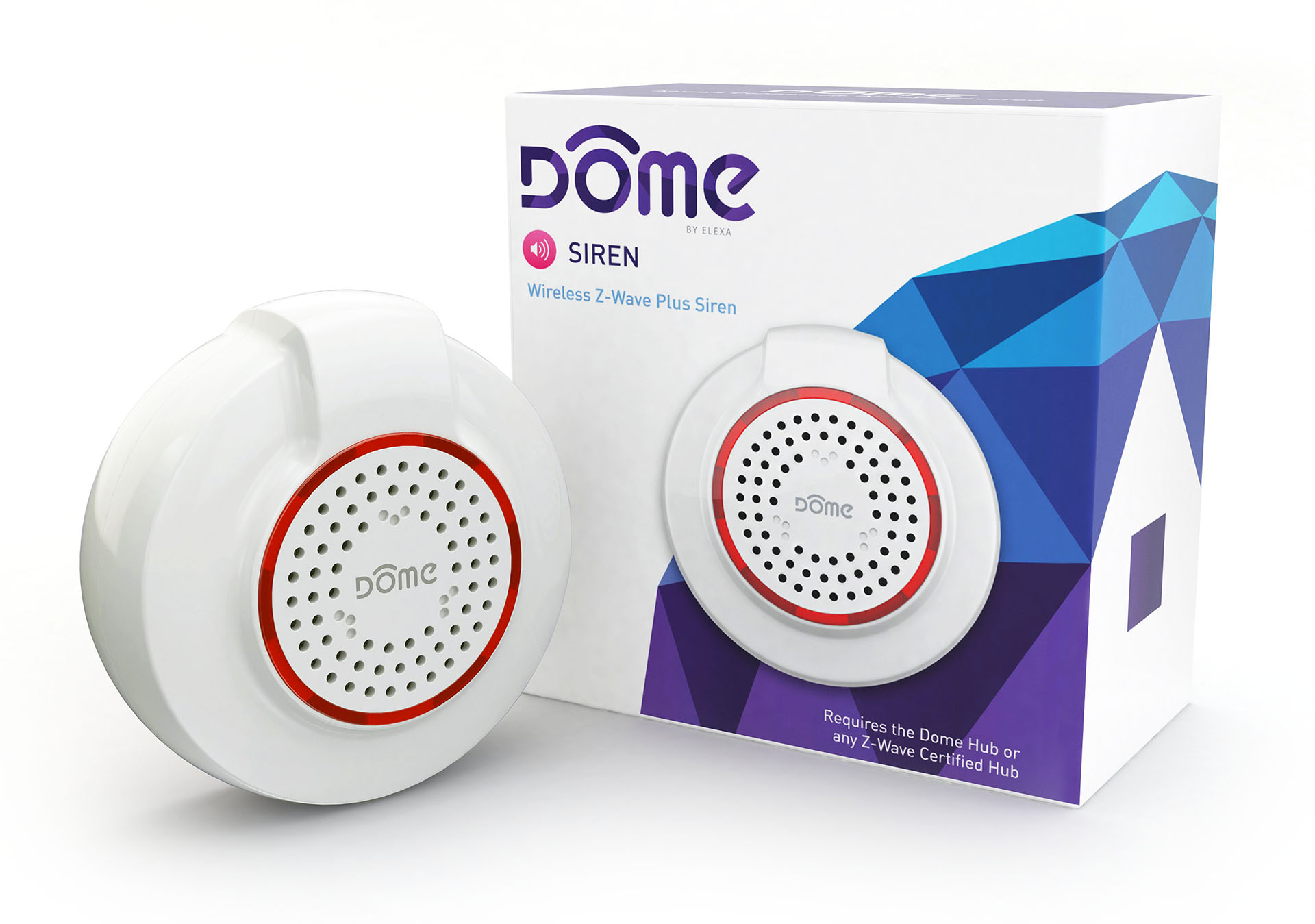

Name	Dome Z-Wave Plus Siren
Short Description	Dome™ Wireless Z-Wave Plus Siren, Battery Powered with Ten Selectable Tones and Volume Level • Loud alarm sound (up to 105dB) with flashing LED’s when triggered. • Additional audible chime notification (i.e. door opens, door bell, warnings). Choose from ten unique sounds and three volume levels (advanced settings subject to Z-Wave Hub compatibility). • Mounts anywhere- it’s wireless and 100% battery powered with 3-year battery life (2 CR123A Batteries Included). Up to 150-foot range • Z-Wave Plus Certified. Requires a Z-Wave Certified Hub to operate • Tested to work with SmartThings, Vera, Staples Connect, HomeSeer, Nexia, Piper, URC, Harmony. Not supported by Wink, DSC, ADT Pulse, 2Gig, Napco, Interlogix, Honeywell (Dome is not associated with listed brands)
Long Description	The Dome™ Home Automation DMS01 Siren offers ten user selectable sounds with three volume levels (at up to 105dB) and adjustable siren timeout (30/60/300 seconds or infinite). It includes a functionality of an alarm siren, doorbell and an audible chime notification when door/window opens (advanced settings subject to Z-Wave Hub compatibility). Additional visual notification is provided by built-in flashing LED’s when triggered. One of a kind device on the market with 100% battery operation allowing for easy installation anywhere in your home. There is a 3-year battery life, so you can always be confident that your siren has power. Extra-long Z-Wave wireless range (up to 150 ft) allows you to place it where it’s needed without worrying if the signal is reaching your Z-Wave Hub. Dome™ DMS01 Siren comes with a 1-year limited warranty. Measurements in inches: 2.625 x 2.625 x 1.125. Dome™ Home Automation Z-Wave devices give your family peace of mind and security you can count on. With Dome™, you’re always connected and always covered.
Brand	Dome
Product Identifier	DMS01
OEM Version	HW: 48 FW: 2.65
Hardware Platform	ZM5202
Z-Wave Version	6.51.08
Library Type	SLAVE_ROUTING
Device Type	Siren
Role Type	ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x021F
Product Type ID	0x0003
Product ID	0x0088
User Icon	0x0F00
Installer Icon	0x0F00
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Security Add-Ons
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_NOTIFICATION_V6 Notification V6 0x71 6 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Dome Siren Manual.pdf
Features	Feature Values Battery Quantity Value 2 Battery Type Value CR123A Color Value White
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 2 5 0 Group 2 can hold five members, and the Siren sends a single command to this Association Group, the Binary Switch Report, whenever the Siren is turned on or off. 3 5 0 Group 2 can hold five members, and the Siren sends a single command to this Association Group, a Notification Report, whenever the Siren is turned on or off. 1 5 0 Group 1 is the “Lifeline” group, which can hold five members, typically including the main Z-Wave controller. The Siren sends this group a Notification Report and a Binary Switch Report when the siren is turned on or off. It also sends this group a Battery Report in reponse to Battery Get commands and a Locally Reset Notification upon local reset.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 4 Secondary Notification Volume Level This parameter sets the volume of the Chime (secondary) sound. There are three possible volume levels available. 0 1 0 0 2 From To Description 3 3 High Volume 1 1 Low Volume 2 2 Medium Volume 5 Primary Notification Sound The Siren offers ten different sounds to use as the Siren (primary) notification. This parameter sets the Siren (primary) notification sound. 0 1 0 0 9 From To Description 1 10 Tone Index Number 7 Toggle Secondary Chime This Parameter toggles between the Primary and Secondary notification sound to be played when the Siren receives a BINARY_SWITCH_SET(FF) command. 0 1 0 0 1 From To Description 1 1 Primary Notification Will Play 2 2 Secondary Notification Will Play 2 Primary Notification Length This parameter defines the length of the Alarm/primary notification. 0 1 0 0 2 From To Description 1 1 30 Sec 2 2 1 Min 3 3 5 Min -1 -1 Plays until battery dies 3 Secondary Notification Length This parameter defines the length of the Chime/secondary notification. 0 1 0 0 1 From To Description -1 -1 Chime Will Not Play 0 0 Does Not Stop 1 127 Chime Duration (in Minutes) -128 -2 Chime Duration (in Minutes; -128=128 min, -2=254 min) 6 Secondary Notification Sound If Parameter 7 is set to 02, the Siren will play a secondary chime sound instead of the main alarm. The Siren offers ten different sounds to use as the Chime (secondary) notification. This parameter sets the Chime (secondary) notification sound. 0 1 0 0 10 From To Description 1 10 Tone Index Number 1 Primary Notification Volume Level This parameter sets the volume of the Siren (primary) sound. There are three possible volume levels available. 0 1 0 0 2 From To Description 1 1 Low Volume 2 2 Medium Volume 3 3 High Volume
Texts	ID Description Value 6 Additional Special Features Use the Binary Switch command class to trigger the main siren, or the Indicator. Set command to trigger one of ten different secondary chime notifications (indicator.set accepts values from 01~0A.) 5 Factory Reset To disconnect from the Z-Wave Network and restore factory default settings: 1. Open the Back Plate and make sure the Siren is powered. 1. Hold the Connect Button for 10 seconds until the LED Ring blinks once, then release the button. Only do this if the controller is missing or otherwise unreachable! 2 Exclusion Follow the instructions for your Z-Wave certified Controller to enter exclusion mode. When prompted by the Controller: 1. Remove the Back Plate of the Siren. 2. Press the Connect Button quickly 3 times in a row. The LED Ring will flash five times indicating exclusion/disconnection. 1 Inclusion Follow the instructions for your Z-Wave certified Controller to enter inclusion mode. When prompted by the Controller: 1. For proper inclusion, bring the Siren to the final location where it will be used. * 2. Remove the Back Plate of the Siren. 3. Remove the Battery Tabs. 4. Press the Connect Button quickly 3 times in a row. The LED Ring will flash five times indicating inclusion. *For non Z-Wave Plus networks, please consult the owner’s manual for your primary controller to determine the best method and location for adding the Siren to your Z-Wave network.
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
