Product Recognition
Certification Number	ZC10-14040002
Name	Door Contact
Short Description	Battery powered door and window sensor with magnetic reed switch and external switch contacts for adding additional sensor contacts.

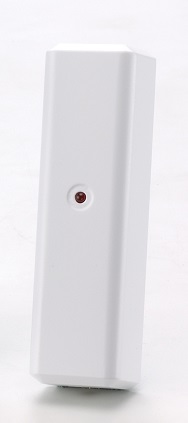

Long Description	The ZD2102-5 Door and Window sensor is used in any Z-Wave network to detect the opening or closing of a door or window. Special Design can fit most of door/window frame. The primary sensing element is a magnetic reed switch, the ZD2102-5 is supplied with the sensor, sensor mounting bracket and the trigger magnet. An additional set of sensor inputs are provided through a 2 position screw terminal and can be used to expand the sensor capability to multiple inputs. The ZD2102-5 is powered by a single CR123A Lithium Battery (supplied with unit, battery life is more than 5 years) and is intended for indoor use only. The ZD2102-5 features tamper proof switch, low battery warning and can be firmware updated over the air.
Brand	Vision
Product Identifier	ZD2102EU-5
OEM Version	02
Hardware Platform	ZM5202
Z-Wave Version	6.51.01
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0109
Product Type ID	0x2001
Product ID	0x0105
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ZD 2102_04162014 - 500系列.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 LifeLine association for central static controller COMMAND_CLASS_DEVICE_RESET_LOCALLY, DEVICE_RESET_LOCALLY_NOTIFICATION, COMMAND_CLASS_BATTERY, BATTERY_REPORT, COMMAND_CLASS_NOTIFICATION_V4, NOTIFICATION_REPORT_V4
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Enable/disable external switch. To enable or disable external switch function. 0 1 0 0 0 From To Description 0 255 0x00 is disable external switch , 0xFF is enable external switch. 0 0
Texts	ID Description Value 2 Exclusion For “Exclusion” (removing from) a network: Put the Z-Wave™ network controller into “exclusion” mode, following its instructions. To delete the ZD2102-5 from your controller press the program switch of ZD2102-5 for at least 1 second to be excluded. Note: All user and network settings will be cleared and the device reset to factory setting defaults when the device is excluded. 1 Inclusion For “Inclusion” (adding to) a network: Put the Z-Wave™ network controller into “inclusion” mode following its instructions. To add the ZD2102-5 to your controller press the program switch of ZD2102-5 to send the Node Information Frame (NIF). After sending NIF, the network controller will send the auto inclusion request; otherwise, ZD2102-5 will go to sleep after 15 seconds. 6 Additional Special Features PowerLevel Control, Battery Votlage Detection(Auto report low battery),OTA function 5 Factory Reset Factory Default Reset: Trigger the rear cover switch to send the Alarm Report and trigger the reed switch (close & open) 5 times in 10 seconds, ZD2102-5 will send the “Device Reset Locally Notification” command and reset to the factory default condition. 4 Device Wake-Up The ZD2102-5 is forced awake by opening the rear cover, the red LED will stay on and the 2102-5 will stay awake for 10 seconds. The ZD2102-5 will send “Wake Up Notification”. If ZD2102-5 receives a “Wake Up No More Information” command then the red LED will go off and it will go to sleep. Auto Wake Up: The wakeup interval is user settable from 10 minutes to 1 week using COMMAND_CLASS_WAKE_UP, Interval increment is 3 minutes.
Supports NWI	Yes
Supports Explorer Frames	Yes
