Product Recognition
Certification Number	ZC10-16065108

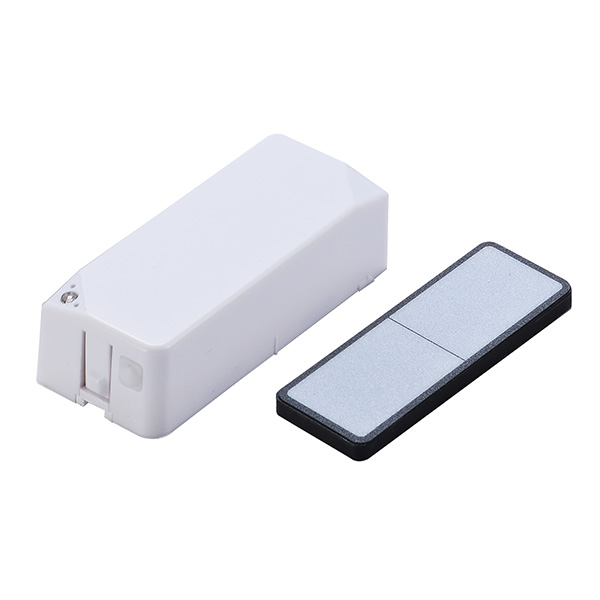

Name	Door Contact
Short Description	Battery powered door and window sensor with magnetic reed switch and external switch contacts for adding additional sensor contacts.
Long Description	The ZD2112-5 Door and Window sensor is used in any Z-Wave network to detect the opening or closing of a door or window. Special Design can fit most of door/window frame. The primary sensing element is a magnetic reed switch, the ZD2112-5 is supplied with the sensor, sensor mounting bracket and the trigger magnet. An additional set of sensor inputs are provided through a 2 position screw terminal and can be used to expand the sensor capability to multiple inputs. The ZD2112-5 is powered by 2 x AAA Battery (supplied with unit, battery life is more than 2 years) and is intended for indoor use only. The ZD2102-5 features tamper proof switch, low battery warning and can be firmware updated over the air.
Brand	Vision
Product Identifier	ZD2112JP-5
OEM Version	HW: 5.5.1.10.2
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0109
Product Type ID	0x2001
Product ID	0x01A1
User Icon	0x0C07
Installer Icon	0x0C07
Frequency Plans	JP: 922.50MHz, 923.90MHz, 926.30MHz
Categories	Sensors
Countries / Regions	Japan
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ZD 2112-5_12122014-Japan DW.pdf
Features	Feature Values Battery Quantity Value 2 Battery Type Value AAA Sensors Value Open/Closed (Binary) Outdoor Use
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 2 Exclusion For “Exclusion” from (removing from) a network: Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZD2112 from your controller. Press the program switch of ZD2112 for 1 second at least to be excluded. Note: All user and network settings will be cleared and the device reset to factory defaults when the device is excluded. 1 Inclusion For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZD2112 to your controller. To get in the “inclusion” mode, the distance between sensor and controller is suggested to be in one meter. Press the program switch of ZD2112 for sending the NIF. After sending NIF, Z-Wave will send the auto inclusion; otherwise, ZD2112 will go to sleep after 20 seconds. 6 Additional Special Features PowerLevel Control, Battery Votlage Detection(Auto report low battery),OTA function 4 Device Wake-Up Press program switch to send the NIF and after 3 seconds to send Wake Up Notification for receiving all the command class from controller. If ZD2112 received “Wake Up No More Information” command then the ZD2112 will go to sleep mode or it will wait 10 seconds then go sleep mode. It will proceed all the commands after sending the “Wake Up Notification” 5 Factory Reset Factory Default Reset: Trigger the rear cover switch to send the Alarm Report and trigger the reed switch (close & open) 5 times in 10 seconds, ZD2112 will send the “Device Reset Locally Notification” command and reset to the factory default. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.)
Supported Multilevel Sensors	Multilevel Sensor Type 0x02
Supports NWI	Yes
Supports Explorer Frames	Yes
