Product Recognition | |
|---|
Certification Number | ZC10-18015915 |
|---|
Name | Door sensor |
|---|

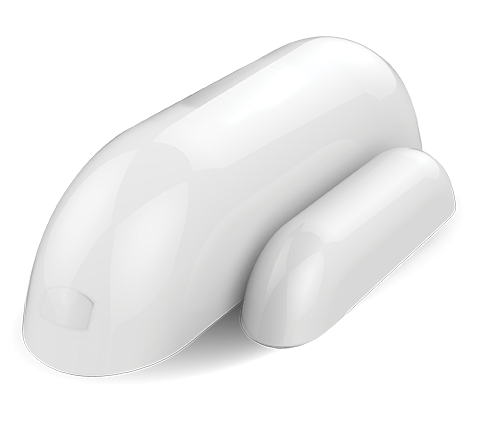

Short Description | Door/Window sensor that can be mounted to any door window or other opening object. |
|---|
Long Description | Door/Window sensor that can be mounted to any door window or other opening object. |
|---|
Brand | Zipato |
|---|
Product Identifier | ne-nas-ds01z.us |
|---|
OEM Version | HW: 65 FW: 3.61 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0131 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0082 |
|---|
User Icon | 0x0C06 |
|---|
Installer Icon | 0x0C06 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SENSOR_BINARY_V2 | Sensor Binary V2 | 0x30 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Color | | Supported Notification Types | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | GROUP 1 is lifeline service that assigned to Sensor (Door/Window detector) status – Open/Close. It enables the sensor to send reports and readings to Z-Wave Controller or Z-Wave Gateway whenever the sensor is triggered. This Group Support: NOTIFICATION_REPORT BATTERY_REPORT SENSOR_BINARY_REPORT DEVICE_RESET_LOCALLY_NOTIFICATION | 2 | 5 | 0 | GROUP 2 allows for sending control commands to associated devices such as relay module, lighting, etc. This association group is configured through the advanced parameters no. 1 and 2. This Group Support: BASIC_SET. | 3 | 5 | 0 | GROUP 3 allows for Send Notification to associated devices in this group. This Group Support: NOTIFICATION_REPORT | 4 | 5 | 0 | GROUP 4 allows for Send Notification to associated devices in this group. This Group Support: SENSOR_BINARY_REPORT |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | OFF Delay | This configuration parameter can be used to adjust the amount of delay before the OFF com mand is transmitted. This parameter can be configured with the value of 0 through 65535, where 0 means send OFF command immediately and 65535 means 65535 seconds of delay. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | | 0 | 65535 | Delay in seconds |
| 2 | BASIC_SET level | Basic Set Command will be sent where contains a value when the door/window is opened or closed, Z-Wave controller or Z-Wave gateway will take it for consideration; for instance, if a lamp module receives the Basic Set Command of which value is decisive asto howbright of dim levelof lamp moduleshall be. | 0 | 1 | 0 | 0 | 255 | From | To | Description |
|---|
0 | 0 | OFF | 1 | 99 | Set absolute value | 255 | 255 | Return to previous non-zero value |
|
|
|---|
Texts | ID | Description | Value |
|---|
4 | Device Wake-Up | You can press the button once to wake up the device and send wakeup notification to controller. If press successfully, the LED will blink one time. | 1 | Inclusion | Add the Sensor (Door/Window detector) to Z-Wave Network
1.Remove the sensor cover.
2.Make sure the sensor is powered.
3.Set Z-Wave controller or Z-Wave gateway into inclusion mode (Refer to the controller or gateway operating manual)
4.Press the button three times within 1.5 second, the device will enter inclusion mode. And the LED will flash on and off alternately five times. | 2 | Exclusion | Delete the Sensor (Door/Window detector) from Z-Wave Network
1.Remove the device cover.
2.Make sure the sensor is powered.
3.Set Z-Wave controller or Z-Wave gateway into exclusion mode (Refer to the controller or gateway operating manual)
4.Press the button three times within 1.5 second, the device will enter exclusion mode. | 5 | Factory Reset | Note: to use the reset procedure only when the primary controller is missing or inoperable.
Restore the Sensor (Door/Window detector) to Factory Default Settings
Reset procedure will delete all information on the Z-Wave network and Z-Wave controller or Z-Wave Gateway, and restore the sensor to factory default settings.
1.Remove the device cover.
2.Make sure the sensor is powered.
3.Press and hold the button for 10 seconds,
4.Release the button. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
