Product Recognition | |
|---|
Certification Number | ZC10-19056494 |
|---|

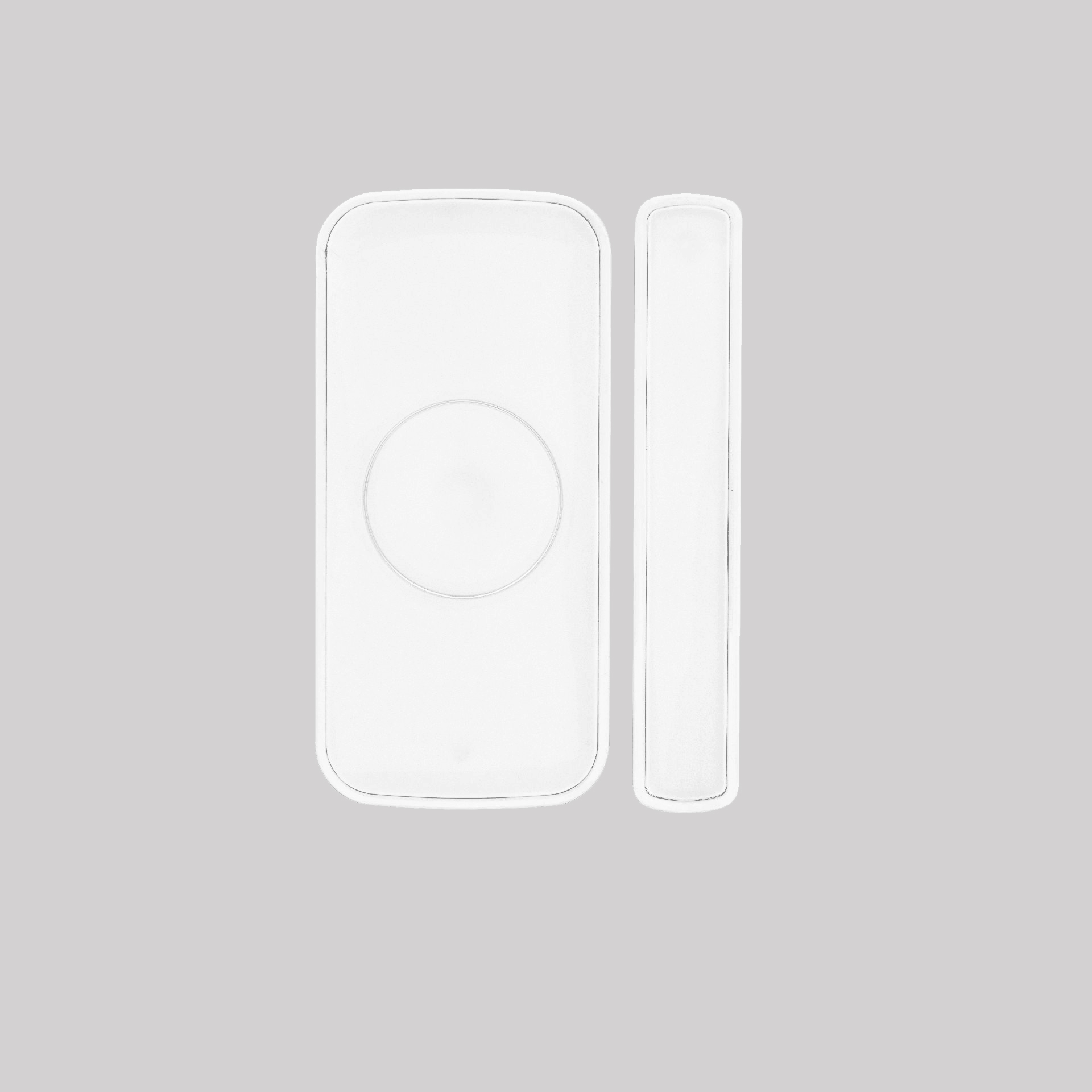

Name | Door Sensor |
|---|
Short Description | This smart door sensor is consists of sensor part and magnet part. It can sense the open and close state of the door and windows, once there is unexpected intruder, it will send alarm information to the user APP. |
|---|
Long Description | This smart door sensor is consists of sensor part and magnet part. It can sense the open and close state of the door and windows, once there is unexpected intruder, it will send alarm information to the user APP.It has mini stylish design,easy installation and long lifespan. |
|---|
Brand | CLEVERIO |
|---|
Product Identifier | 51113 |
|---|
OEM Version | HW: 255 FW: 1.37 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x041C |
|---|
Product Type ID | 0x0168 |
|---|
Product ID | 0x0168 |
|---|
User Icon | 0x0C06 |
|---|
Installer Icon | 0x0C06 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SENSOR_BINARY_V2 | Sensor Binary V2 | 0x30 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Color | | Supported Notification Types | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 5 | 0 | Association group 2: Root Device group(Binary Sensor)
Binary Sensor Command Class:Compatible with 300 series
1- Binary Sensor reports status of open or close door via Lifeline.
2- When the sensor detects status change between close door and open door, the device will be triggered.
| 1 | 5 | 0 | Association group 1: Lifeline association group
Include command classe: Battery report, Notification report, and Device Reset Locally notification, Binary report.
| 3 | 5 | 0 | Association group 3: Root Device group(Binary Sensor)
Binary Sensor Command Class:Compatible with 300 series
1- Binary Sensor reports the removed status of door sensor.
2- When the sensor detects status change of tamper, the device will be triggered.
| 4 | 5 | 0 | Association group 4: Root Device group(Notification)
1-Notification report open door or close status via Lifeline.
2- When the sensor detects status change between close door and open door, the device will be triggered.
| 5 | 5 | 0 | Association group 5: Root Device group(Notification)
1-Binary Sensor reports the removed status of door sensor.
2- When the sensor detects status change of tamper, the device will be triggered.
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | - Long press Func_Button while installing batteries in HS1DS-Z
- Device Reset Locally notification is Transmitted
- Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 2 | Exclusion | - Press a Func_Button 3 times quickly.
- If Exclusion Process is successful, Green led is Blinking 6 times, then turn off. | 1 | Inclusion | - Press a Func_Button 3 time in the Door Sensor, Green LED is Blinking 3 times within 1 second.
- If Inclusion Process is successful, Green led will turn off. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Smoke Alarm | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
