Product Recognition
Certification Number	ZC10-16055076

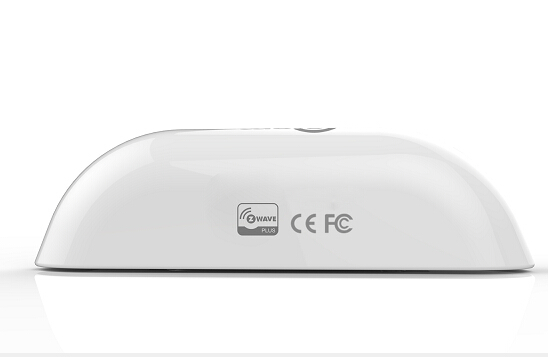

Name	Door Sensor
Short Description	Door sensor with the function to detect the close and open status of door or window, send push notification to mobile phone when door or windows opened illegally
Long Description	This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. In the front casing, there is button that is used to carry out include, exclude or reset factory default settings on PCB Board. When power is first supplied, the LED will flash on and off alternately at one second intervals within 5 seconds if the detector has not been added a Z-Wave network. Please get familiar with the terms below before starting the operations.
Brand	Coolcam
Product Identifier	NAS-DS01Z
OEM Version	HW: 65 FW: 3.61
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ROUTING
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0258
Product Type ID	0x0003
Product ID	0x1082
User Icon	0x0C06
Installer Icon	0x0C06
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Door-Window User Guide.doc
Features	Feature Values Firmware Updatable Value Updatable by Manufacturer Battery Type Value CR2 Color Value White Sensors Value Open/Closed (Binary)
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 3 5 0 GROUP 3 allows for Send Notification to associated devices in this group. This Group Support: NOTIFICATION_REPORT 4 5 0 GROUP 4 allows for Send Notification to associated devices in this group. This Group Support: SENSOR_BINARY_REPORT 2 5 0 GROUP 2 allows for sending control commands to associated devices such as relay module, lighting, etc. This association group is configured through the advanced parameters no. 1 and 2. This Group Support: BASIC_SET. 1 5 0 GROUP 1 is lifeline service that assigned to Sensor (Door/Window detector) status – Open/Close. It enables the sensor to send reports and readings to Z-Wave Controller or Z-Wave Gateway whenever the sensor is triggered. This Group Support: NOTIFICATION_REPORT BATTERY_REPORT SENSOR_BINARY_REPORT DEVICE_RESET_LOCALLY_NOTIFICATION
Texts	ID Description Value 2 Exclusion Delete the Sensor (Door/Window detector) from Z-Wave Network 1.Remove the device cover. 2.Make sure the sensor is powered. 3.Set Z-Wave controller or Z-Wave gateway into exclusion mode (Refer to the controller or gateway operating manual) 4.Press the button three times within 1.5 second, the device will enter exclusion mode. 1 Inclusion Add the Sensor (Door/Window detector) to Z-Wave Network 1.Remove the sensor cover. 2.Make sure the sensor is powered. 3.Set Z-Wave controller or Z-Wave gateway into inclusion mode (Refer to the controller or gateway operating manual) 4.Press the button three times within 1.5 second, the device will enter inclusion mode. And the LED will flash on and off alternately five times. 4 Device Wake-Up Manual Wakeup the Sensor You can press the button once to wake up the device and send wakeup notification to controller. If press successfully, the LED will blink one time. 5 Factory Reset Note: to use the reset procedure only when the primary controller is missing or inoperable. Restore the Sensor (Door/Window detector) to Factory Default Settings Reset procedure will delete all information on the Z-Wave network and Z-Wave controller or Z-Wave Gateway, and restore the sensor to factory default settings. 1.Remove the device cover. 2.Make sure the sensor is powered. 3.Press and hold the button for 10 seconds, 4.Release the button.
Supported Multilevel Sensors	Multilevel Sensor Type 0x02
Supports NWI	Yes
Supports Explorer Frames	Yes
