Product Recognition | |
|---|
Certification Number | ZC10-17035515 |
|---|

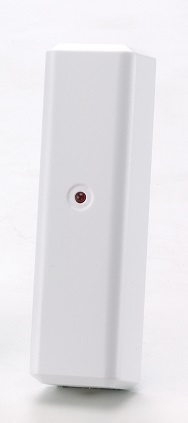

Name | Door Sensor |
|---|
Short Description | Battery powered door and window sensor with magnetic reed switch and external switch contacts for adding additional sensor contacts. |
|---|
Long Description | The ZD2102-5 Door and Window sensor is used in any Z-Wave network to detect the opening or closing of a door or window. Special Design can fit most of door/window frame. The primary sensing element is a magnetic reed switch, the ZD2102-5 is supplied with the sensor, sensor mounting bracket and the trigger magnet. An additional set of sensor inputs are provided through a 2 position screw terminal and can be used to expand the sensor capability to multiple inputs. The ZD2102-5 is powered by a single CR123A Lithium Battery (supplied with unit, battery life is more than 5 years) and is intended for indoor use only. The ZD2102-5 features tamper proof switch, low battery warning and can be firmware updated over the air. |
|---|
Brand | Anchor |
|---|
Product Identifier | ZD2102US-5 |
|---|
OEM Version | HW: 1 FW: 5.01:10.02 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x032B |
|---|
Product Type ID | 0x2001 |
|---|
Product ID | 0x0106 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Type | | Color | | Communications Protocol | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Supported Notification Types | | Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Configuration - Switch External | Enable - 0xFF Disable - 0x00 | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 255 | 0xFF |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | For “Inclusion” (adding to) a network: Put the Z-Wave™ network controller into “inclusion” mode following its instructions. To add the ZD2102-5 to your controller press the program switch of ZD2102-5 to send the Node Information Frame (NIF). After sending NIF, the network controller will send the auto inclusion request; otherwise, ZD2102-5 will go to sleep after 15 seconds. | 2 | Exclusion | For “Exclusion” (removing from) a network: Put the Z-Wave™ network controller into “exclusion” mode, following its instructions. To delete the ZD2102-5 from your controller press the program switch of ZD2102-5 for at least 1 second to be excluded. Note: All user and network settings will be cleared and the device reset to factory setting defaults when the device is excluded. | 5 | Factory Reset | Factory Default Reset: Trigger the rear cover switch to send the Alarm Report and trigger the reed switch (close & open) 5 times in 10 seconds, ZD2102-5 will send the “Device Reset Locally Notification” command and reset to the factory default condition. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.) | 4 | Device Wake-Up | The ZD2102-5 is forced awake by opening the rear cover, the red LED will stay on and the 2102-5 will stay awake for 10 seconds. The ZD2102-5 will send “Wake Up Notification”. If ZD2102-5 receives a “Wake Up No More Information” command then the red LED will go off and it will go to sleep.
Auto Wake Up: The wakeup interval is user settable from 10 minutes to 1 week using COMMAND_CLASS_WAKE_UP, Interval increment is 3 minutes. | 6 | Additional Special Features | PowerLevel Control, Battery Votlage Detection(Auto report low battery),OTA function |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Appliance | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
