Product Recognition | |
|---|
Certification Number | ZC10-17125911 |
|---|
Name | Door Sensor |
|---|

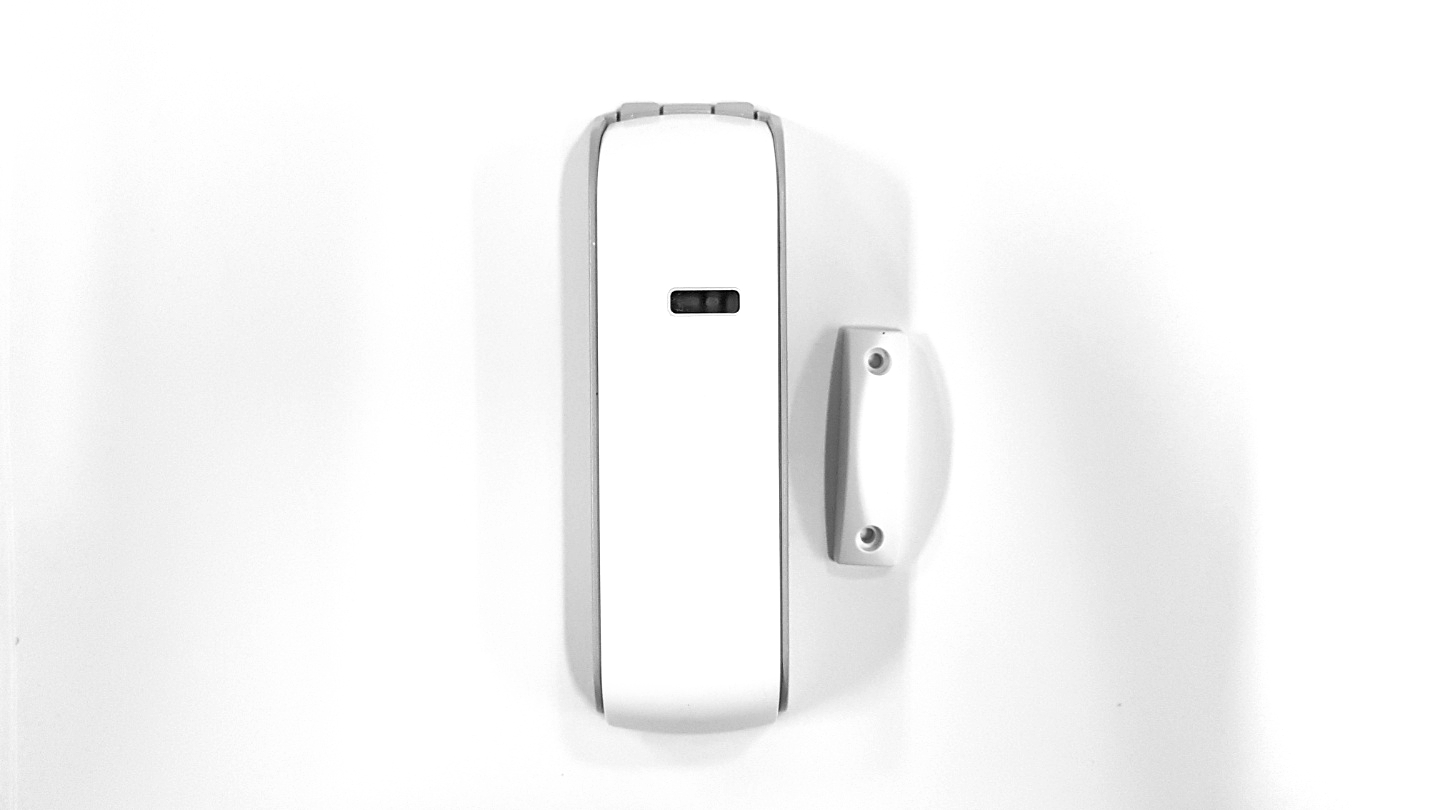

Short Description | MC01-1702OPS offers information whether a door is open or closed. |
|---|
Long Description | MC01-1702OPS offers information whether a door is open or closed.
This is a battery-powered device, which is in sleeping mode unless an action is detected.
After a programmable sleeping time the device wakes up and sends a status information. After this the unit goes back to sleeping mode.
Batteries can be changed with screwing the device from the frame.
The device needs to be included into a Z-Wave network by the Z-Wave controller. |
|---|
Brand | Mercury |
|---|
Product Identifier | MC01-1702OPS |
|---|
OEM Version | HW: 1 FW: 1.01 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.61.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x022D |
|---|
Product Type ID | 0x0401 |
|---|
Product ID | 0x0101 |
|---|
User Icon | 0x0C06 |
|---|
Installer Icon | 0x0C06 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | Republic of Korea |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_NOTIFICATION_V3 | Notification V3 | 0x71 | 3 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer via Internet |
| Sensors | Value |
|---|
Open/Closed (Binary) |
| Supported Notification Types | | Battery Type | | Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1) Put the Z-Wave Controller into inclusion mode
2) Press the Push button one time in door sensor | 2 | Exclusion | 1) Put the Z-Wave Controller into exclusion mode
2) Press the Push button three times in door sensor | 5 | Factory Reset | 1) Press the Push button for more than 10 seconds
2) Verify that LED is blinking one time
※ Please use this procedure only when the network primary controller is missing or otherwise inoperable | 4 | Device Wake-Up | There are 2 ways;
When press the Push button two times
when the door state changes, e.g,. Open or Close
-Minimum Wake Up Interval : 0 seconds
-Maximum Wake Up Interval : 4200 seconds(70 minutes)
-Default Wake Up Interval : 4200 seconds(70 minutes)
-Wake Up Interval Step Seconds : 10 seconds |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
