Product Recognition | |
|---|---|
Certification Number | ZC10-22037075 |

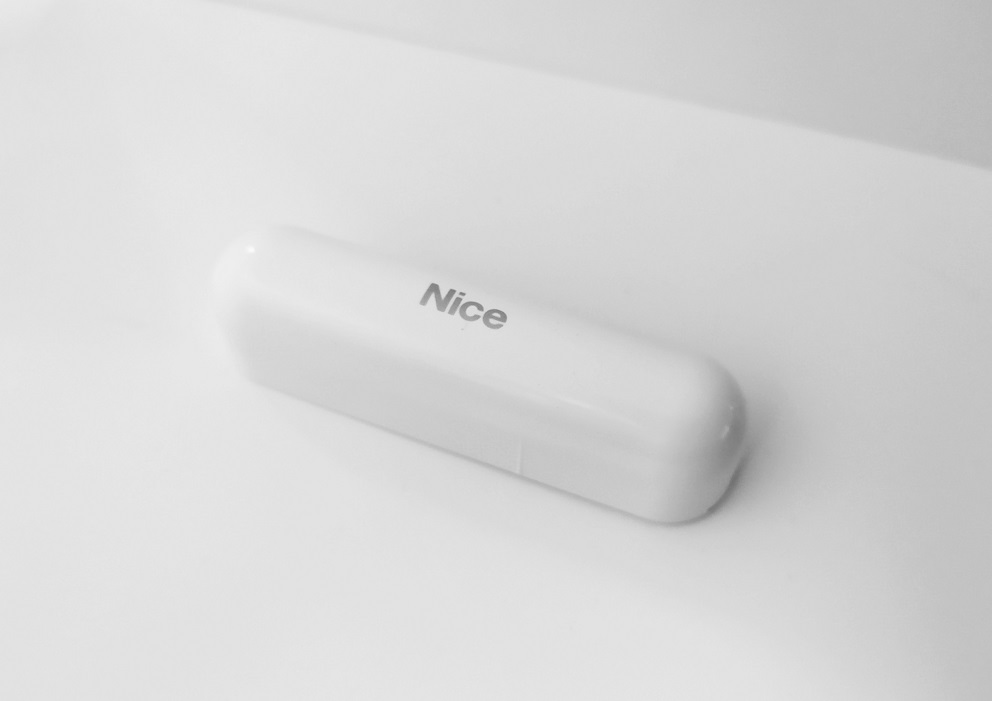

Name | Door/Window-Control |
Short Description | Door/Window-Control is a wireless, battery powered Hall effect contact sensor, compatible with the Z-Wave Plus™ standard. Changing the
device’s status will automatically send signal to the Z-Wave™ controller and associated devices. |
Long Description | Door/Window-Control is a wireless, battery powered Hall effect contact sensor, compatible with the Z-Wave Plus™ standard. Changing the device’s status will automatically send signal to the Z-Wave™ controller and associated devices.
Sensor can be used to trigger scenes and wherever there is a need for information about opening or closing of doors, windows, garage doors, etc. Opening is detected by separating the sensor’s body and the magnet.In addition, Door/Window-Control is equipped with a built-in temperature sensor. |
Brand | Nice |
Product Identifier | FGDW-002 |
Product Line | Nice Door/Window-Control |
OEM Version | HW: 2 FW: 3.02 |
Hardware Platform | ZM5101 |
Z-Wave Version | 6.51.09 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | Notification Sensor |
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
Manufacturer ID | 0x010F |
Product Type ID | 0x0702 |
Product ID | 0x1000 |
User Icon | 0x0C06 |
Installer Icon | 0x0C06 |
Frequency Plans | EU: 869.85MHz, 868.40MHz |
Categories | Sensors, Window Covering, Security Systems |
Countries / Regions | European Union |
Supported Command Classes | |
Controlled Command Classes | |
Documents | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported Notification Types | |
Supported Multilevel Sensors | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
