| Certification Number | ZC10-16095235 |
|---|

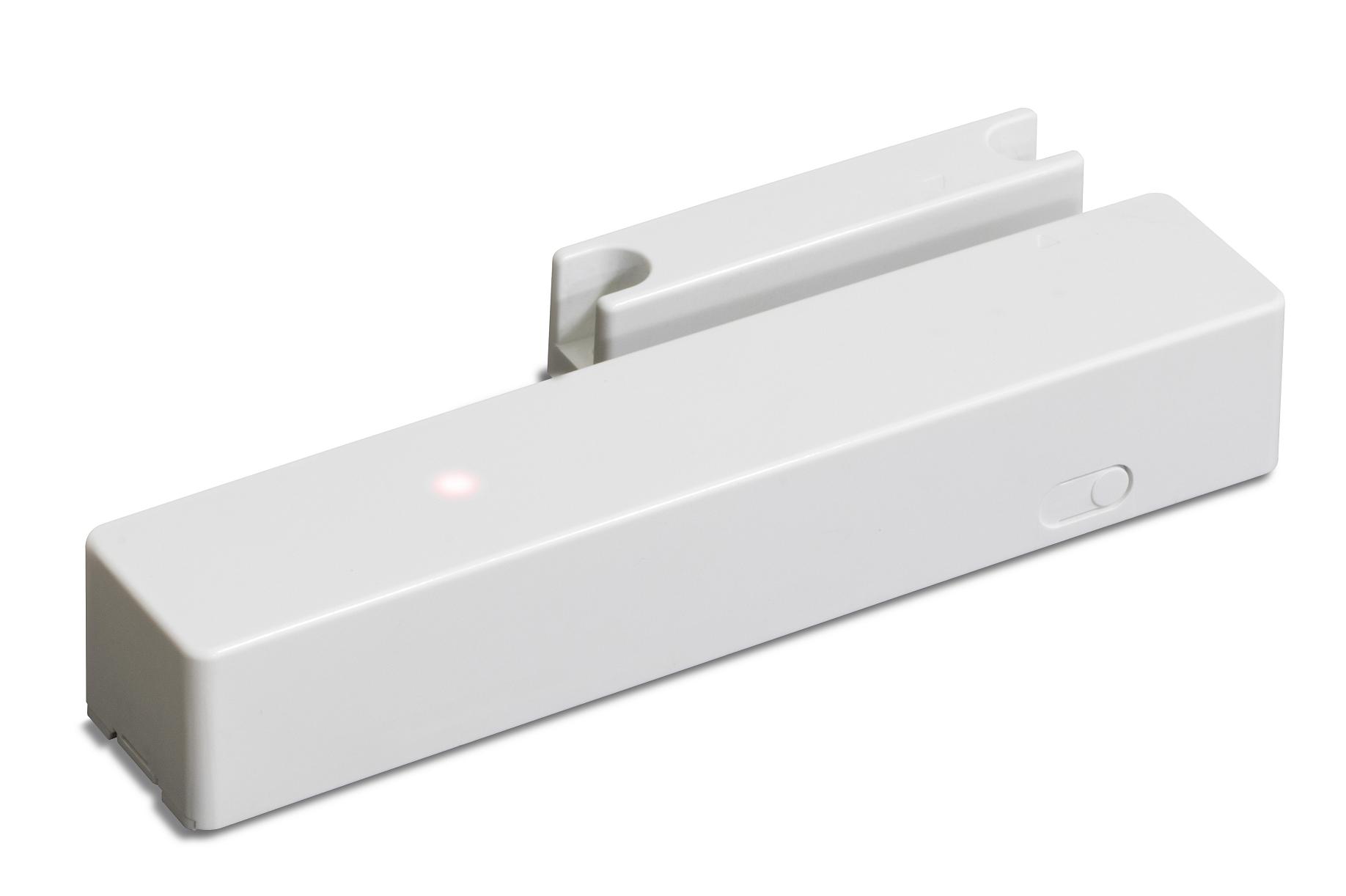

| Name | DOOR/WINDOW SENSOR |
|---|
| Short Description | DOOR/WINDOW SENSOR |
|---|
| Long Description | Door / Window Open. Close monitoring function
Case open , Battery level monitoring function
LED function
OTA |
|---|
| Brand | RayHome |
|---|
| Product Identifier | HT01-609I |
|---|
| OEM Version | HW: 1 FW: 1.00 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.61.00 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | Notification Sensor |
|---|
| Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
| Manufacturer ID | 0x0221 |
|---|
| Product Type ID | 0x0003 |
|---|
| Product ID | 0x0003 |
|---|
| User Icon | 0x0C07 |
|---|
| Installer Icon | 0x0C07 |
|---|
| Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
| Categories | Sensors |
|---|
| Countries / Regions | Republic of Korea |
|---|
| Supported Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
| Documents | | Category | Description | File |
|---|
| Manual_Primary_Lang | Product or Owner's Manual | UserManual.pdf |
|
|---|
| Features | | Feature | Values |
|---|
| Battery Quantity | | | Battery Type | | | Color | | | Firmware Updatable | | Value |
|---|
| Updatable by Consumer by RF |
|
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 1 | 0 | Z-Wave Plus Lifeline;
COMMAND_CLASS_BATTERY - REPORT command
COMMAND_CLASS_NOTIFICATION - REPORT command
COMMAND_CLASS_DEVICE_RESET_LOCALLY - NOTIFICATION command | | 2 | 5 | 0 | Notify a Z-Wave node that the door/window open or close, and the product case open/close has been detected.
Nodes in this association group will receive;
COMMAND_CLASS_NOTIFICATION - REPORT command | | 3 | 5 | 0 | Notify a Z-Wave node that the door/window open or close, and the product case open/close has been detected.
Nodes in this association group will receive;
COMMAND_CLASS_NOTIFICATION - REPORT command |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | Z-Wave primary controller into inclusion mode. And press the inclusion/exclusion switch for sending NIF. | | 2 | Exclusion | Z-Wave primary controller into exclusion mode. And press 3 times the inclusion/exclusion switch for sending NIF. | | 5 | Factory Reset | Held 10 seconds the inclusion/exclusion switch for sending Device Reset Locally Notification.
And reset to the Factory default. | | 6 | Additional Special Features | Support OTA Firmware update from controller. Use FIRMWARE_UPDATE_MD_V2_COMMAND_CLASS. To proceed the OTA process | | 4 | Device Wake-Up | Case1. In the timeout-based scheme, the product is wakeup. Use 'wake up interval'.
Case2. Physically scheme, include the product in a Z-Wave network, press the inclusion/exclusion switch for Wake Up Notification. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
