| Product Recognition | |
|---|
| Certification Number | ZC10-17035469 |
|---|

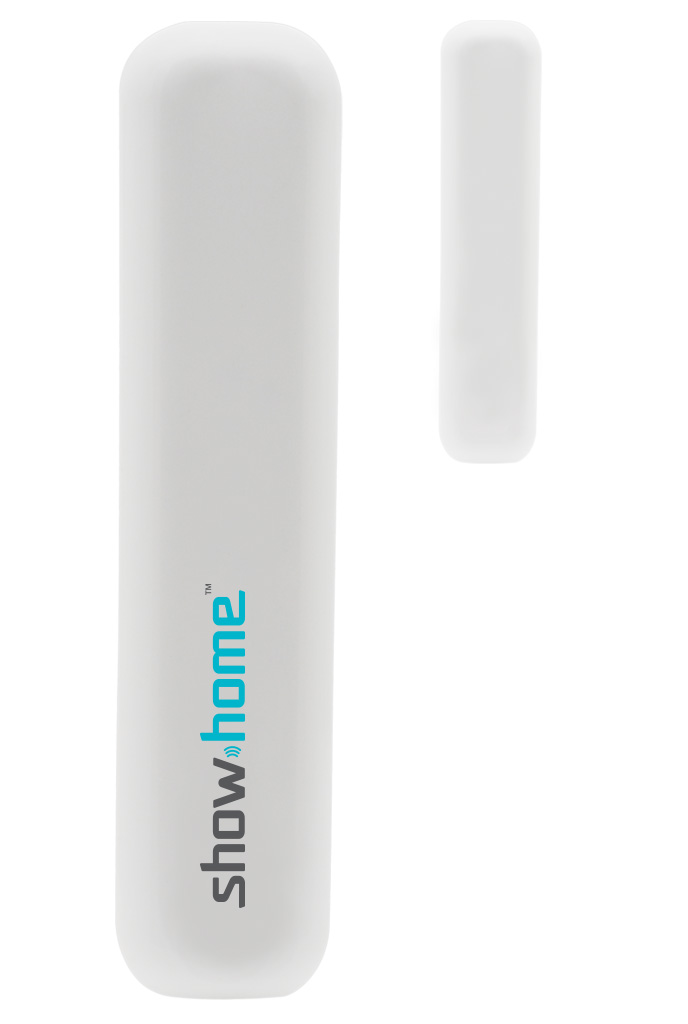

| Name | Door Window Sensor |
|---|
| Short Description | Door and Window sensor to monitoring On/Off the Door/window |
|---|
| Long Description | This sensor monitors door/window and send Z-Wave™ signal when door or window is opened and closed. |
|---|
| Brand | show home |
|---|
| Product Identifier | ZW1101 |
|---|
| OEM Version | 1.20.15 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Notification Sensor |
|---|
| Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
| Manufacturer ID | 0x015D |
|---|
| Product Type ID | 0x2003 |
|---|
| Product ID | 0xB11C |
|---|
| User Icon | 0x0C00 |
|---|
| Installer Icon | 0x0C07 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | Sensors |
|---|
| Countries / Regions | United States of America |
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Battery Quantity | | | Battery Type | | | Color | | | Sensors | | Value |
|---|
| Open/Closed (Binary) |
|
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 5 | Factory Reset | Press and hold the micro switch for at least 3 seconds while you insert the battery to reset the device.
*Use this procedure only in the event that the network primary controller is missing or otherwise inoperable | | 1 | Inclusion | 1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network.
2. Once the controller is ready to include your device, triple click the micro switch to include it in the network. | | 2 | Exclusion | 1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network.
2. Once the controller is ready to Exclude your device, triple click the micro switch to exclude it from the network. | | 4 | Device Wake-Up | The sensor was wake up when micro switch or magnetic sensor detect position changed after mounted on site. |
|
|---|
| Supported Multilevel Sensors | | Multilevel Sensor Type |
|---|
| 0x02 |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
