Product Recognition | |
|---|
Certification Number | ZC10-18015980 |
|---|

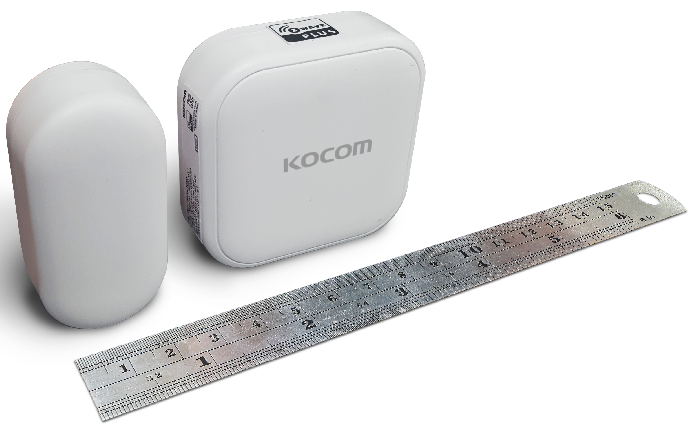

Name | Door / Window Sensor |
|---|
Short Description | KMS-Z10 is Z-Wave PLUS door or window sensor. |
|---|
Long Description | This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. |
|---|
Brand | KOCOM |
|---|
Product Identifier | KMS-Z10 |
|---|
OEM Version | HW: 3 FW: 1.01 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x034C |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0002 |
|---|
User Icon | 0x0C06 |
|---|
Installer Icon | 0x0C06 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | Sensors, Security Add-Ons |
|---|
Countries / Regions | Republic of Korea |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Communications Connections | | Sensors | Value |
|---|
Open/Closed (Binary) |
| Supported Notification Types | | Battery Quantity | | Color | | Battery Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Lifeline between controller and KMS-Z10
Supported command classes Battery report, Notification report, and Device Reset Locally notification
Sensor can max associate 1 nodes in each group
Sensor supports one association groupings. |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Press & hold inclusion/Exclusion button during 1 seconds when Open Sensor is exclusion status
Press for 1seconds, LED is turn on
Open sensor will try inclusion for 15 seconds when button is released.
If inclusion is successful, LED will blink 3 times with 100ms interval | 2 | Exclusion | Press & hold inclusion/Exclusion button during 1 seconds when Open Sensor is exclusion status
Press for 1seconds, LED is turn on
Open sensor will try exclusion when button is released.
If exclusion is successful, LED will blink 3 times with 100ms interval | 5 | Factory Reset | Press & hold inclusion/Exclusion button during 5 seconds.
LED turn on and LED turn off after 5sec
Release Inclusion/Exclusion
Factory reset will be done in 5 seconds and blink 5 times with 100ms interval
※ Please use factory reset only when the network primary controller is missing or otherwise inoperable | 4 | Device Wake-Up | Wake up Notification is transmitted every 30 minutes by default
Wake up Notification can be changed in controller |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
