Product Recognition | |
|---|
Certification Number | ZC10-19026370 |
|---|

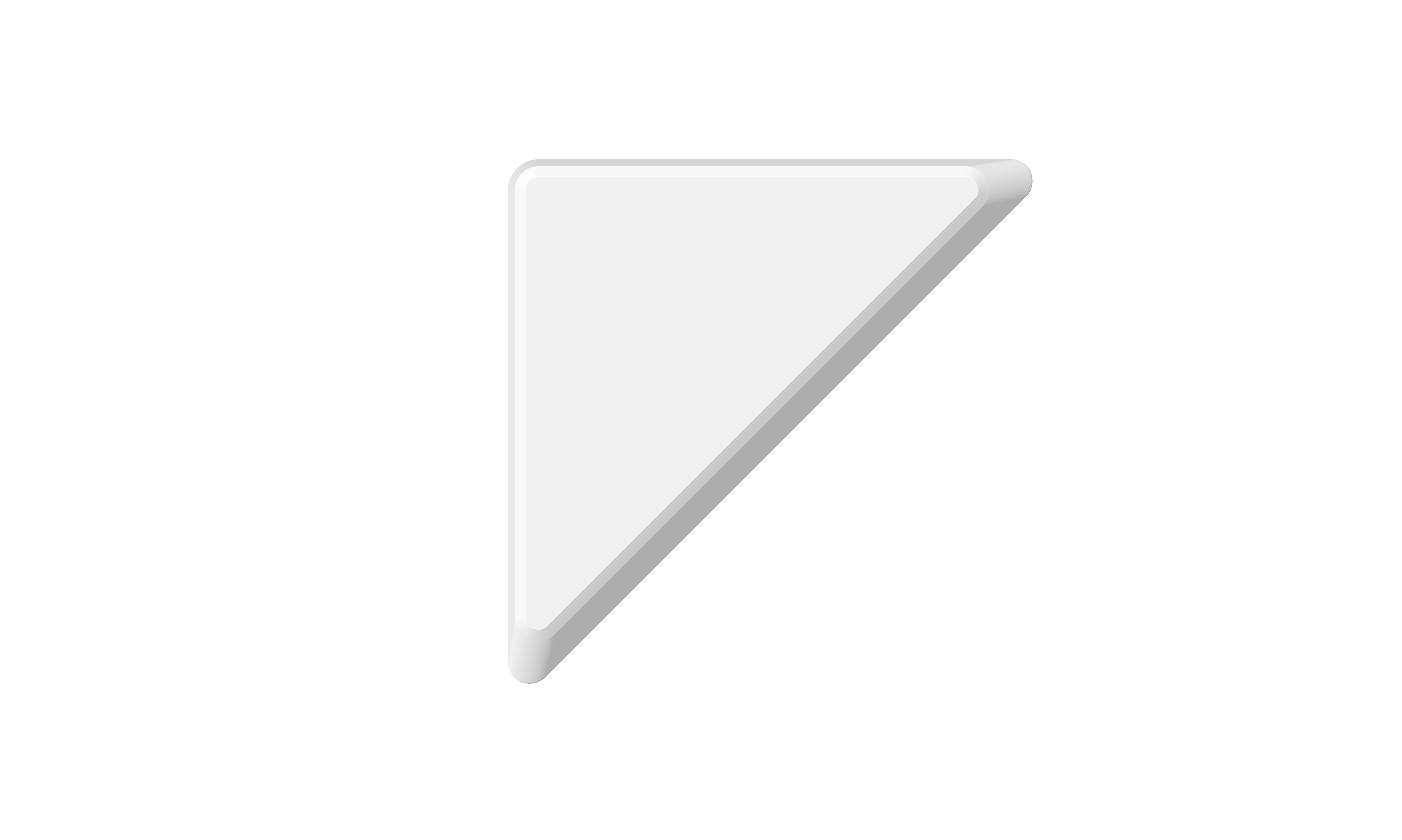

Name | Door/ Window Sensor 6 |
|---|
Short Description | Door/ Window Sensor 6 is a smart Z-Wave sensor that can detect the status of door/window's open/close in real time. |
|---|
Long Description | Door Window Sensor 6 is a sensor binary device based on Z-wave enhanced 232 slave library of V6.51.10.
It provides your Z-Wave network with the intelligence required for a modern home automation and security system. And it does it all in a smaller, more elegant design crafted to suit any home's decor.
It is also a security Z-Wave device and supports the Over The Air (OTA) feature for the product’s firmware upgrade.
It can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
It also supports Security Command Class and has the AES 128 bit security encryption built right in, so a security enabled controller is needed for fully to utilize its function. |
|---|
Brand | Aeotec |
|---|
Product Identifier | ZW112-H |
|---|
OEM Version | HW: 112 FW: 1.03 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.10 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0086 |
|---|
Product Type ID | 0x1C02 |
|---|
Product ID | 0x0070 |
|---|
User Icon | 0x0C06 |
|---|
Installer Icon | 0x0C06 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | Singapore |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_BINARY | Sensor Binary | 0x30 | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Sensors | Value |
|---|
Open/Closed (Binary) |
| Color | | Supported Notification Types | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Group 1 is assigned to the Lifeline association group and every device has 5 nodes to associate. The sensor binary report, basic set or notification report command can be sent in this group when the Sensor is triggered. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
252 | Lock/unlock all configuration parameters. | Lock/unlock all configuration parameters. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Unlock. | 1 | 1 | Lock. |
| 255 | Reset the Sensor. | Reset the Sensor. | 0 | 4 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Reset to default settings. | 1431655765 | 1431655765 | Reset to default settings and excluded from the network. |
| 1 | Which value of the Sensor Binary Report or Basic Set will be sent when the door is Opened/Closed. | To set which value of the Sensor Binary Report or Basic Set will be sent when the door is Opened/Closed. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Sensor Binary Report/Basic Set =0xFF when the door is opened, Sensor Binary Report/Basic Set= 0x00 when the door is closed. | 1 | 1 | Sensor Binary Report/Basic Set= 0x00 when the door is opened, Sensor Binary Report/Basic Set=0xFF when the door is closed. |
| 101 | Enable/disable the function of parameter 111 | Enable/disable the function of parameter 111. Note: this parameter cannot disable the low battery checking of the Sensor itself. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Disable. | 1 | 1 | Enable. |
| 111 | Set the interval time of low battery checking. | Set the interval time of low battery checking. Note: 1, if the value is less than 10, the time unit is second. If the value is more than 10, the time unit is 4 minutes, which means if the value is more than 10 and less than 240, the interval time is 4 minutes. If the value is more than 240 and less than 480, the interval is 8 minutes. 2, if the current battery report falls below the low battery value (configurable parameter 39), it will send battery report=0xFF. | 0 | 4 | 0 | 0 | 86640 | From | To | Description |
|---|
0 | 2147483647 | The range of interval can be set to 0 to 2147483647. |
| 121 | To configure which sensor report will be sent when the door is opened/closed. | To configure which sensor report will be sent when the door is opened/closed. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | Basic Set CC is selected. | 2 | 2 | Sensor Binary Report CC is selected. | 3 | 3 | Basic Set CC and Sensor Binary Report CC are selected. |
|
|
|---|
Texts | ID | Description | Value |
|---|
4 | Device Wake-Up | Press the Action Button once, which will trigger sending out the Wake up notification command, press and hold the Action Button for 3 seconds, which will toggle on/off the Sensor be waked up for 10 minutes. | 6 | Additional Special Features | Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. | 1 | Inclusion | Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action Button that you can find in the back of the product. | 2 | Exclusion | Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action Button that you can find in back of the product. | 5 | Factory Reset | Press the Action Button once that you can find in back of the product for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
