Door/Window Sensor 7 – Z-Wave Alliance Product Catalog

Back to Listing

Product Recognition

Certification Number

ZC10-19076678

Name

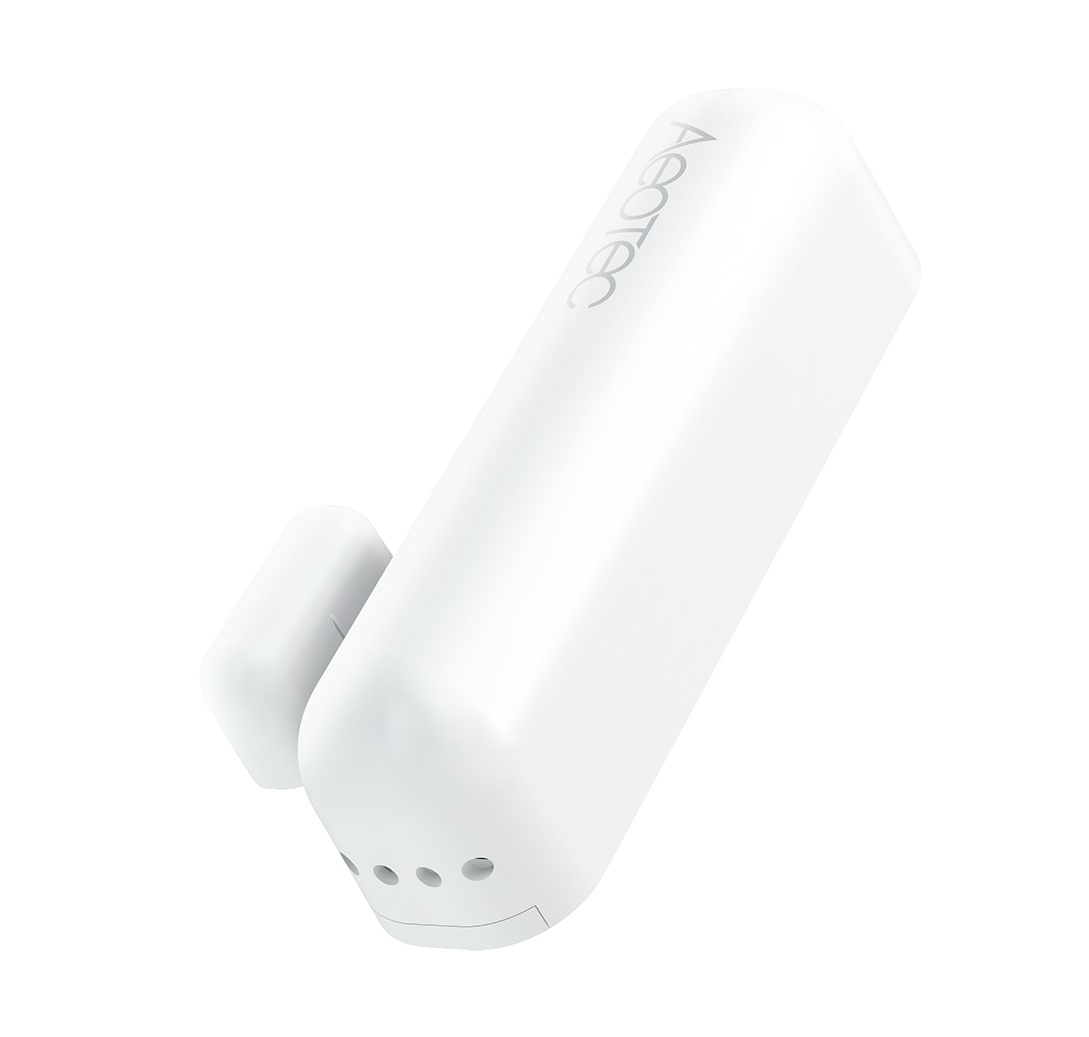

Door/Window Sensor 7

Short Description

Z-Wave Door/ Window Sensor 7.

Long Description

Aeotec Door/ Window Sensor 7 is a small window position sensor for your smart home, it monitors window and their exact opening position and lets your know when a window is tilted or completely opened. It also supports connecting external binary sensors through the dry binary contact of the Door/ Window sensor.

Brand

Aeotec

Product Identifier

ZWA008-B

OEM Version

HW: 1 FW: 1.00

Hardware Platform

ZM5101

Z-Wave Version

6.81.01

Library Type

SLAVE_ENHANCED_232

Device Type

Notification Sensor

Role Type

ROLE_TYPE_SLAVE_SLEEPING_REPORTING

Manufacturer ID

0x0371

Product Type ID

0x0202

Product ID

0x0007

User Icon

0x0C06

Installer Icon

0x0C00

Frequency Plans

ANZ: 919.80MHz, 921.40MHz

Categories

Sensors

Countries / Regions

Australia

Supported Command Classes

Identifier	Name	Key	Version
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4	Firmware Update Meta-Data V4	0x7A	4
COMMAND_CLASS_POWERLEVEL	Powerlevel	0x73	1
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3	Multi-Channel Association V3	0x8E	3
COMMAND_CLASS_BATTERY	Battery	0x80	1
COMMAND_CLASS_CONFIGURATION	Configuration	0x70	1
COMMAND_CLASS_SENSOR_BINARY_V2	Sensor Binary V2	0x30	2
COMMAND_CLASS_TRANSPORT_SERVICE_V2	Transport Service V2	0x55	2
COMMAND_CLASS_WAKE_UP_V2	Wake Up V2	0x84	2
COMMAND_CLASS_DEVICE_RESET_LOCALLY	Device Reset Locally	0x5A	1
COMMAND_CLASS_ZWAVEPLUS_INFO_V2	Z-Wave Plus Info V2	0x5E	2
COMMAND_CLASS_ASSOCIATION_V2	Association V2	0x85	2
COMMAND_CLASS_ASSOCIATION_GRP_INFO	Association Group Info	0x59	1
COMMAND_CLASS_NOTIFICATION_V8	Notification V8	0x71	8
COMMAND_CLASS_SECURITY_2	Security S2	0x9F	1
COMMAND_CLASS_VERSION_V3	Version V3	0x86	3
COMMAND_CLASS_CENTRAL_SCENE_V3	Central Scene V3	0x5B	3
COMMAND_CLASS_SUPERVISION	Supervision	0x6C	1
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2	Manufacturer Specific V2	0x72	2

S2 Classes

S2_UNAUTHENTICATED

Documents

Category	Description	File
Manual_Primary_Lang	Product or Owner's Manual	User manual - Aeotec Door Window Sensor 7 ZWA008.pdf

Features

Feature

Values

Battery Quantity

Value
1

Battery Type

Value
1/AA

Color

Value
White

Firmware Updatable

Value
Updatable by Consumer by RF

Sensors

Value
Open/Closed (Binary)

Supported Notification Types

Value
Access Control
Home Security
Power Management

Association Groups

Group Number	Maximum Nodes Supported	Description
1	5	Z-Wave Plus Lifeline
2	5	Control devices when magnet or external dry contacts trips
3	5	Sends our alarm message when magnet controlled or external dry sensor trips.
4	5	Sends alarm messages when tamper is tripped

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Sensor Operation Mode

This parameter defines if the internal magnet sensor or the external terminal input is detected and used to issue alarm notification. There is always one input active only. The other sensor input the deactivated.

From	To	Description
0	0	Internal Magnet Sensor Used
1	1	External Terminal Inputs Used

Sensor State Polarity

This parameter defines the polarity of the magnet sensor.

From	To	Description
0	0	Closed when Magnet in proximity
1	1	Opened when Magnet in proximity

Range Test after double click

Allows to enable the activation of a Z-Wave range test with double clicking the tamper switch.

From	To	Description
0	0	Disabled
1	1	Enabled

2nd Association Group Trigger

his parameter defines the status of the magnet switch that causes sending a BASIC command to all devices of Association Group 2.

From	To	Description
0	0	Switch after ‘Open‘ and ‘Close‘
1	1	Switch after ‘Open‘
2	2	Switch after ‘Close‘

Command Sent to Devices of Association Group 2

This parameter defines which commands is sent to 2nd Association Group

From	To	Description
0	0	On
1	1	Off
2	2	On and Off

BASIC command value sent to 2nd Association Group on ‘On‘ event

This is the BASIC command value sent in case of ‘On‘ event.

-1

From	To	Description
-1	-1	Value
0	99	Value

BASIC command value sent to 2nd Association Group on ‘Off‘ event

This is the BASIC command value sent in case of ‘Off‘ event.

From	To	Description
-1	-1	Value
0	99	Value

Time Delay of ‘Off‘ command frame

Off command is sent after a delay defined in this parameter.

From	To	Description
0	32400	seconds

Time Delay of ‘Off‘ command frame

Off command is sent after a delay defined in this parameter.

From	To	Description
0	32400	seconds

Delay of Tamper Alarm Cancellation

Time a tamper alarm is delayed.

From	To	Description
0	32400	seconds

Texts

ID	Description	Value
4	Device Wake-Up	A single click on the tamper button will wakeup the device.
6	Additional Special Features	It supports connecting external sensor. E.g. Dry Contact Sensor, Water Sensor probes.
1	Inclusion	Tripple clicking the tamper button includes (adds) the device.
2	Exclusion	Tripple clicking the tamper button excludes (removes) the device.
5	Factory Reset	This device also allows to be reset without any involvement of a Z-Wave controller. This procedure should only be used when the primary controller is inoperable. Once Cover is removed and tamper switch is tripped, push the tamper for 5 seconds until red LED blinks. Then release tamper and push it again for 5 seconds until LED blinks.

Supported Notification Types

Notification Type	Event / State
Access Control	(Refer to parameters): State idle
Home Security	(Refer to parameters): State idle
Power Management	(Refer to parameters): State idle

Supported Multilevel Sensors

Multilevel Sensor Type
General purpose

Supports NWI

Yes

Supports Explorer Frames

Yes

Radio Range Z-Wave (m)
