Door-/Window Sensor Bypass

Short Description

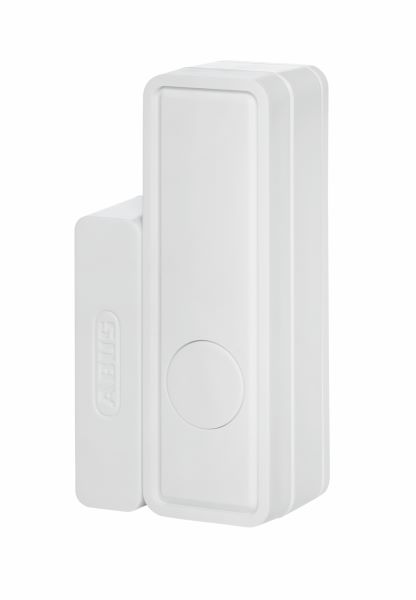

The bypass opening detector is mounted on the door or window to signal opening/closing.

Long Description

The bypass opening detector is mounted on the door or window to signal opening/closing. The bypass button allows the alarm to be temporarily bypassed, e.g. for a smoking break, if the alarm is activated internally. The sabotage contact remains active. The integrated magnetic field sensor technology is more reliable than conventional reed contacts.

Brand

ABUS

Product Identifier

PLMK10100

Product Line

Performance Line

OEM Version

HW: 1 FW: 1.69

Hardware Platform

ZGM130

Z-Wave Version

7.12.2

Library Type

SLAVE_ENHANCED_232

Device Type

Notification Sensor

Role Type

ROLE_TYPE_SLAVE_SLEEPING_REPORTING

Manufacturer ID

0x0403

Product Type ID

0x0002

Product ID

0x0006

User Icon

0x0c06

Installer Icon

0x0c06

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Security Systems

Countries / Regions

European Union

Supported Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Association Groups

Configuration Parameters

Texts

ID	Description	Value
8	Where to find S2 DSK on product	The DSK code (Device-Specific-Key) is the device-specific key of your device and is required for secure teach-in (inclusion) via S2 at the gateway. The first 5 digits of the DSK code can be found on the QR Code on the right side of the product. Please enter them in the inclusion process when prompted. Alternatively, you can transfer the entire DSK code that you find on the enclosed DSK card to the gateway via QR Code Scan. Please keep the DSK card in a safe place!
1	Classic Inclusion	Activate the inclusion mode (teach-in mode) on the gateway. (for more details, refer to the operating instructions of the gateway) Or, in your Z-Wave app, press the "+" button (Add / Inclusion) and follow the instructions to set the gateway to inclusion mode. Keep the device within range of the gateway. Remove the safety strip from the battery compartment. We recommend using only the original Duracell battery supplied. Then press the Link button 3 times quickly (within 1.5 seconds) using the pin to start the inclusion on the device. The LED starts flashing green for up to 60 seconds The successful inclusion is displayed in the app or on the gateway and the status LED on the device lights green for 2 seconds. Repeat the inclusion process if it was not successful. If a new attempt fails as well, first carry out a factory reset on the device, see 2.5.
2	Classic Exclusion	Activate the exclusion mode on the gateway. (for more details, refer to the operating instructions of the gateway) Press the "-" button (Remove / Exclusion) in your Z-Wave app and follow the instructions to set the gateway to Exclusion mode. Using the pin, press the Link button 3 times quickly (within 1.5 seconds) to start the exclusion on the device. The LED starts flashing red for up to 60 seconds The successful exclusion is displayed in the app or on the gateway and the status LED on the device lights up red for 2 seconds.
4	Wake-Up Procedure	Press the Link button once to wake up the device. It will then establish a connection to the Z-Wave gateway and transmit the current status.
5	Factory Reset Procedure	Press and hold the Link button for at least 5 seconds. Release the button when the red LED stops blinking and lights up continuously. The device is now reset to factory settings. Hint: This procedure should only be used if the primary gateway is not capable of acting. If the device is set to factory default, the status is set to "not included" and the association settings and possible configurations are reset to default.

Supported Notification Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes
