Product Recognition
Certification Number
ZC08-13030003
Name

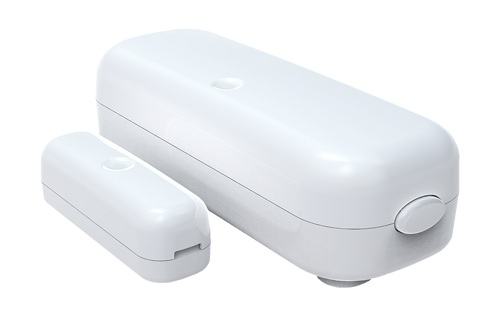

Door Window Sensor G2
Long Description
We always think of tools in our house as ‘doing things’. Switches turn lights on. Remotes turn TVs off. Things do the basic stuff we tell them to – nothing more, nothing less. That’s a description of a house of the past. The house of today has intelligence built in. Or at least it should. Inspired by the humble thermostat, Aeotec’s Z-Wave Door & Window Sensor sits as a part of our Intelligence range. Like a thermostat, we’ve designed it to find things out, to understand things about your home, and to then use that information to make your home more comfortable, to make your life easier. The Door & Window Sensor finds out something very simple – whether a door or a window, or in fact any object in your home, is open or closed. But there’s power in simplicity. Power that allows you to inform the rest of your Z-Wave network about your selected doors and windows. Like a thermostat lets your heating and cooling systems know what they should do next, Aeotec’s Z-Wave Door & Window Sensor does the same. Perhaps an open door means that your lights should turn on and welcome you home. Perhaps an open window means that an alarm should be trigged. Whatever it means to your home, with door and window sensors installed, your Z-Wave network will have both the power and the itelligence to do it.
Brand
Aeotec
Product Identifier
DSB29-ZWEU
OEM Version
v1.10
Hardware Platform
ZM3102
Z-Wave Version
4.54
Library Type
SLAVE_ENHANCED
Device Type
Not Z-Wave Plus
Manufacturer ID
0x0086
Product Type ID
0x0002
Product ID
0x001D
Frequency Plans
EU: 869.85MHz, 868.40MHz
Categories
Sensors
Countries / Regions
European Union
Controlled Command Classes
Documents
Supports NWI
Yes
Supports Explorer Frames
Yes
