Product Recognition | |
|---|
Certification Number | ZC10-18116307 |
|---|

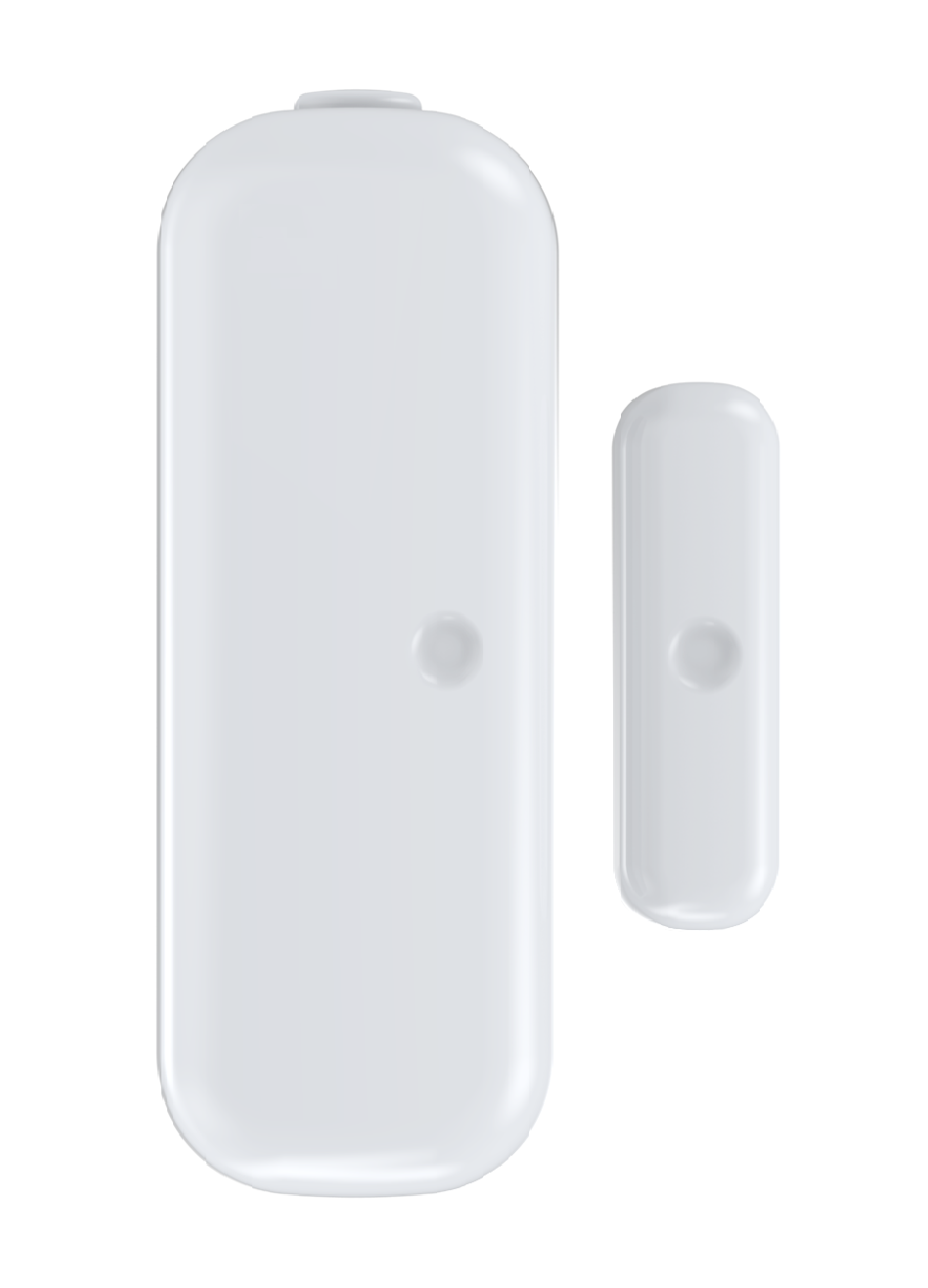

Name | Door/ Window Sensor Gen5 |
|---|
Short Description | Aeon Labs Door/ Window Sensor Gen5 is a smart Z-Wave sensor that can detect the status of door/window's open/close in real time. |
|---|
Long Description | Aeon Labs Door/ Window Sensor Gen5 is a smart Z-Wave sensor that can detect the status of door/window's open/close in real time.
It’s a security Z-Wave device that supports security encryption. Also it supports the “Over the Air Firmware Updating” that allows you wirelessly update its firmware if needs.
It can be included and operated in any Z-Wave network with other Z-Wave certified devices from manufacturers and/or other applications. |
|---|
Brand | Aeotec |
|---|
Product Identifier | ZW120-D |
|---|
OEM Version | HW: 120 FW: 1.05 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.10 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0086 |
|---|
Product Type ID | 0x0302 |
|---|
Product ID | 0x0078 |
|---|
User Icon | 0x0C06 |
|---|
Installer Icon | 0x0C06 |
|---|
Frequency Plans | HK: 919.80MHz, 919.80MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | Hong Kong |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_BINARY | Sensor Binary | 0x30 | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Notification Types | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Group 1 is assigned to the Lifeline association group and every device has 5 nodes to associate. The sensor binary report, basic set or notification report command can be sent in this group when the Sensor is triggered. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Which value of the Sensor Binary Report will be sent when the door is Opened/Closed. | To set which value of the Sensor Binary Report will be sent when the door is Opened/Closed. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | Sensor Binary Report= 0x00 when the door is closed, Sensor Binary Report=0xFF when the door is opened. | 0 | 0 | Sensor Binary Report =0xFF when the door is Closed, Sensor Binary Report= 0x00 when the door is opened. |
| 2 | Enable/disable wake up 10 minutes when re-power on the Sensor. | Enable/disable wake up 10 minutes when re-power on the Sensor. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Disable. | 1 | 1 | Enable. |
| 3 | Which value of the Basic Set will be sent when the door is Opened/Closed. | To set which value of the Basic Set will be sent when the door is Opened/Closed. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Basic Set=0xFF when the door is Closed, Basic Set=0x00 when the door is opened. | 1 | 1 | Basic Set 0x00 when the door is Closed, Basic Set= 0xFF when the door is opened. |
| 111 | Set the interval time of battery report. | Set the interval time of battery report. Note: 1, if the value is less than 10, the time unit is second. If the value is more than 10, the time unit is 4 minutes, which means if the value is more than 10 and less than 240, the interval time is 4 minutes. If the value is more than 240 and less than 480, the interval is 8 minutes. 2, if the current battery report falls below the low battery value (configurable parameter 39), it will send battery report=0xFF. | 0 | 4 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 2147483647 | The range of interval can be set to 0 to 2147483647. |
| 255 | Reset the Sensor. | Reset the Sensor. | 0 | 4 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Reset to default settings. | 1431655765 | 1431655765 | Reset to default settings and excluded from the network. |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action Button that you can find in back of the product. | 1 | Inclusion | Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action Button that you can find in the back of the product. | 5 | Factory Reset | Press the Action Button once that you can find in back of the product for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. | 4 | Device Wake-Up | Press the Action Button once, which will trigger sending out the Wake up notification command, press and hold the Action Button for 3 seconds, which will toggle on/off the Sensor be waked up for 10 minutes. | 6 | Additional Special Features | Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
