Product Recognition
Certification Number	ZC10-15110015

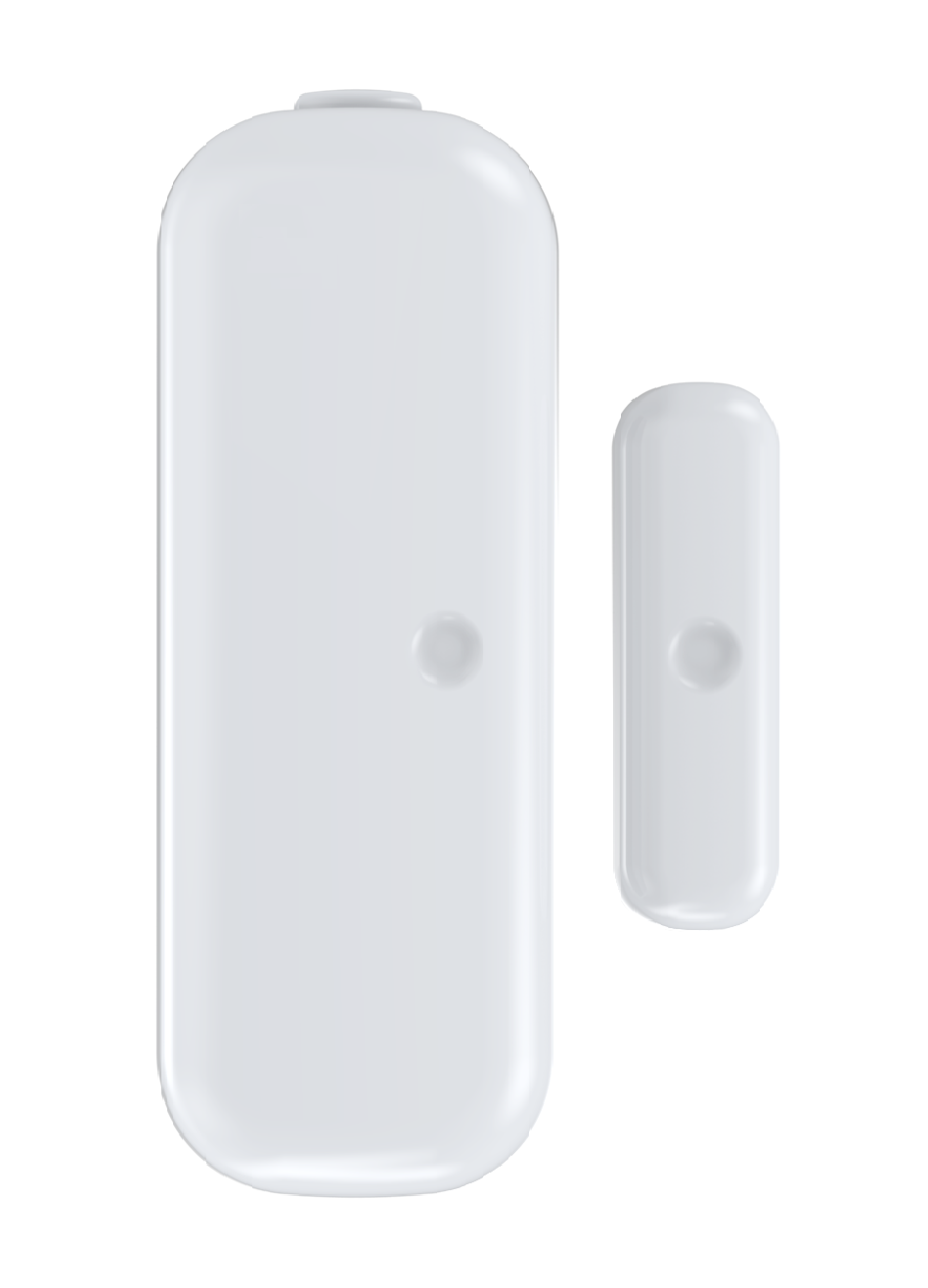

Name	Door/ Window Sensor Gen5
Short Description	Aeon Labs Door/ Window Sensor Gen5 is a smart Z-Wave sensor that can detect the status of door/window's open/close in real time.
Long Description	Aeon Labs Door/ Window Sensor Gen5 is a smart Z-Wave sensor that can detect the status of door/window's open/close in real time. It’s a security Z-Wave device that supports security encryption. Also it supports the “Over the Air Firmware Updating” that allows you wirelessly update its firmware if needs. It can be included and operated in any Z-Wave network with other Z-Wave certified devices from manufacturers and/or other applications.
Brand	Aeotec
Product Identifier	ZW120-A
OEM Version	HW: 78 FW: 1.05
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0086
Product Type ID	0x0102
Product ID	0x0078
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Door Window Sensor Gen5 manual.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Group 1 is assigned to the Lifeline association group and every device has 5 nodes to associate. The sensor binary report, basic set or notification report command can be sent in this group when the Sensor is triggered.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Which value of the Sensor Binary Report will be sent when the door is Opened/Closed. To set which value of the Sensor Binary Report will be sent when the door is Opened/Closed. 0 1 0 0 1 From To Description 0 0 Sensor Binary Report =0xFF when the door is Closed, Sensor Binary Report= 0x00 when the door is opened. 1 1 Sensor Binary Report= 0x00 when the door is closed, Sensor Binary Report=0xFF when the door is opened. 2 Enable/disable wake up 10 minutes when re-power on the Sensor. Enable/disable wake up 10 minutes when re-power on the Sensor. 0 1 0 0 1 From To Description 0 0 Disable. 1 1 Enable. 3 Which value of the Basic Set will be sent when the door is Opened/Closed. To set which value of the Basic Set will be sent when the door is Opened/Closed. 0 1 0 0 1 From To Description 0 0 Basic Set=0xFF when the door is Closed, Basic Set=0x00 when the door is opened. 1 1 Basic Set 0x00 when the door is Closed, Basic Set= 0xFF when the door is opened. 111 Set the interval time of battery report. Set the interval time of battery report. Note: 1, if the value is less than 10, the time unit is second. If the value is more than 10, the time unit is 4 minutes, which means if the value is more than 10 and less than 240, the interval time is 4 minutes. If the value is more than 240 and less than 480, the interval is 8 minutes. 2, if the current battery report falls below the low battery value (configurable parameter 39), it will send battery report=0xFF. 0 4 0 0 0 From To Description 0 2147483647 The range of interval can be set to 0 to 2147483647. 255 Reset the Sensor. Reset the Sensor. 0 4 0 0 0 From To Description 0 0 Reset to default settings. 1431655765 1431655765 Reset to default settings and excluded from the network.
Texts	ID Description Value 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action Button that you can find in the back of the product. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action Button that you can find in back of the product. 5 Factory Reset Press the Action Button once that you can find in back of the product for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. 4 Device Wake-Up Press the Action Button once, which will trigger sending out the Wake up notification command, press and hold the Action Button for 3 seconds, which will toggle on/off the Sensor be waked up for 10 minutes. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
Supports NWI	Yes
Supports Explorer Frames	Yes
