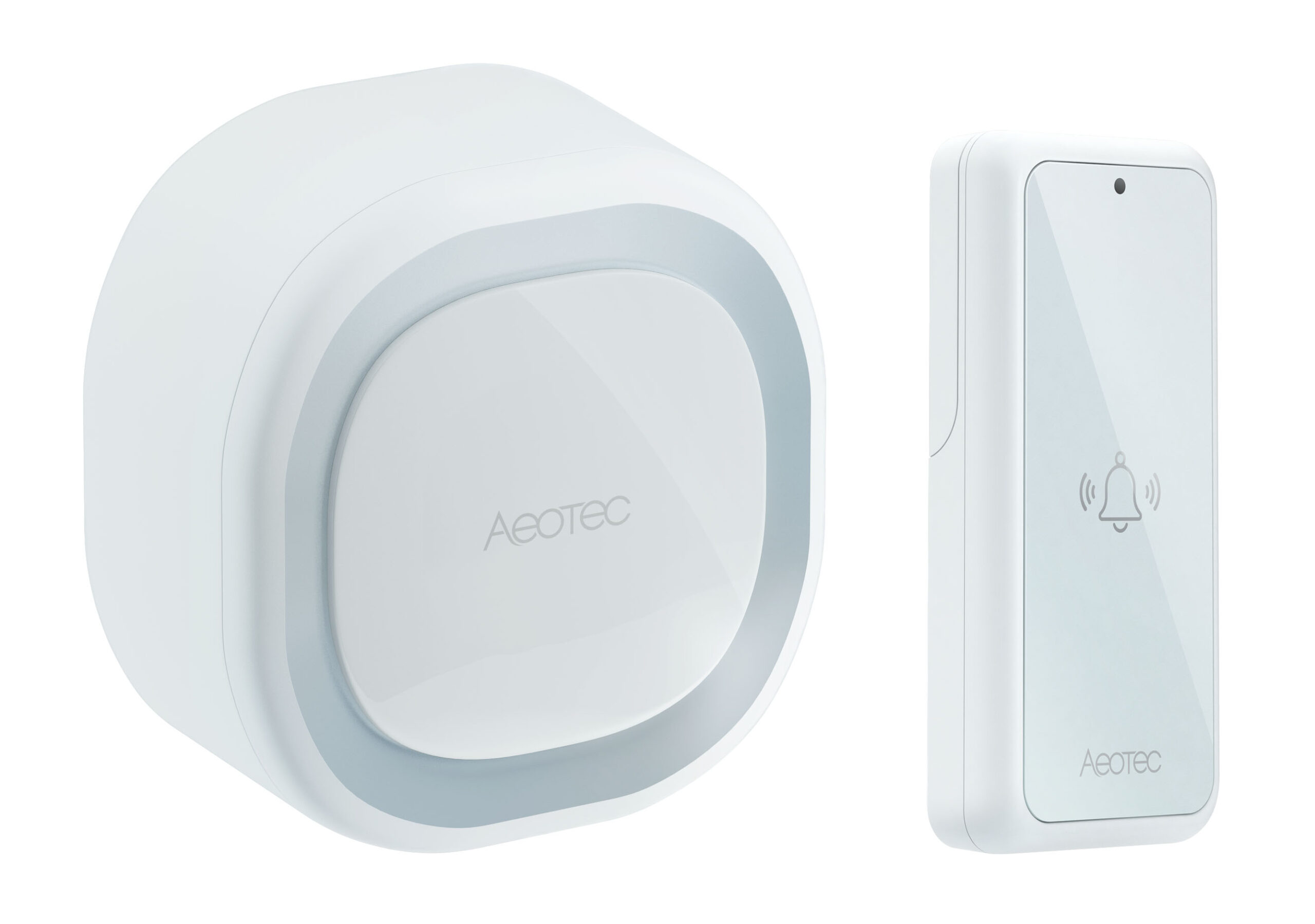

COMMAND_CLASS_SOUND_SWITCH

Sound Switch

0x79

1

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Firmware Update Meta-Data V4

0x7A

4

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_MULTI_CHANNEL_V4

Multi-Channel V4

0x60

4

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_BASIC

Basic

0x20

1

Manual_Primary_Lang

Product or Owner's Manual

Color

Supported Notification Types

Firmware Updatable

Outdoor Use

Sensors

2

5

0

Mirror of Endpoint 1, group 2. When Endpoint 1 starts playing tone or stops playing tone, Nodes associated are controlled and will receive a Basic Set CC.

3

5

0

Mirror of Endpoint 2, group 2. When Endpoint 2 starts playing tone or stops playing tone, Nodes associated are controlled and will receive a Basic Set CC.

4

5

0

Mirror of Endpoint 3, group 2. When Endpoint 3 starts playing tone or stops playing tone, Nodes associated are controlled and will receive a Basic Set CC.

5

5

0

Mirror of Endpoint 4, group 2. When Endpoint 4 starts playing tone or stops playing tone, Nodes associated are controlled and will receive a Basic Set CC.

6

5

0

Mirror of Endpoint 5, group 2. When Endpoint 5 starts playing tone or stops playing tone, Nodes associated are controlled and will receive a Basic Set CC.

7

5

0

Mirror of Endpoint 6, group 2. When Endpoint 6 starts playing tone or stops playing tone, Nodes associated are controlled and will receive a Basic Set CC.

8

5

0

Mirror of Endpoint 7, group 2. When Endpoint 7 starts playing tone or stops playing tone, Nodes associated are controlled and will receive a Basic Set CC.

1

5

0

(1) Device Reset Locally Notification, issued when Factory Reset is performed. (2) Sound Switch Tone Play Report, issued when a tone has started playing. (3) Sound Switch Configuration Report, issued when volume or default tone has changed. (4) Notification Report (Type=0x0E; Event=0x01), issued when Chime is playing tone. (5) Notification Report (Type=0x0E; Event=0x00), issued when Chime stops playing tone. (6) Notification Report (Type=0x07; Event=0x09), issued when Chime is moved. (7) Notification Report (Type=0x08; Event=0x0A), issued when Button is low battery. (8) Notification Report (Type=0x08; Event=0x00), issued when Button comes back to normal battery. (9) Configuration Report (Parameter=0x32), issued when Pairing Button Mode is triggered. (10) Configuration Report (Parameter=0x33), issued when Unpairing or Pairing Button Mode finishes.

9

5

0

Mirror of Endpoint 8, group 2. When Endpoint 8 starts playing tone or stops playing tone, Nodes associated are controlled and will receive a Basic Set CC.

1

Configure the Light Effect and Tone Play Mode for Endpoint 1(Browse).

Please refer to the Product Manual for more details.

0

4

0

0

16777216

3

Configure the Light Effect and Tone Effect for Endpoint 3(Doorbell 1).

Please refer to the Product Manual for more details.

0

4

0

0

33554433

2

Configure the Light Effect and Tone Effect for Endpoint 2(Tampering).

Please refer to the Product Manual for more details.

0

4

0

0

16777217

50

Report which Pairing Button Mode is triggered (Read Only)

Once Pairing Button Mode is triggered, node will automatically send this configuration report via Lifeline to inform which Button is waiting for being paired.

0

1

0

0

0

6

Configure the Light Effect and Tone Effect for Endpoint 6(Environment).

Please refer to the Product Manual for more details.

0

4

0

0

67108864

7

Configure the Light Effect and Tone Effect for Endpoint 7(Security).

Please refer to the Product Manual for more details.

0

4

0

0

67108864

8

Configure the Light Effect and Tone Effect for Endpoint 8(Emergency).

Please refer to the Product Manual for more details.

0

4

0

0

67108864

17

Configure #2 Light Effect.

Please refer to the Product Manual for more details.

0

4

0

0

842137603

4

Configure the Light Effect and Tone Effect for Endpoint 4(Doorbell 2).

Please refer to the Product Manual for more details.

0

4

0

0

33554433

5

Configure the Light Effect and Tone Effect for Endpoint 5(Doorbell 3).

Please refer to the Product Manual for more details.

0

4

0

0

33554433

51

Report which Buttons had been paired (Read Only)

Once Unpairing or Pairing Button Mode finishes, node will automatically send this configuration report via Lifeline to inform which Buttons had been paired. This parameter does not restore to the default value when Chime is removed from the network or reset the factory settings.

0

1

0

0

0

52

Get the information of #1 Button (Read Only)

This parameter does not restore to the default value when Chime is removed from the network or reset the factory settings.

0

4

0

0

0

53

Get the information of #2 Button (Read Only)

This parameter does not restore to the default value when Chime is removed from the network or reset the factory settings.

0

4

0

0

0

54

Get the information of #3 Button (Read Only)

This parameter does not restore to the default value when Chime is removed from the network or reset the factory settings.

0

4

0

0

0

255

Factory Reset or Initialization (Write Only)

Parameter 51/52/53/54 will not restore the configuration settings to the default when Factory Reset or Initialization is performed.

0

4

0

0

0

48

Tigger Unpairing Button Mode (Write Only)

(1) Can trigger unpairing multiple Buttons at one time. (2) User does not need to do anything to Button. (3) Indicator Light will quickly flash white light 3 times when Unpairing Button Mode finishes.

0

1

0

0

0

49

Tigger Pairing Button Mode (Write Only)

(1) Can NOT trigger pairing multiple Buttons at one time. (2) Pairing time is up to 10 seconds. In this time period, user MUST manually click Ring Button 3 times quickly. Otherwise it cannot be paired successfully. (3) Each successful pairing will overwrite the previous paired Button which has the same Button Number.

0

1

0

0

0

1

Inclusion

This product supports Security 2 Command Class. While a Security S2 enabled Controller is needed in order to fully use the security feature. This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. 1. Set your Z-Wave Controller into its 'Add Device' mode in order to add Chime into your Z-Wave system. Refer to the Controller's manual if you are unsure of how to perform this step. 2. Power on Chime via the provided power adapter; its LED will be breathing white light all the time. 3. Click Chime Action Button once, it will quickly flash white light for 30 seconds until Chime is added into the network. It will become constantly bright white light after being assigned a NodeID. 4. If your Z-Wave Controller supports S2 encryption, enter the first 5 digits of DSK into your Controller's interface if/when requested. The DSK is printed on Chime's housing. 5. If Adding fairs, it will slowly flash white light 3 times and then become breathing white light; repeat steps 1 to 4. Contact us for further support if needed. 6. If Adding succeeds, it will quickly flash white light 3 times and then become off. Now, Chime is a part of your Z-Wave home control system. You can configure it and its automations via your Z-Wave system; please refer to your software's user guide for precise instructions. Note: If Action Button is clicked again during the Learn Mode, the Learn Mode will exit. At the same time, Indicator Light will extinguish immediately, and then become breathing white light.

2

Exclusion

1. Set your Z-Wave Controller into its ' Remove Device' mode in order to remove Chime from your Z-Wave system. Refer to the Controller's manual if you are unsure of how to perform this step. 2. Power on Chime via the provided power adapter; its LED will be off. 3. Click Chime Action Button 6 times quickly; it will bright white light, up to 2s. 4. If Removing fairs, it will keep off; repeat steps 1 to 3. Contact us for further support if needed. 5. If Removing succeeds, it will quickly flash white light 3 times and then become breathing white light. Now, Chime is removed from Z-Wave network successfully.

5

Factory Reset

If the primary controller is missing or inoperable, you may need to reset the device to factory settings. Make sure the Chime is powered. To complete the reset process manually, press and hold the Action Button for at least 20s. The LED indicator will quickly flash white light 3 times and then become breathing white light, which indicates the reset operation is successful. Otherwise, please try again. Contact us for further support if needed. Note: 1. This procedure should only be used when the primary controller is missing or inoperable. 2. Factory Reset Chime will: (a) Remove Chime from z-Wave network; (b) Delete the Association setting; (c) Restore the configuration settings to the default.(Except configuration parameter 51/52/53/54)

Home Security

(Refer to parameters): State idle

Power Management

(Refer to parameters): State idle

Siren

(Refer to parameters): State idle

Siren

Siren status: Siren active

Siren

Unknown event/state

General purpose
