Product Recognition
Certification Number	ZC10-15060002

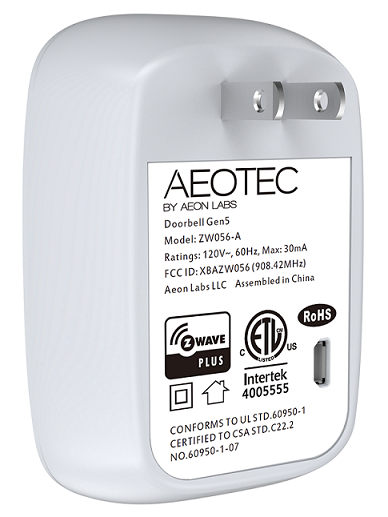

Name	Doorbell Gen5
Short Description	Doorbell Gen5 is a doorbell Z-Wave wireless device that when heard the doorbell music is playing it lets you know someone is knocking at the door.
Long Description	Aeon Labs Doorbell supports playing MP3 music files with a press of this doorbell. It has a 128MB flash memory that can store up to 800 ringtones. The volume can be adjusted manually via short press on the Volume Button, also you can switch the doorbell sound to the next via long press on the Volume Button. You may change/update your doorbell ringtone at any point in time you want by connecting your Doorbell to your PC to update the sound track on your Doorbell’s flash memory. There is a small Wireless Button, which can trigger the doorbell on the other side of the wall to play the selected doorbell music when pressed. It also act as a repeater that forward Z-Wave command messages to destination nodes if the originating controller is out of range from the destination node. By taking advantage of the Z-Wave mesh network, commands can be routed to their destination via intermediary “listening” Z-Wave products. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified devices. Also a tool that can be programmed, scheduled, controlled and communicated with from anywhere in the world.
Brand	Aeotec
Product Identifier	ZW056-A
OEM Version	HW: 38 FW: 1.11
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Siren
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0086
Product Type ID	0x0104
Product ID	0x0038
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Hospitality, Sensors
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_HAIL Hail 0x82 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Doorbell manual(20150604).pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Group 1 is assigned to the Lifeline association group and every device has 5 nodes to associate. When the Doorbell is received the commands sent by controller to be turned on or off, the Doorbell will send a basic report of its status to the nodes in association group 1. To change what kind of signal is sent to the nodes in group 1, please see the detailed description of configuration parameter 80. 2 5 0 When the Doorbell receives the Basic Set, Switch Binary Set, Switch Multilevel Start Level Change, Switch Multilevel Stop Level Change, Switch Multilevel Set commands from main controller. it will forward the Basic Set, Switch Binary Set, Switch Multilevel Start Level Change, Switch Multilevel Stop Level Change, Switch Multilevel Set to associated nodes in Group 2.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 10 Define the function of Button- or Button+. This parameter is used to define the function of Button- or Button+. 0 1 0 0 0 From To Description 0 0 Button- is defined to be the control item of Previous. Button+ is defined to be the control item of Next. 1 1 Button- is defined to be the control item of Next. Button+ is defined to be the control item of Previous. 11 Define the function of Button- and Button+ when pressing it once and long pressing it. This parameter is used to define the function of Button- and Button+ when pressing it once and long pressing it. 0 1 0 0 0 From To Description 0 0 Pressing it once, which will change the volume. Long pressing it, which will change the default ringtone. 1 1 Pressing it once, which will change the default ringtone. Long pressing it, which will change the the volume. 80 Enable/Disable to send notifications to associated devices to associated devices. This parameter is used to enable/disable to send notifications to associated devices (in Group 1) when the state of Doorbell Gen5’s load is changed. (0=Send nothing, 1=Send hail CC, 2=Send basic report CC). 0 1 0 0 0 From To Description 2 2 Send BASIC Report Command 0 0 Send Nothing (Disabled) 1 1 Send HAIL Command 81 Enable/disable to send notification to associated devices. This parameter is used to enable/disable to send notification to associated devices (In group 1) just only when the Wireless Button's battery is in low battery status. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable 241 Pair the Wireless Button with Doorbell This parameter is used to pair the Wireless Button with Doorbell. Note: 1. This procedure should only be used when the complimentary Wireless Button is missing or inoperable and you have another new Wireless Button that would be paired with your Doorbell. 2. When the pairing is started, the blue led will blink slowly, at this time, you just need to press the Wireless Button once. If the blue led change to be solid, which means the pairing is successful. Otherwise, repeat the steps. 0 4 0 0 0 From To Description 1431655765 1431655765 Start the Wireless Button pairing mode. 252 Enable/Disable Lock Configuration This parameter is used to enable/disable Lock all configuration parameters. (0 =disable, 1 = enable) 0 1 0 0 0 From To Description 1 1 All configuration parameters are not configurable (Locked). 0 0 All configuration parameters are configurable. 255 Reset to default factory setting This parameter is used to reset product to default factory setting. (There are just 2 values can be used). 0 4 0 0 0 From To Description 1431655765 1431655765 Reset the product to default factory setting and be excluded from the Z-wave network. 1 1 Resets all configuration parameters to default setting. 6 Select a ringtone to play. This parameter is used to select a ringtone to play, which is only for customer testing the doorbell ringtone. 0 1 0 0 1 From To Description 1 100 Play the specified ringtone. 0 0 Stop playing. 5 Set the default doorbell ringtone. This parameter is used to set the default doorbell ringtone. 0 1 0 0 1 From To Description 1 100 To set which ringtone number is the default ringtone. 42 Get the battery status of Wireless Button. This parameter is used to get the battery status of Wireless Button. Note: Just need to send the configuration parameter 42 Get command to Doorbell. The configuration report value will be the status of battery. 0 1 0 0 0 From To Description 0 0 The current battery status is normal battery level. 255 255 The current battery status is low battery level. 2 Set the repetitions for playing doorbell ringtone. This parameter is used to set the repetitions for playing doorbell ringtone. Note: If the time of playing doorbell ringtone is more than 20 seconds, the volume of ringtone will reduce to silence no matter how many repetitions of doorbell ringtone are set. 0 1 0 0 2 From To Description 1 100 the range of repetition is 1 to 100. 8 Set the volume of ringtone. This parameter is used to set the volume of ringtone. The volume has 10 levels can be set. Value=10, which is the max volume. Value=0, which is the min volume. 0 1 0 0 10 From To Description 0 10 The max volume is 10, the min volume is 0. 7 Control items This parameter is used to implement the control items. 0 1 0 0 0 From To Description 3 3 Implement the control item of Pause. 4 4 Implement the control item of Next. 5 5 Implement the control item of Previous. 1 1 Implement the control item of Play. 2 2 Implement the control item of Stop.
Texts	ID Description Value 3 Learn Mode (adding another controller) N/A 5 Factory Reset Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is missing or inoperable. 4 Device Wake-Up N/A 6 Additional Special Features 1. Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 2. Support doorbell music updating. 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing.
Supports NWI	Yes
Supports Explorer Frames	Yes
