Product Recognition | |
|---|
Certification Number | ZC10-17045568 |
|---|
Name | DoorSensor |
|---|
Short Description | Z-Wave Door/Window sensors are designed to secure the perimeter of the residential premise, and provide the ability to add various automation services. |
|---|

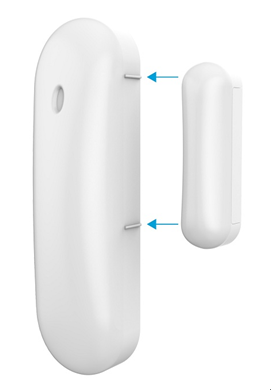

Long Description | Z-Wave Door/Window sensors are designed to secure the perimeter of the residential premise, and provide the ability to add various automation services. The Z-Wave Door/Window sensor, which consists of a magnet that attaches to a door or window, will communicate door events to the home security system. When the magnet is moved away from the sensor, a signal will be sent to the control panel that communicates the changed state to the security system. Signals can also be used to activate a chime or convenience lighting based on system settings. |
|---|
Brand | Golden Security |
|---|
Product Identifier | ZWDS01-US |
|---|
OEM Version | HW: 255 FW: 1.37 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0286 |
|---|
Product Type ID | 0x0187 |
|---|
Product ID | 0x0197 |
|---|
User Icon | 0x0C06 |
|---|
Installer Icon | 0x0C06 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SENSOR_BINARY_V2 | Sensor Binary V2 | 0x30 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Color | | Sensors | Value |
|---|
Open/Closed (Binary) |
| Supported Notification Types | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Battery Report; Notification Report; Device Reset Locally Notification; Sensor Binary Report.
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | For Adding in (Inclusion) a network: Put the Z-Wave Interface Controller into “Add (Inclusion)” mode, and following its instruction to add ZWDS01-EU to your controller. This Door/Window sensor needs to be included before installation.
1. Pull the exposed plastic tab from the sensor.
2. Press the button three times within 2 seconds, The Red LED indicator will be flashing three times to indicate scanning the network.
3. If network is not found after 30 seconds, the sensor will go into sleep mode. To Adding again, you need repeat steps 2 | 2 | Exclusion | For Removing from (Exclusion) a network: Put the Z-Wave Interface Controller into “Remove (Exclusion)” mode, and following its instruction to delete ZWDS01-EU to your Z-Wave controller.
1. Remove device front cover and pressing the button three times within 2 seconds, The Red LED indicator will be flashing three times and enter exclusion mode.
2. If remove (exclusion) successful, go auto Adding procedure.
3. Node ID has been remove. | 5 | Factory Reset | 1. Pressing the button before power on, do not release the button and power on and keep on ten seconds, and the LED will turn ON.
2. After over 1 seconds the Red LED indicator will turn OFF, then go auto Adding procedure.
3. IDs are excluded and all settings will reset to factory default.
4. Device begin auto Adding (Inclusion) mode.
Note: Use this procedure only in the event that the primary controller is lost. | 4 | Device Wake-Up | Use “Wake up” command to set up the awaking time and send the wake up notification to controller.User can use command to change the auto wake up from 1 minute to 24 hours, interval increment is 1minute. Factory default is 120 minutes. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
0x02 |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
